1.1 Introduction to Metamorphosis

1.1 Introduction to Metamorphosis

LDDMM can reach only images with same topology

Metamorphosis deforms images and adds intensity.

Making the registration of images B and C possible.

\[\partial_t I_t = \sqrt{\rho}v_t \cdot \nabla I_t\]

\[+ \sqrt{1 - \rho} z_t\]

Topology and appearances variations

Anton François - 12/02/2025

A first Example

Metamorphosis

Source

Target

LDDMM

Anton François - 12/02/2025

Metamorphosis

A Metamorphosis on \(\mathcal I\) is a pair of curves \((\varphi_t, \psi_t)\), respectively on \(G\) and \(\mathcal I\), with \(\varphi_0 = \mathrm{Id}\).

\(G\) := Space of Deformations

\(\mathcal I\) := Space of images

\(\psi_t\) is the intensity changes evolution part: \(I_t = \psi_t \circ (\varphi_t)^{-1}\)

Anton François - 12/02/2025

Strategy overview

\(G\) := Space of Deformations

\(\mathcal I\) := Space of images

How to register in practice?

1. Determine the geodesic expression by solving an exact-matching problem
2. Relax the problem with inexact matching. Optimize through geodesic shooting.

Anton François - 12/02/2025

Exact matching formulation.

Anton François - 12/02/2025

1.2 Demeter structure

1.2 Demeter structure

We minimize this cost :
$$ H_\mathrm M (I,v) = \frac1 2 \left\| I_1 - T \right\|_2^2 + \frac \lambda 2\int_0^1 \|v_t\|_V^2 + \|z_t\|_{L_2}^2  dt $$

Metamorphosis Optimisation

via Geodesic shooting

Anton François - 12/02/2025

\[\partial_t I_t = -\sqrt{\rho}v_t \cdot \nabla I_t\]

\[+ \sqrt{1 - \rho} z_t\]

Metamorphosis Optimisation

via Geodesic shooting

We minimize the inexact matching cost :
$$ H_\mathrm M (p_0) = \frac1 2 \left\| I_1 - T \right\|_2^2 + \frac \lambda 2\int_0^1 \|v_t\|_V^2 + \|z_t\|_{L_2}^2  dt $$

\(p_0\)

\(I_1\)

Step 1:

Step 2:

We iterate over two steps:

Anton François - 12/02/2025

$$\left\{\begin{array}{rl} v &= - \sqrt{ \rho } K_{V} (p \nabla I)\\          \dot{p} &= -\sqrt{ \rho } \nabla \cdot (pv) \\  z &= \sqrt{ 1 - \rho } p \\  \dot{I} &=  - \sqrt{ \rho } v_{t} \cdot\nabla I_{t} + \sqrt{ 1-\rho } z.\end{array}\right. $$

A shooting schematic

Geodesic Integration step

\(p_0\)

\(I_1\)

Anton François - 12/02/2025

Geodesic Integration step

Geodesic Integration step

Geodesic Integration step

1.3 GPU behaviour

1.3 GPU behaviour

MR Images

Volumetric images

200x200x100 voxels
= 4e6 voxels.


1voxel take 32bytes (in float32)


1 image = 128e6 bytes = 122MB

The Data I'm looking at:

A first guess about memory consumption

$$\left\{\begin{array}{rl} v &= - \sqrt{ \rho } K_{V} (p \nabla I)\\          \dot{p} &= -\sqrt{ \rho } \nabla \cdot (pv) \\  z &= \sqrt{ 1 - \rho } p \\  \dot{I} &=  - \sqrt{ \rho } v_{t} \cdot\nabla I_{t} + \sqrt{ 1-\rho } z.\end{array}\right. $$

GPU utilisation

One integration step

$$\left\{\begin{array}{rl} v &= - \sqrt{ \rho } K_{V} (p \nabla I)\\            z &= \sqrt{ 1 - \rho } p \\  \dot{I} &=  - \sqrt{ \rho } v_{t} \cdot\nabla I_{t} + \sqrt{ 1-\rho } z.\\ \dot{p} &= -\sqrt{ \rho } \nabla \cdot (pv) \end{array}\right. $$

Integration steps

Shooting forward

Image:
 80x80x100 pixels,
16e5 bytes,
48MB
x6 = 292MB

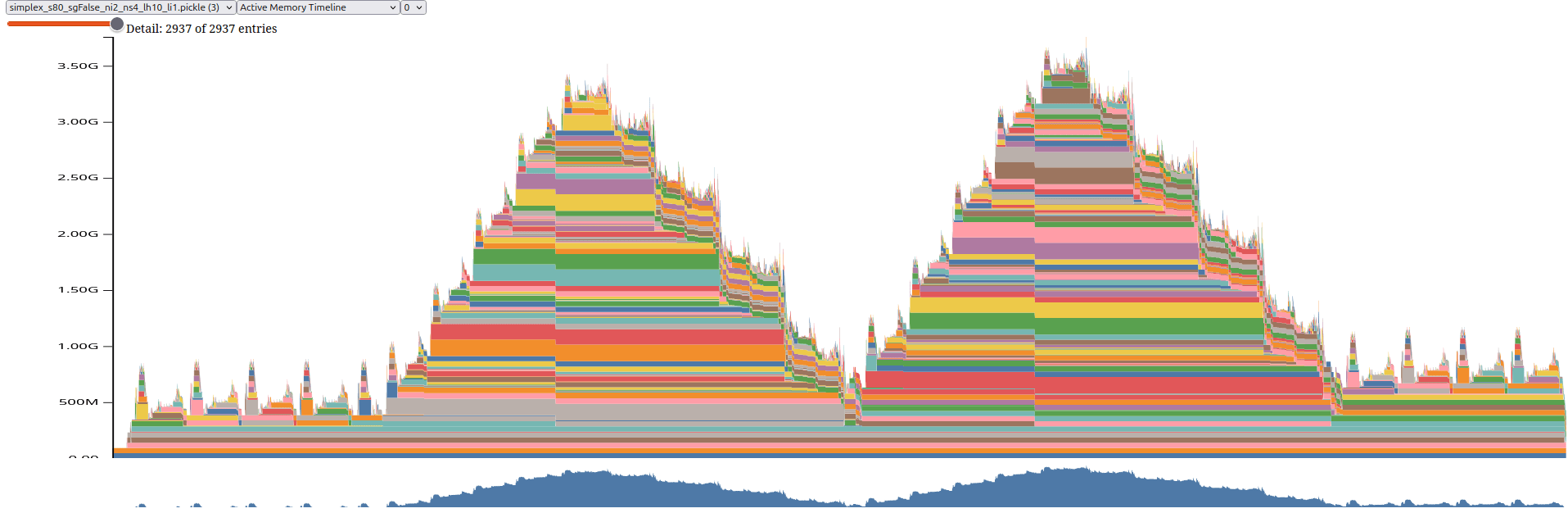

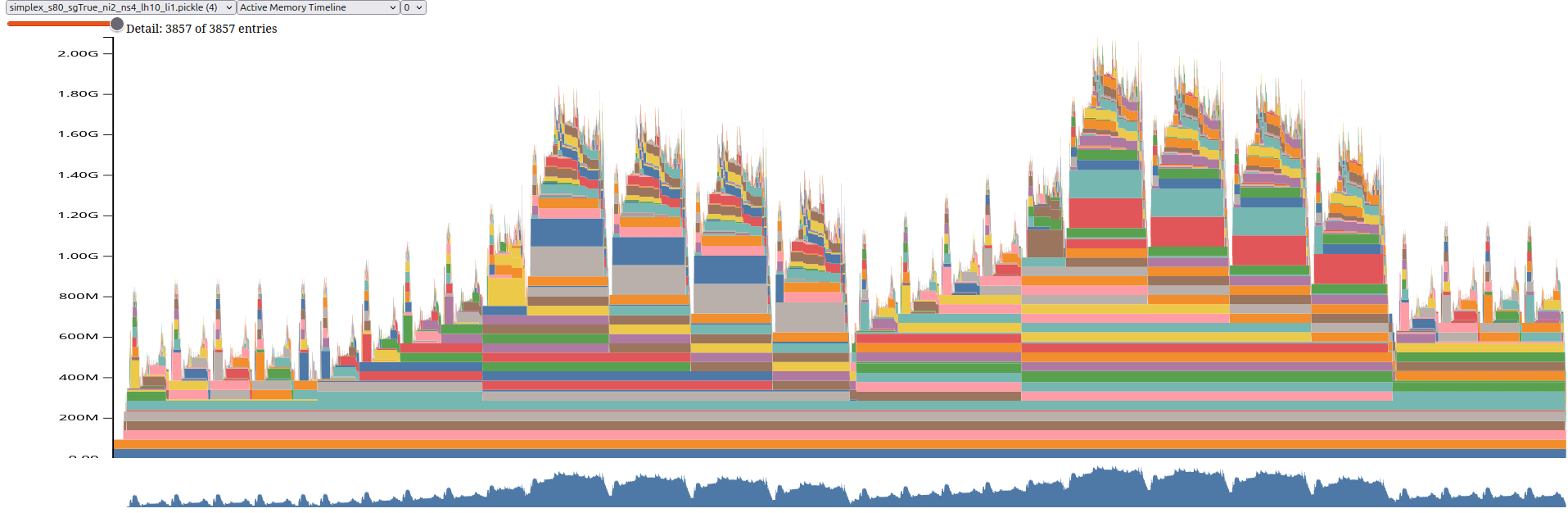

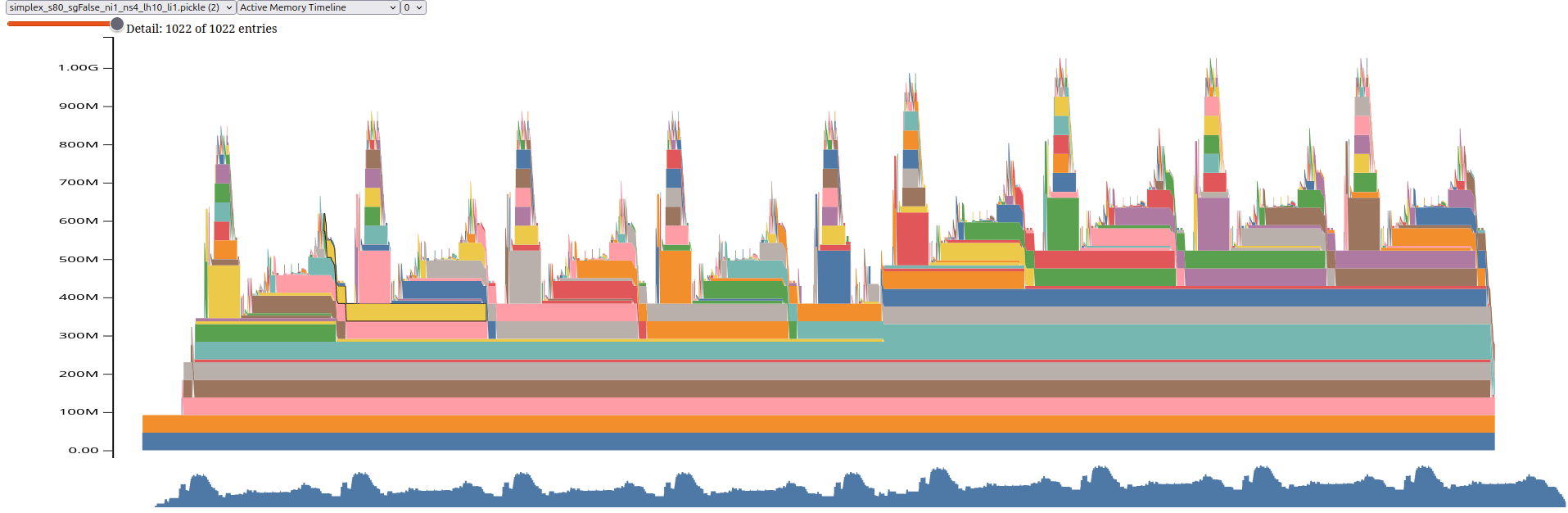

GPU utilisation

Full shooting, 4 steps

One shooting   With Backward()

Update prediction

1.4 Checkpoints

1.4 Checkpoints

torch.utils.checkpoint

Checkpoint a model or part of the model.

Activation checkpointing is a technique that trades compute for memory. Instead of keeping tensors needed for backward alive until they are used in gradient computation during backward, forward computation in checkpointed regions omits saving tensors for backward and recomputes them during the backward pass. Activation checkpointing can be applied to any part of a model.

In short, checkpointed code does not save the intermediary values in memory and must be recomputed.

Documentation

\(f(x) = (x^2 + \sin(x))^2\)

\(f(x) =  g(x)^2\) with \(g(x) = x^2 + sin(x)\)

with an indermediary function

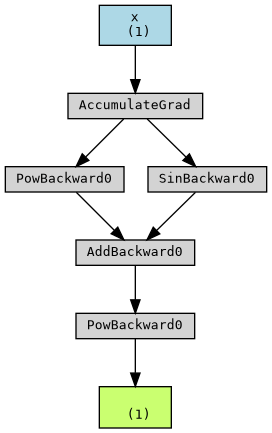

Minimal example

Let's assume that \( g \) is memory-intensive, and we create a checkpoint for it.

no checkpoint

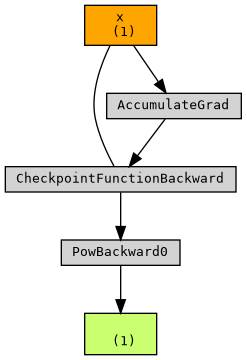

with checkpoint

Geodesic Integration step

Geodesic Integration step

Geodesic Integration step

Geodesic Integration step

checkpoint

Checkpointing strategy

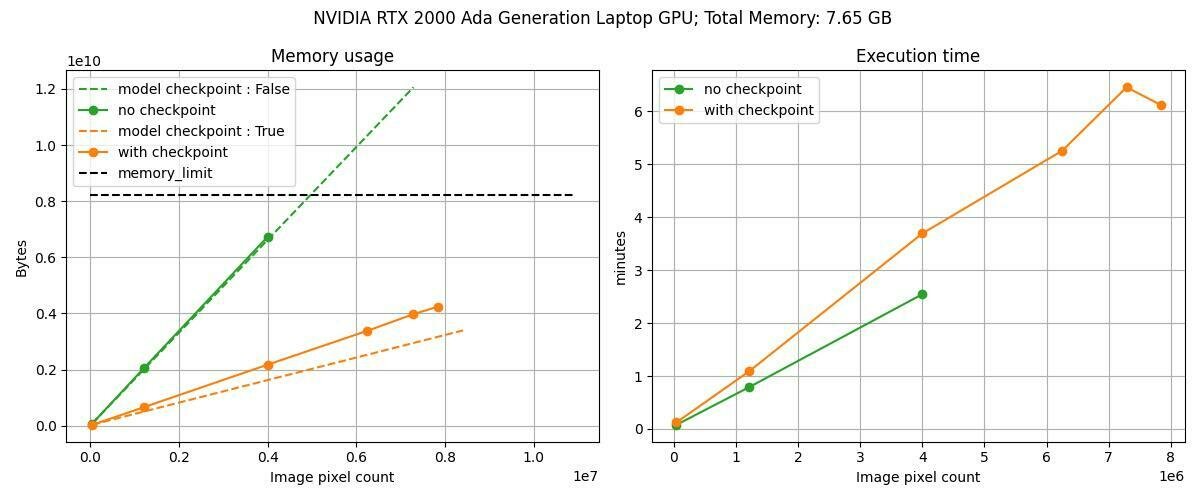

Result - Comparison

1.5 L-BFGS Optimisation

Rappel de cour

Torch implementation

class torch.optim.LBFGS()

Parameters (selection)

• max_iter (int, optional) – maximal number of iterations per optimisation step (default: 20)

• max_eval (int, optional) – maximal number of function evaluations per optimisation step (default: max_iter * 1.25).

• history_size (int, optional) – update history size (default: 100). (But it is a lot more than needed)

• line_search_fn (str, optional) – either ‘strong_wolfe’ or None (default: None). (But you should use 'strong_wolfe')

*(green text are my advise)

1.6 Modeling GPU utilisation

\(N\) := integration steps;

\(D\) := data size in bytes

\(M = \min(\text{lbfgs\_max\_iter}  \times \text{n\_iter} ,  \text{lbfgs\_history\_size})\)

Parameter estimation:

Without checkpoint:

'a': 2.61022542, 'b': 39.20531525, 'c': 14595235.0, 'r2': 0.995706

with checkpoint:

'a': 3.06239906, 'b': 8.69422842, 'c': 23337559.0, 'r2': 0.921863

\(y = (a M  + b  N)\times D + c\).

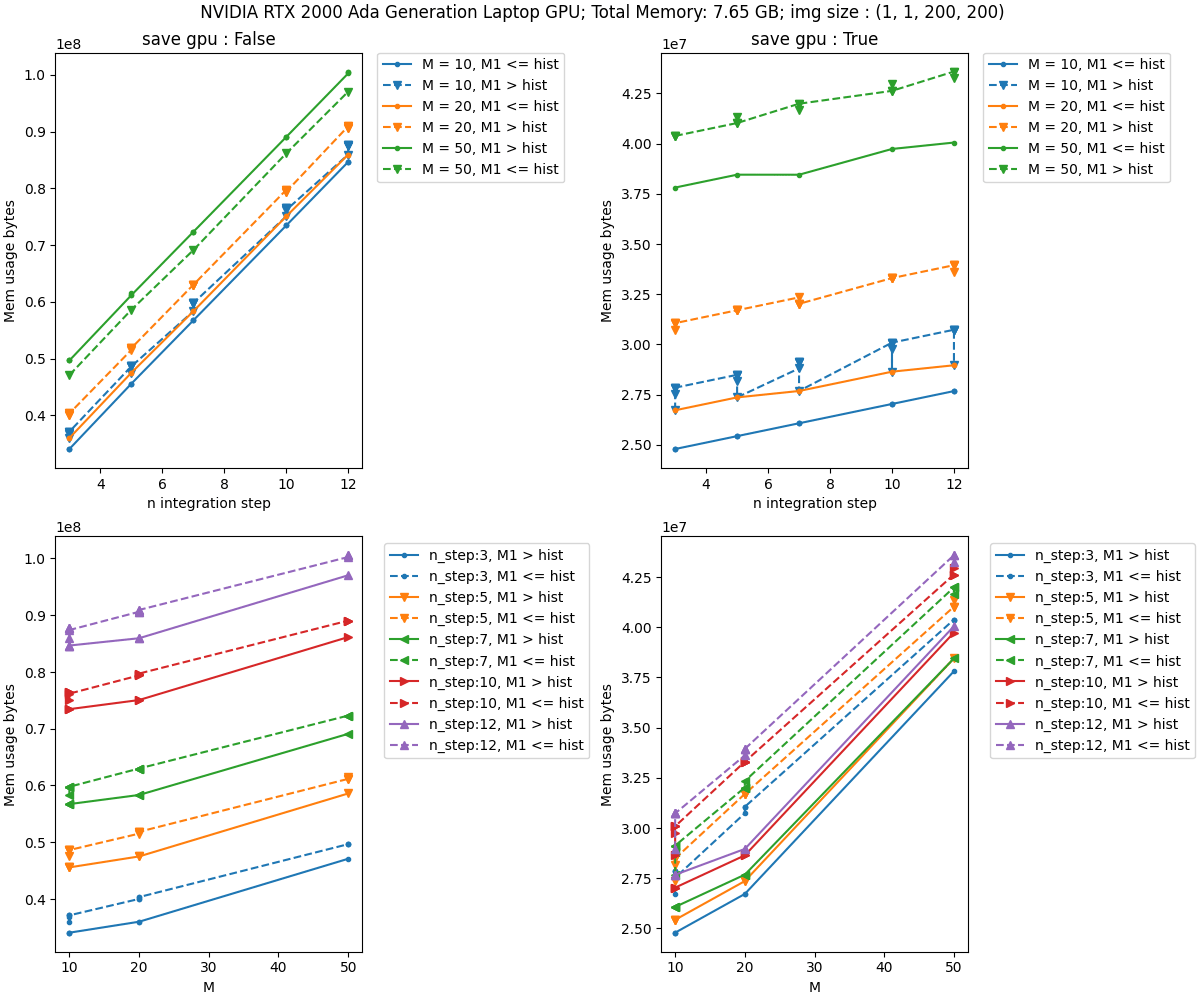

Modeling GPU memory usage

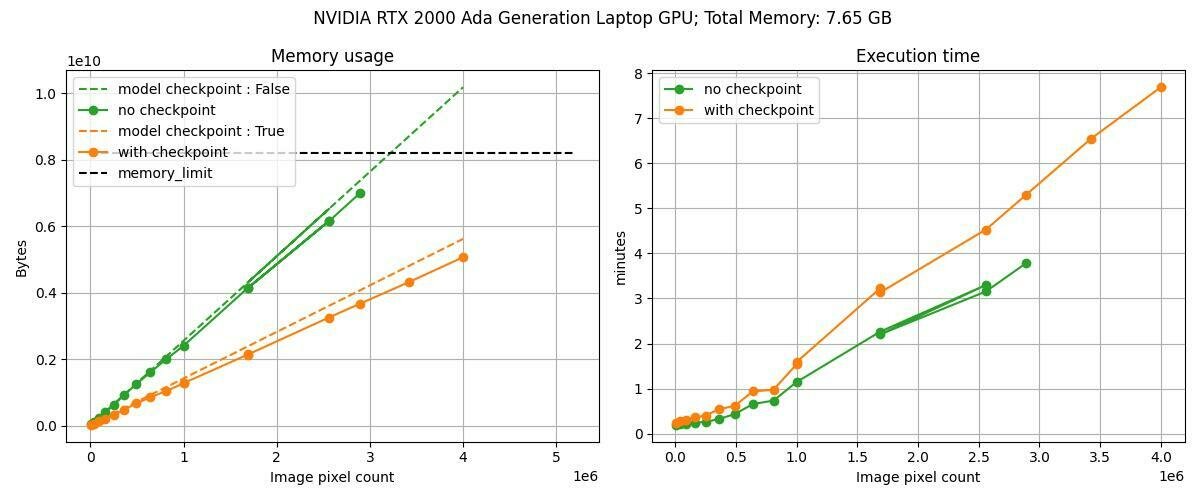

Benchmark

lbfgs_history_size = 100
lbfgs_max_iter = 20

n_iter = 10
n_step = 10

lbfgs_history_size = 10
lbfgs_max_iter = 10
n_iter = 10
n_step = 10

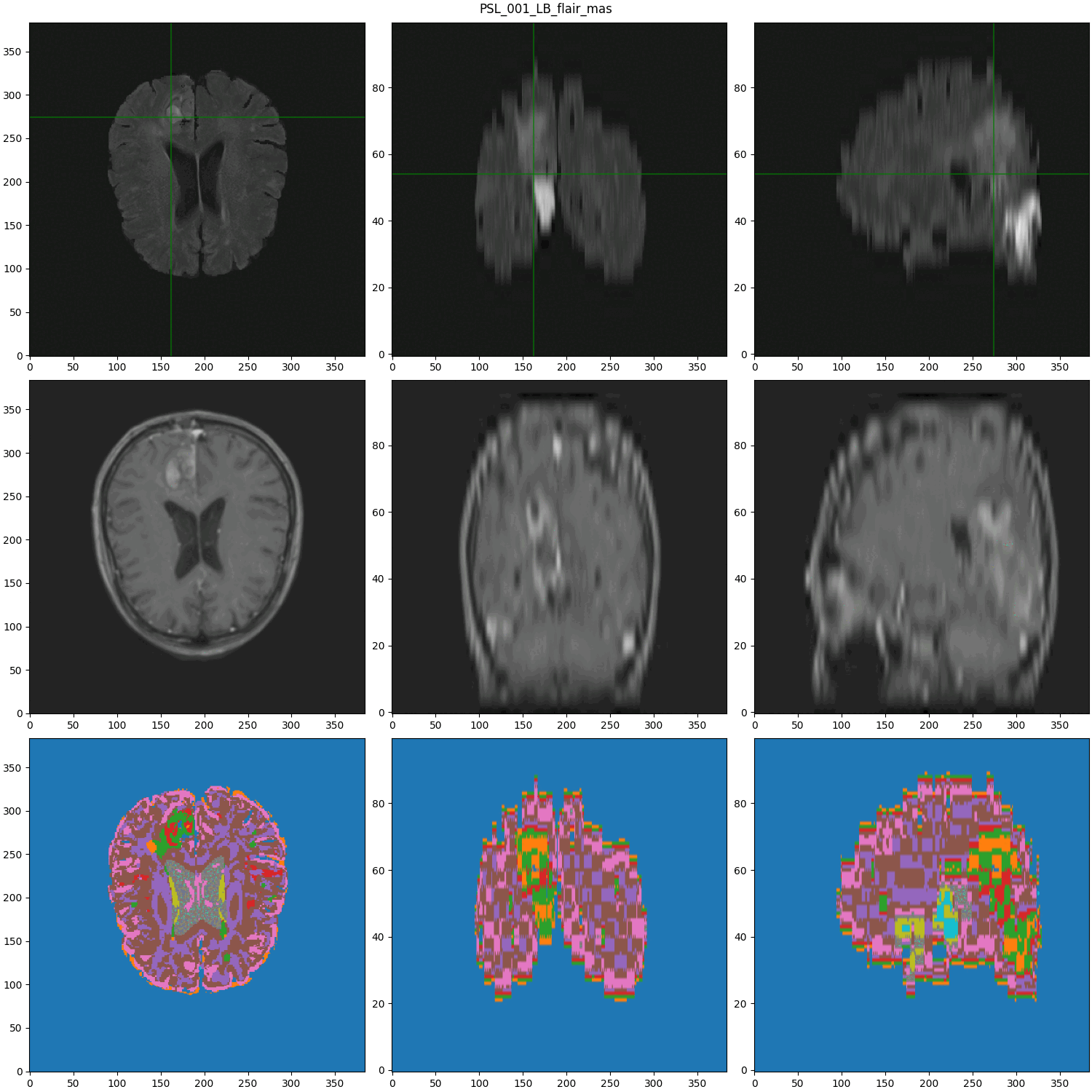

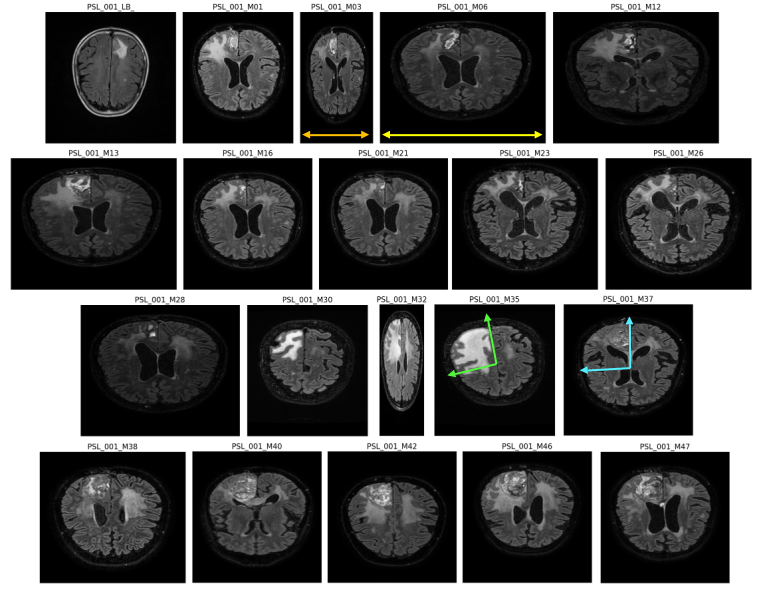

2.1 A focus on the data

Data from :

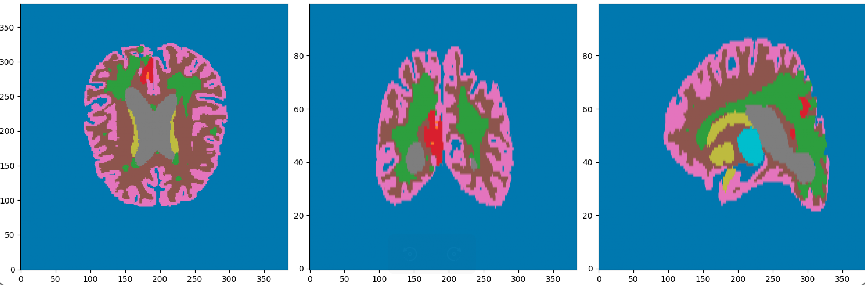

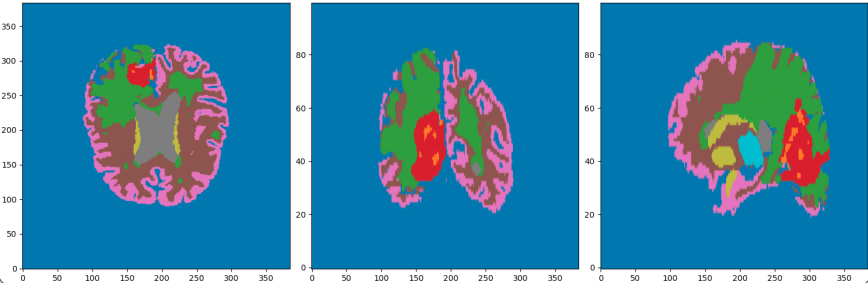

segmented MRI

Data Nature

Rigid alignment

• Cancerous Growth (red - orange)
• White Matter Intensity reallocations (orange)
• Ventricule expansion (gray)

Registration difficulties

2.1 Metamorphosis on the simplex

2.1 Metamorphosis on the simplex

Let \(q\) be the "simplex image", (\(q(x) \in \Delta^n\)) and \(\tilde q : \Delta^n \mapsto S^n = \sqrt q\) the isometry from the simplex on the sphere. We set its evolution such that:

\[\partial_t\tilde q = -\sqrt{\rho} d \tilde q \cdot v + \sqrt{1 - \rho} z;  \qquad\rho \in \mathbb R\]

Metamorphosis on the Probability simplex

Together with the constraints \(\langle z, q \rangle = 0\) and the cost functional \(C(v, z) = \frac{1}{2} \|v\|_V^2 + \frac{1}{2} \|z\|_2^2,\) we recover the Hamiltonian \(H\) defined by
\[H(\tilde{q}, p, v, z) = \langle p, \partial_t \tilde{q} \rangle - \frac{1}{2} \|v\|_V^2 - \frac{1}{2} \|z\|_2^2.\] By computing the variations of \(H\) with respect to \(\tilde{q}, p, v,\) and \(z\), we recover the associated geodesic equations.

Metamorphosis on the Probability simplex

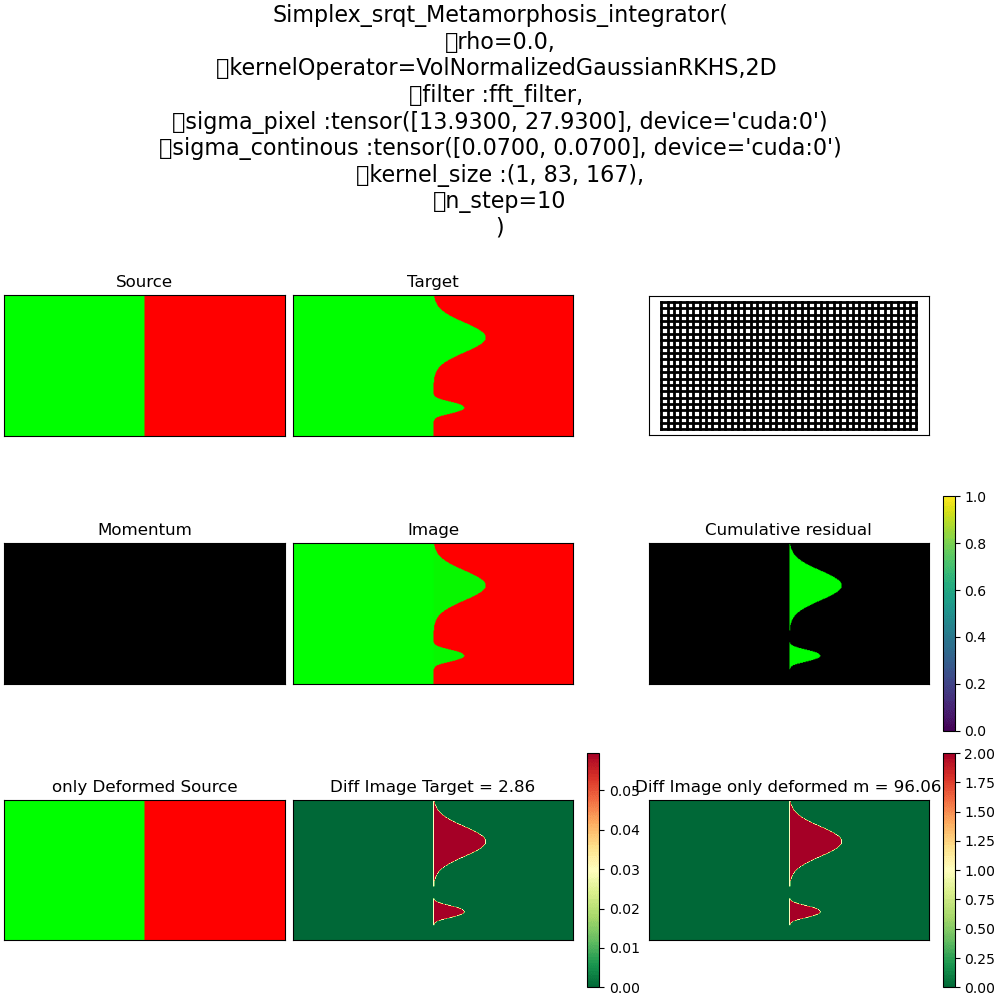

\(\rho = 1\) Pure Déformation

\(\rho = 0\) Ré-allocation

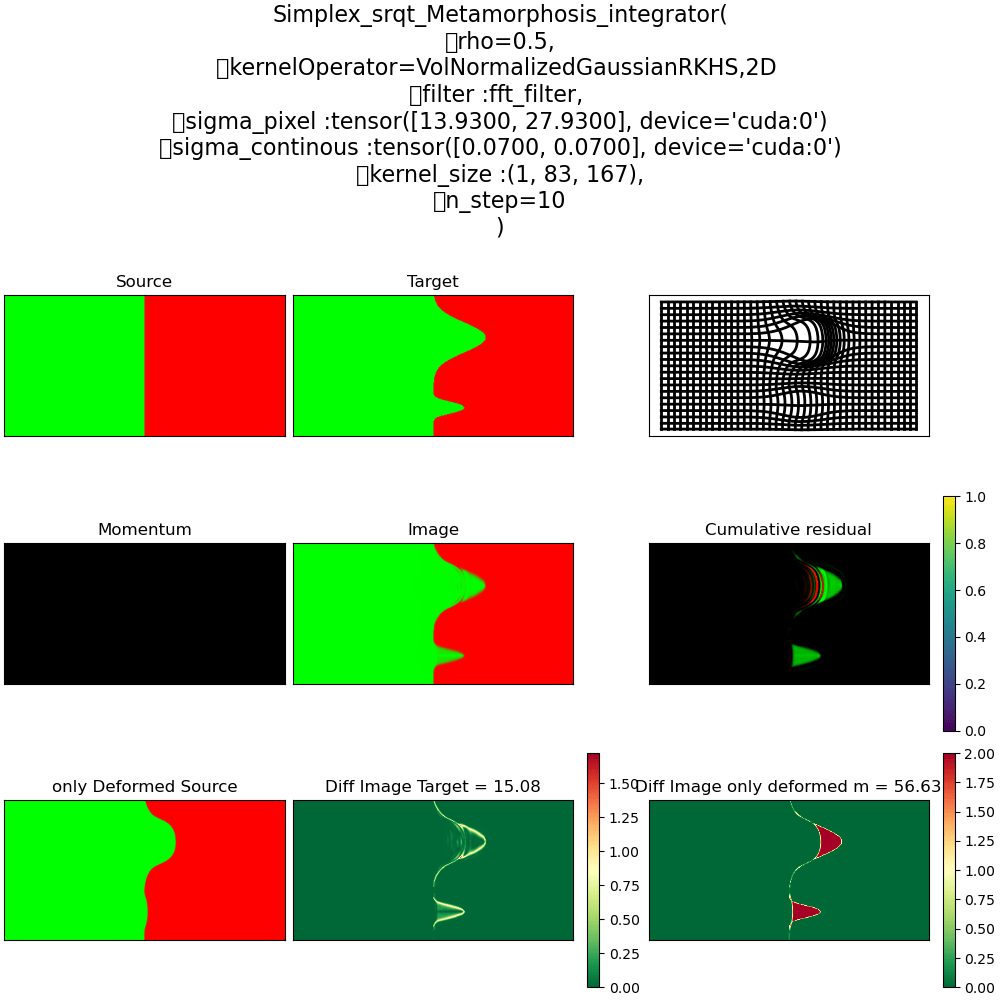

\(\rho = 0.5\) mix Déformation

2.2 Selective strategy for deformation VS Ré-allocations

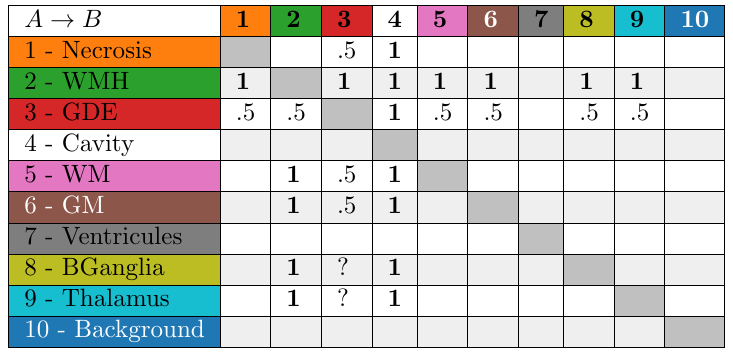

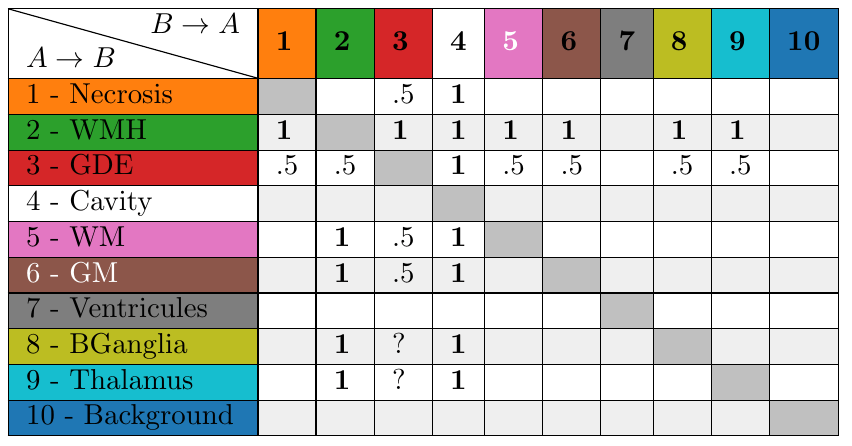

Control allocation matrix

Table with the values of \(\rho\) to transition from one class to another.

\(R =\)

\((\)

\()\)

Up to now, the evolution of the image was described by:
\[\dot{q}_t = -\sqrt{\rho} \, v_t \cdot \nabla q_t + \sqrt{1 - \rho} \, z_t., \rho \in \mathbb R\]

Let \( R \) be the control allocation matrix (CAM), such that each entry \( R(i,j) \) indicates the value of \( \rho \) for the transition from class \( i \) to class \( j \).

For \( f, g \in \Delta^d \), we define:
\[\rho(x, f, g) = \sum_{i \in \mathcal{C}} \sum_{j \in \mathcal{C}} f^i g^j R(i,j) = \left\langle f, gR \right\rangle.\]

We then introduce a new dynamics:
\[\dot{q}_t = -\sqrt{\tilde{\rho}_t} \, v_t \cdot \nabla q_t + \sqrt{1 - \tilde{\rho}_t} \, z_t,\]
where \( \tilde{\rho}_t = \rho(x, q_t, T) \).

Adapative re-allocation control

2.3 Class dependent

Weighted Metamorphosis

Our system dynamics are governed by

    \[    \left\{    \begin{aligned}        \dot{q}_t &= -\sqrt{\tilde{\rho}} \, dq_t \cdot v_t + \sqrt{1 - \tilde{\rho}} \, z_t, \\        \left\langle z_t, q_t \right\rangle &= 0, \\        C(v, z) &= \frac{1}{2} \left( \|v\|_V^2 + \|z\|^2 \right),    \end{aligned} \right. \]

with

\[\tilde \rho = \rho(x, q, T) = \sum_{i \leq d} \sum_{j \leq d} q^i T^j R(i,j) = \left\langle q, RT \right\rangle.\]

we derive the Hamiltonian

\[    H(q,p,v,z,\lambda) = \left( p \mid -\sqrt{\tilde{\rho}} \, dq_t \cdot v_t + \sqrt{1 - \tilde{\rho}} \, z \right)    - \frac{1}{2} \|v\|^2 - \frac{1}{2} \|z\|^2 - \lambda \left\langle z, q \right\rangle.\]

Hamiltonian

\[\left\{\begin{aligned}\lambda &= \frac{\left\langle \sqrt{1 - \tilde{\rho}} \, p, q \right\rangle}{\left\langle q, q \right\rangle} \\v &= -K_\sigma \ast \left( \sqrt{ \tilde{\rho} } \sum_{n=1}^{N+1} p_{n} \cdot \nabla q_{n} \right) \\z &= \sqrt{1 - \tilde{\rho}} \, p - \lambda q = \Pi_{\mathbb{R}_{q^\perp}}(\sqrt{1 - \tilde{\rho}} \, p) \\    \dot{q}_t &= -\sqrt{\tilde{\rho}} \, dq_t \cdot v_t + \sqrt{1 - \tilde{\rho}} \, z_t\\    \dot{p} &=  - \mathbf{div}(\sqrt{\tilde{\rho}} pv^T)- \left\langle p,\frac{dq(v)}{2 \sqrt{\tilde{\rho}}}+ \frac{z}{2 \sqrt{1 - \tilde{\rho}}} \right\rangle RT    - \lambda z\end{aligned}\right.\]

The geodesic equations associated to the Hamiltonian

\[    H(q,p,v,z,\lambda) = \left( p \mid -\sqrt{\tilde{\rho}} \, dq_t \cdot v_t + \sqrt{1 - \tilde{\rho}} \, z \right)    - \frac{1}{2} \|v\|_V^2 - \frac{1}{2} \|z\|_2^2 - \lambda \left\langle z, q \right\rangle.\]

are

Geodesics

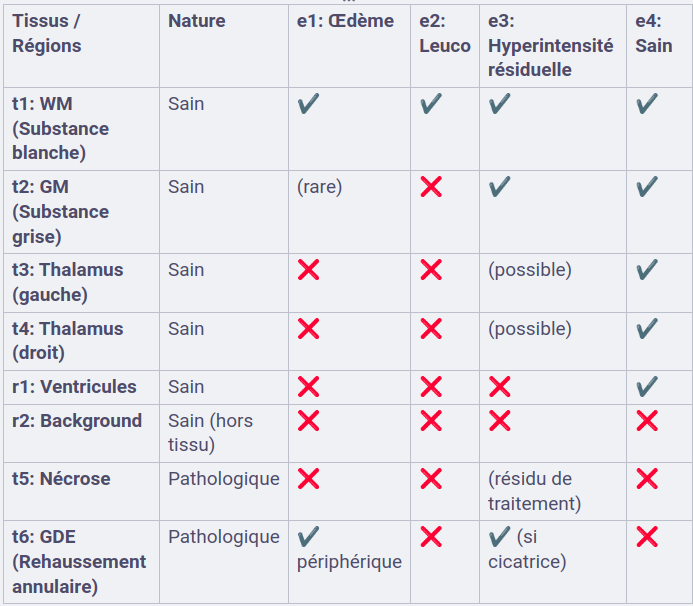

Régions

• WM (substance blanche)
• GM (Substance grise)
• Thalamus
• Ventricules
• Nécrose
• GDE (Rehaussement annulaire)
• Background

États

• Oedème
• Leucopathie
• autres Hyperintensité de T1ce
• Sain
