Introduction Capsule Networks
1
Alexander Isenko
28.11.2017
In-House presentation @ iteratec
2
Alexander Isenko
28.11.2017
Motivation
Motivation
3
Alexander Isenko
28.11.2017

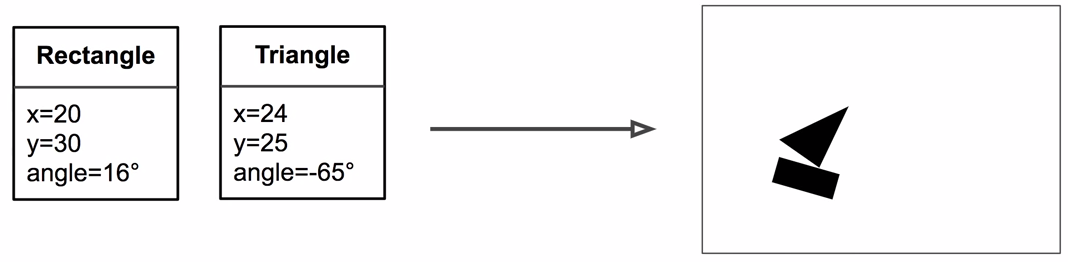

Default Graphics
Graphics
Instantiation Parameters
Rendering
4
Alexander Isenko
28.11.2017

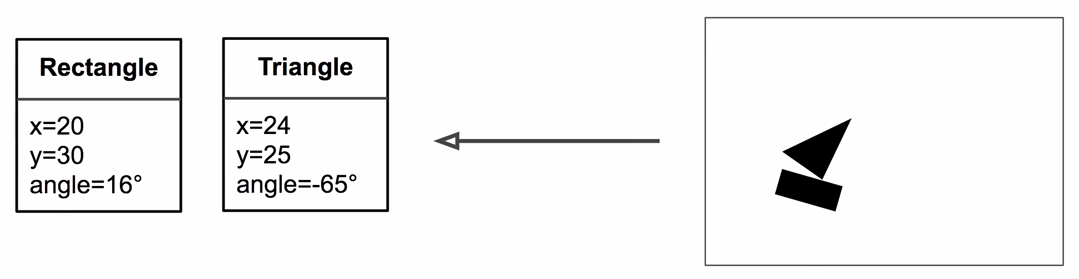

Inverse Graphics
Graphics
Instantiation Parameters
Inverse Rendering
5
Alexander Isenko
28.11.2017

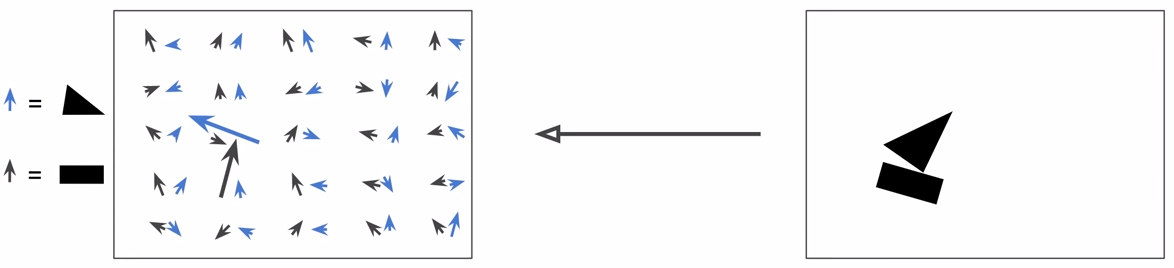

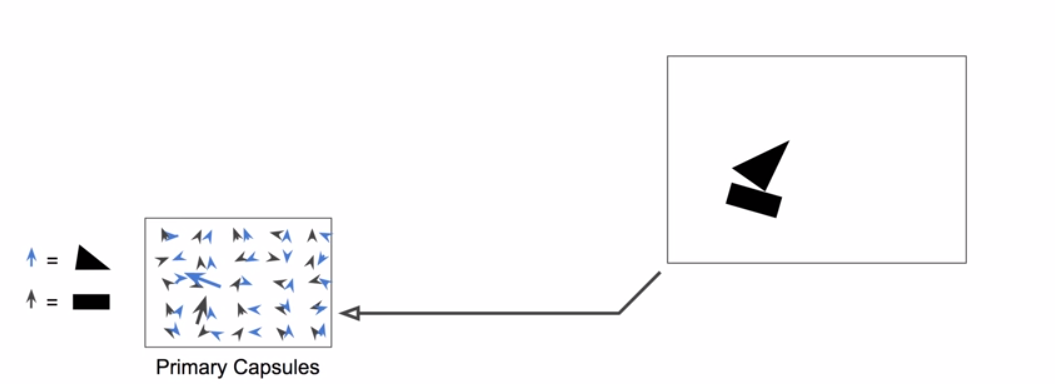

Capsule Activations
Capsules
Capsule Activations
Activation vector:
Length = estimated probability of presence
Orientation = estimated pose parameteres
1
Alexander Isenko
28.11.2017
Capsule Activations
Capsules
Capsule Activations
Squash(\textbf{u}) =
\frac{||\textbf{u}||^2}{1 + ||\textbf{u}||^2} \cdot \frac{\textbf{u}}{ ||\textbf{u}||}

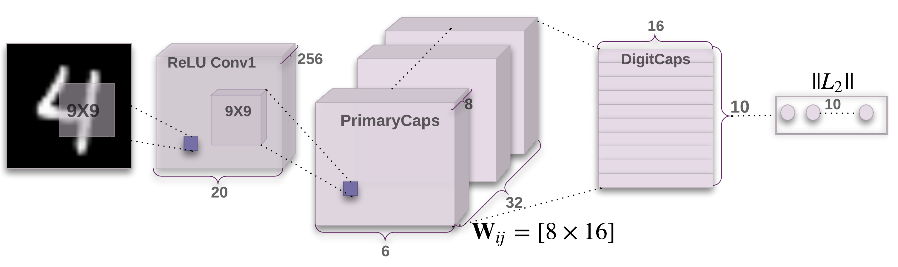

Convolutional Layers
+ Reshape
+ Squash
6
Alexander Isenko
28.11.2017
Transformation Matrix
Capsules
\hat{\textbf{u}}_{j|i} = \textbf{W}_{ij}\textbf{u}_i
\text{Transformation Matrix } \textbf{W}
7
Alexander Isenko
28.11.2017

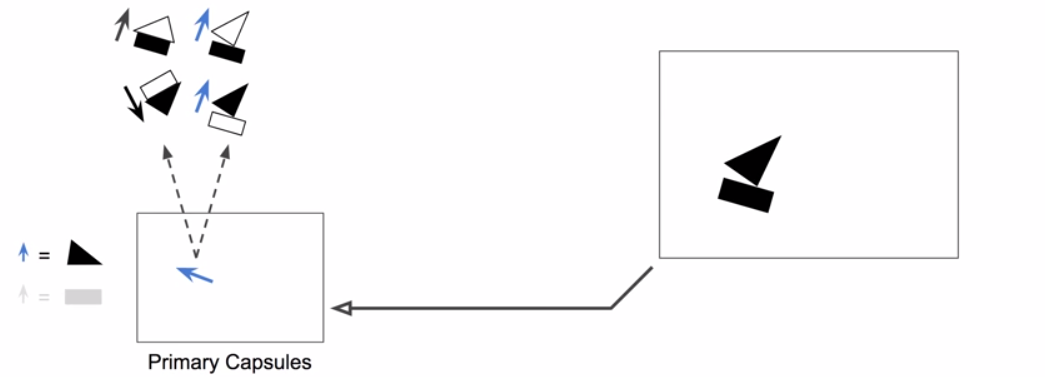

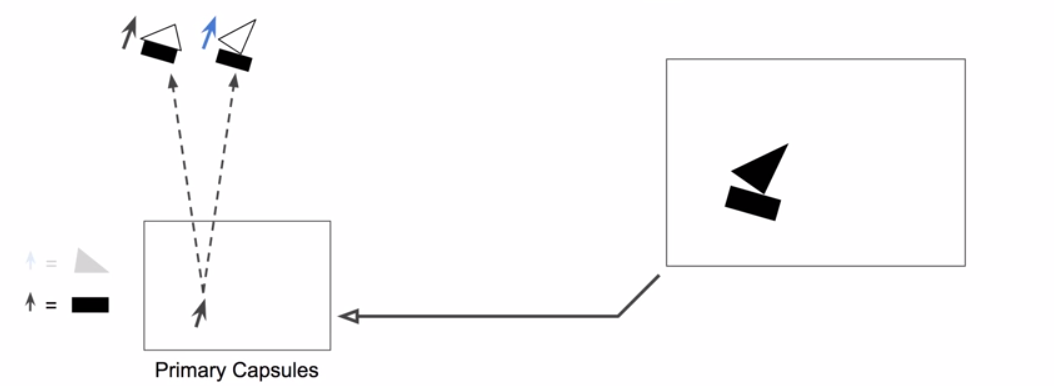

Routing by Agreement
Capsules
8
Alexander Isenko
28.11.2017
Routing by Agreement
Capsules

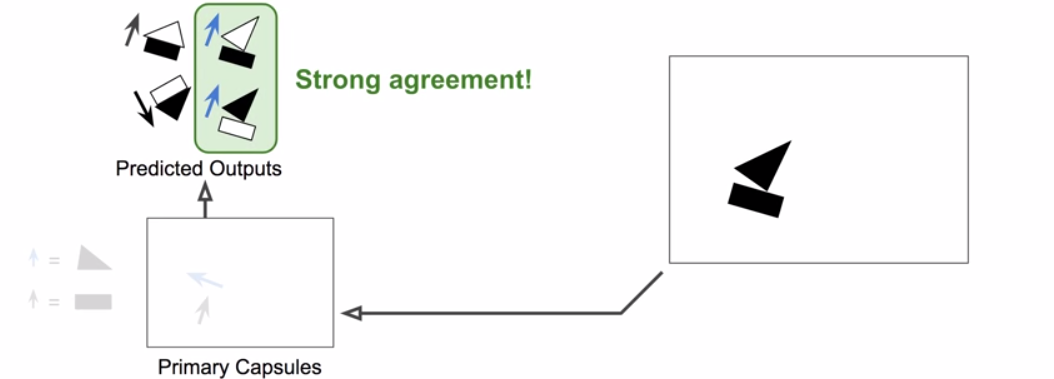

\forall i,j: b_{ij} = 0.5
\textbf{c}_{i,j} = \text{softmax}(\textbf{b}_{i,j},\textbf{b}_{i} )
0.5
0.5
0.5
0.5
\hat{\textbf{u}}_{j | i}
\hat{\textbf{u}}_{j | i}
\textbf{s}_{i,j} = \textbf{c}_{i,j} \cdot
\textbf{v}_{j} = \text{squash}( \textbf{s}_{j})
\textbf{b}_{i,j} \leftarrow \textbf{b}_{i,j} + \hat{\textbf{u}}_{j | i} \cdot \textbf{v}_{j}
Final output of #1 round
Routing coefficient
Prediction vector
Routing weights
Routing weights
0.9
0.1
0.2
0.8
9
Alexander Isenko
28.11.2017

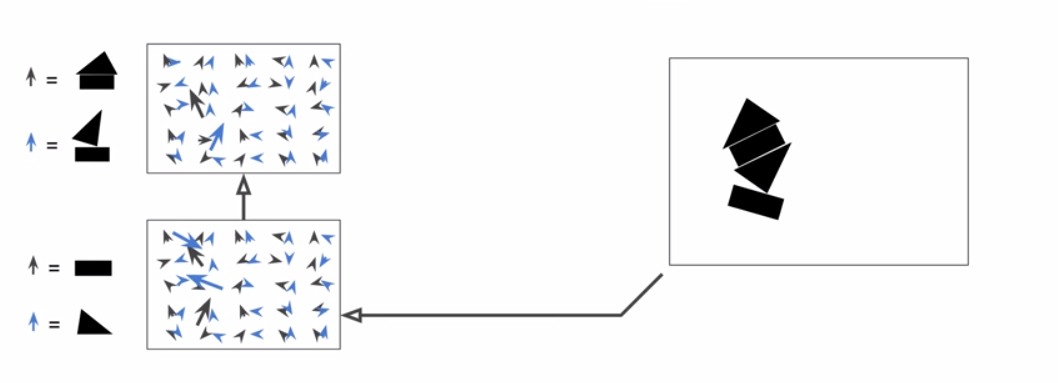

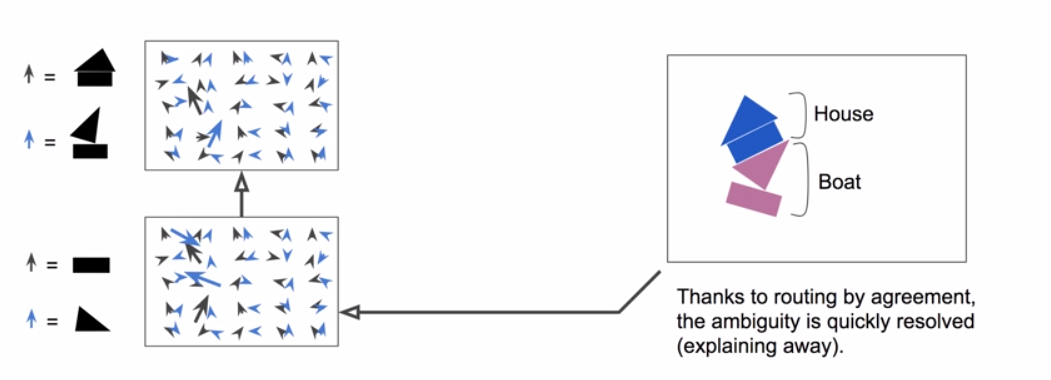

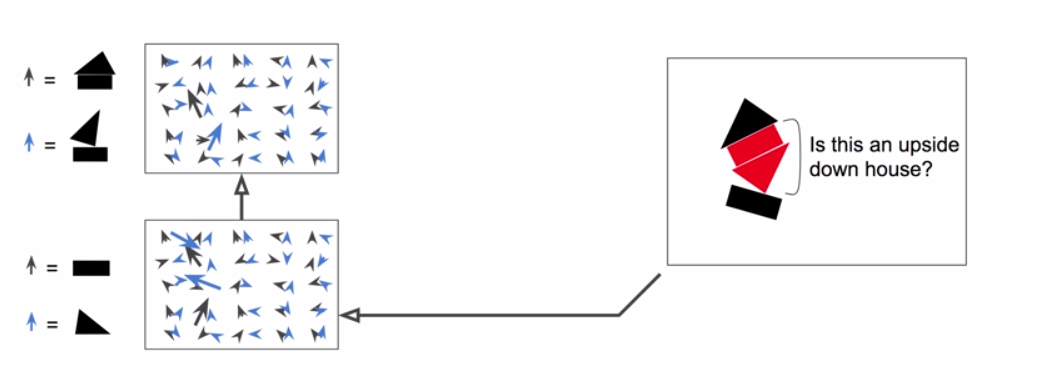

Crowded Scenes
Capsules
10
Alexander Isenko
28.11.2017
MNIST Classifier
Example
\textbf{Reconstruction} = 1, \textbf{Routing} = 1, \textbf{Error} = 0.29 \pm0.011
\textbf{Reconstruction} = 0, \textbf{Routing} = 3, \textbf{Error} = 0.35 \pm0.036
\textbf{Reconstruction} = 0, \textbf{Routing} = 1, \textbf{Error} = 0.34 \pm0.032
\textbf{Reconstruction} = 1, \textbf{Routing} = 3, \textbf{Error} = 0.25 \pm0.005
\textbf{Baseline} = 0.39
11
Alexander Isenko
28.11.2017

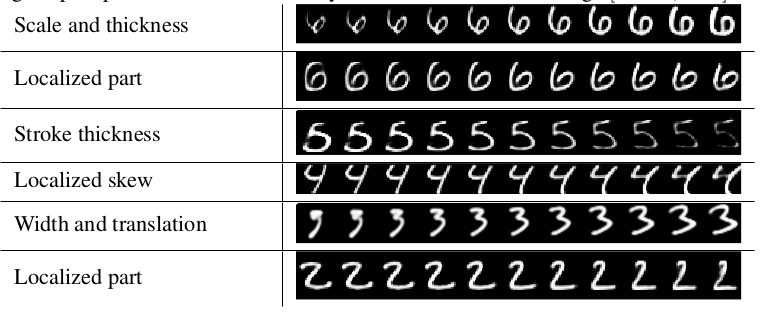

MNIST Latent Variables
Example
12
Alexander Isenko
28.11.2017
Takeaway
Pros
- Routing by agreement is an innovative concept
- allows for better classification of crowded scenes
- does not throw away information in comp. to MaxPooling
- Activation of the capsules is the vector length
- Learning the transformation matrices
- scale, rotation
- not translation, that's via low level capsules (CNN)
-
Activation vectors are interpretable

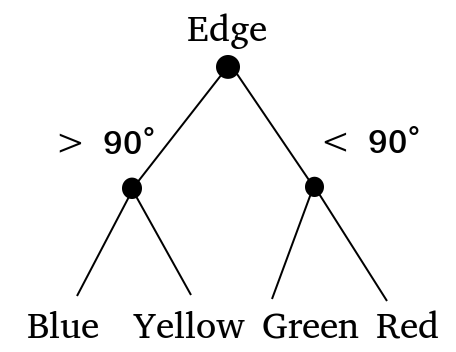

- creation of hierarchy
- Parse tree for "every fixation" point
- Requires less data
13
Alexander Isenko
28.11.2017
Takeaway
Pros
\textbf{u}_{i}
\cdot \textbf{W}_{i,j}
\hat{\textbf{u}}_{j | i}
\textbf{u}_{i}
=
\hat{\textbf{u}}_{j | i}
= squash(\textbf{s}_j)
\textbf{v}_{j}
Routing
Capsule
output
Routing coefficient
Capsule activation
Transformation Matrix
Prediction vector
c_{i,j}
\cdot \hat{\textbf{u}}_{j | i}
\textbf{s}_j
\sum
\textbf{v}_j
14
Alexander Isenko
28.11.2017
Takeaway
- CIFAR10 was not state of the art
- Does it scale? Imagenet?
- Slow training (routing agreement)
- Can't see two close objects next to each other
Cons
15
Alexander Isenko
28.11.2017
Sources
- Link to the original paper
-
Excellent youtube talk where I copied most of the slides
- Implementation links are provided in the description
- A nice blog post
