How I built my smart home solution

RRUG#31

Kamil Szubrycht

@kamilszubrycht

why?

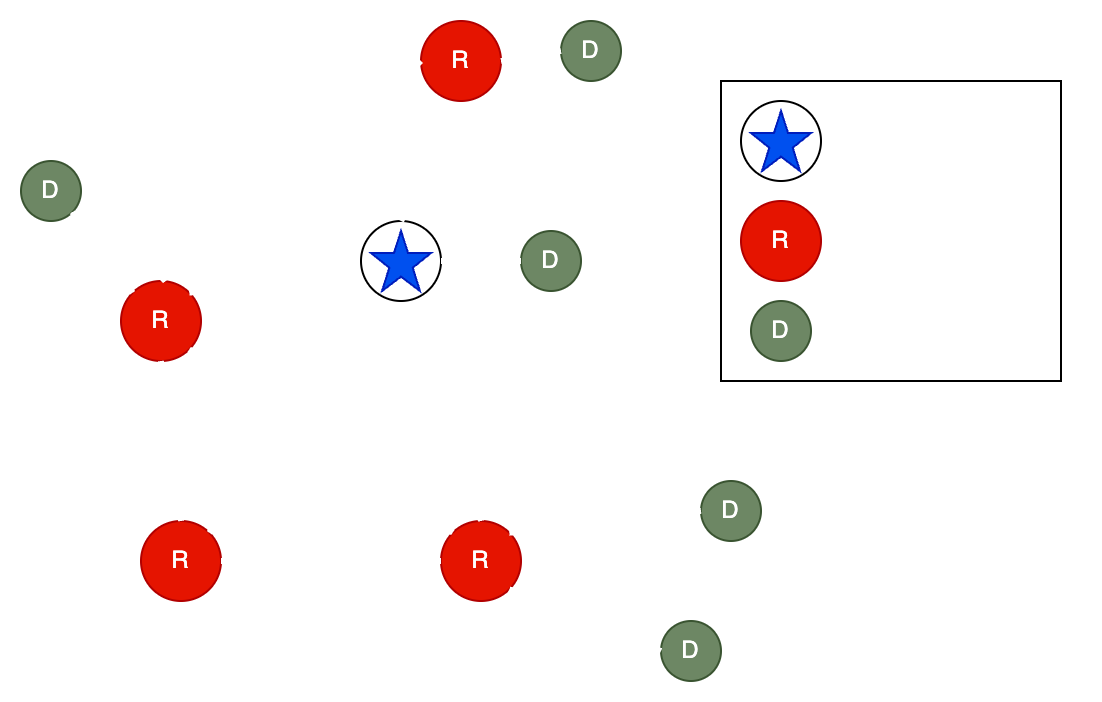

Zigbee

zigbee2mqtt

Mosquitto

  • USB connected
  • Network
  • Hybrid (network + USB)
  • Raspberry Pi hat

Adapters

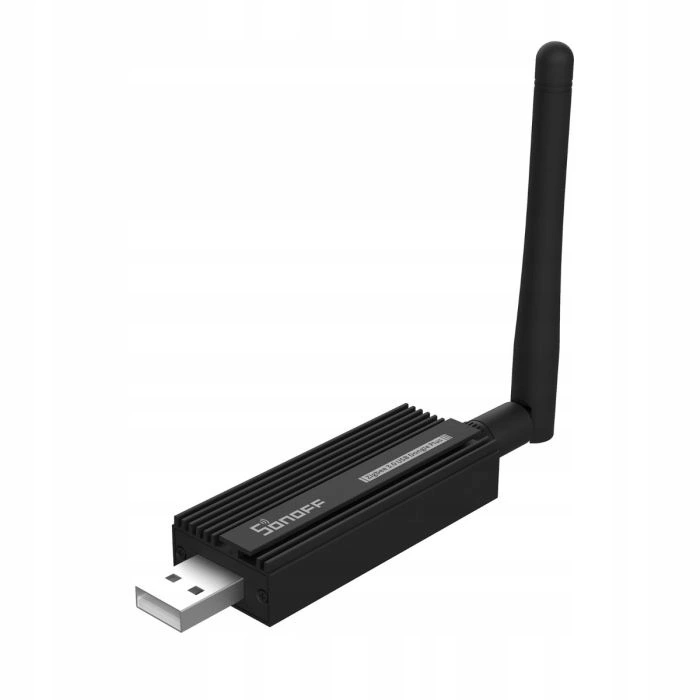

Sonoff ZBDongle-P

https://netowo.com/userdata/public/gfx/10228/12fd99ee4f17b00decf42525010d.webp

Devices

  • 2400+ supported devices
  • 300+ vendors

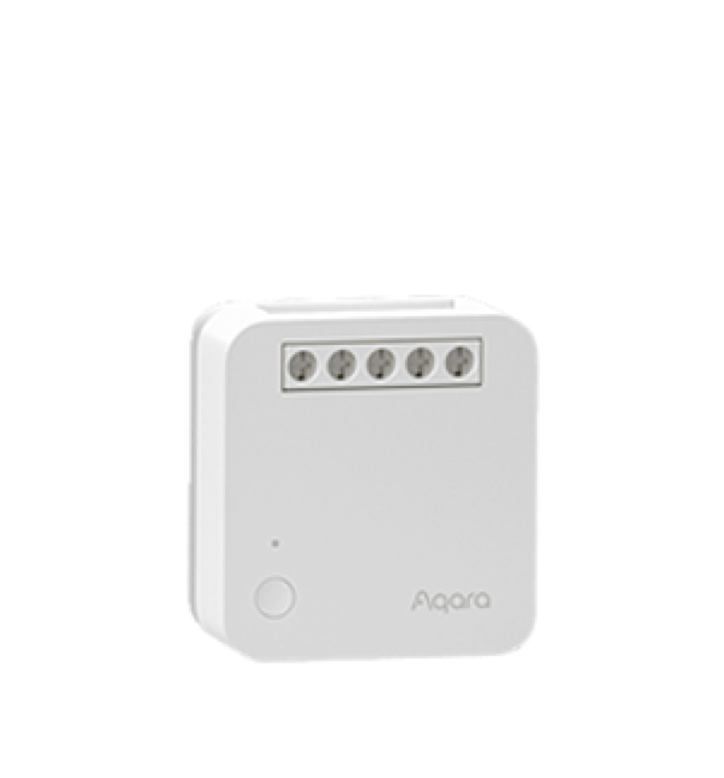

Aqara Single Switch

https://www.batna24.com/products/DNXGGHHSLRMMMK/ff558ac17d595fc1cb3184577ebb111d.webp

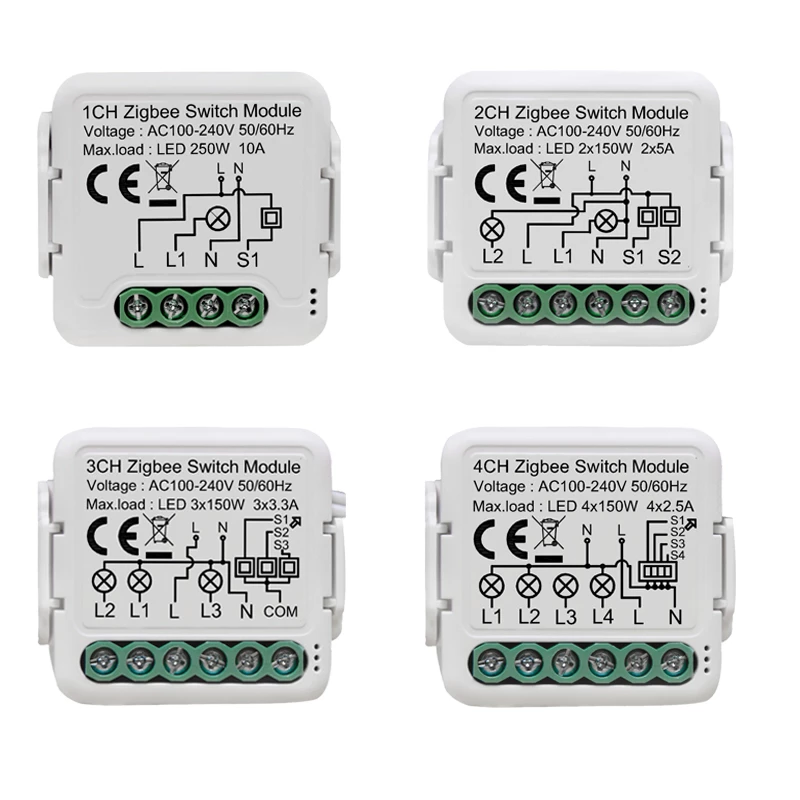

Tuya 1/2/3/4 Gang

https://ae01.alicdn.com/kf/H3541f3bbdd4f43088dc87a803fc90379m/Lonsonho-Tuya-Zigbee-inteligentny-prze-cznik-przeka-nik-modu-u-1-2-3-4-Gang-inteligentne.jpg_Q90.jpg_.webp

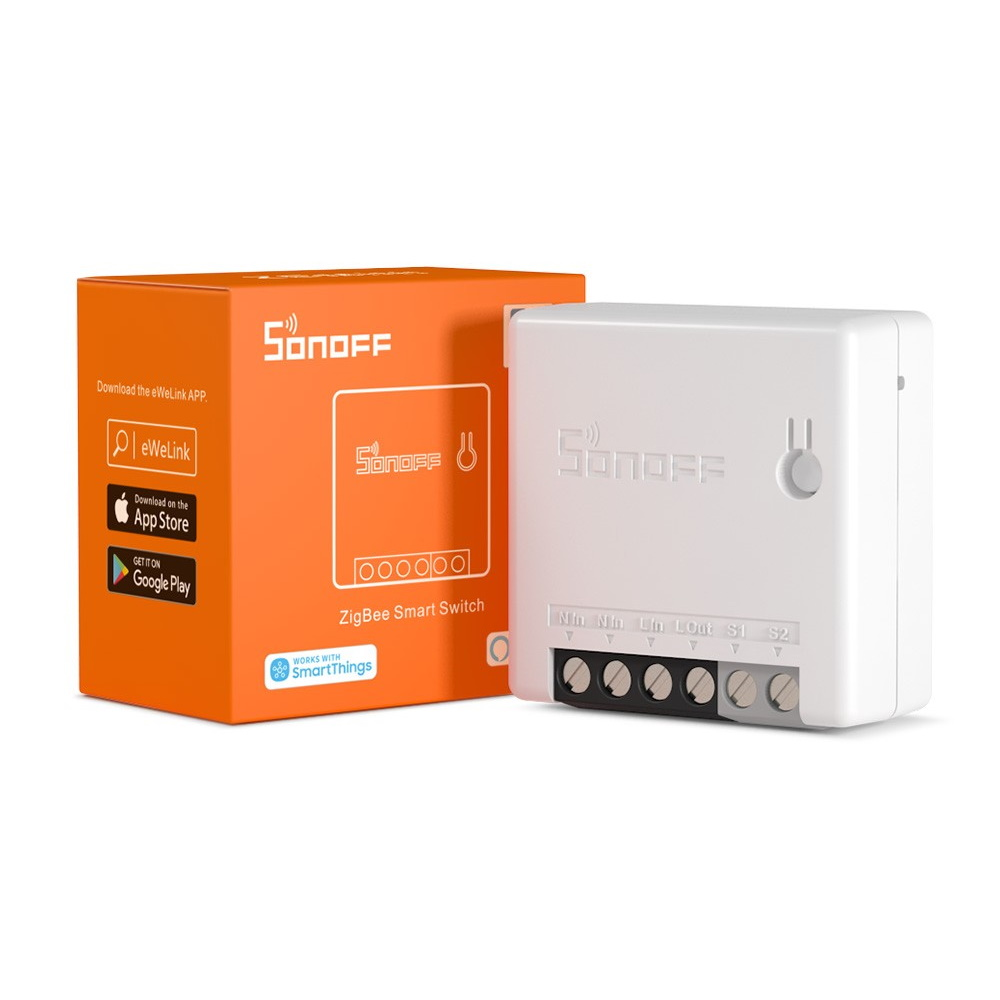

SONOFF ZBMINI

https://zigbee.blakadder.com/assets/images/devices/Sonoff_ZBMINI.jpg

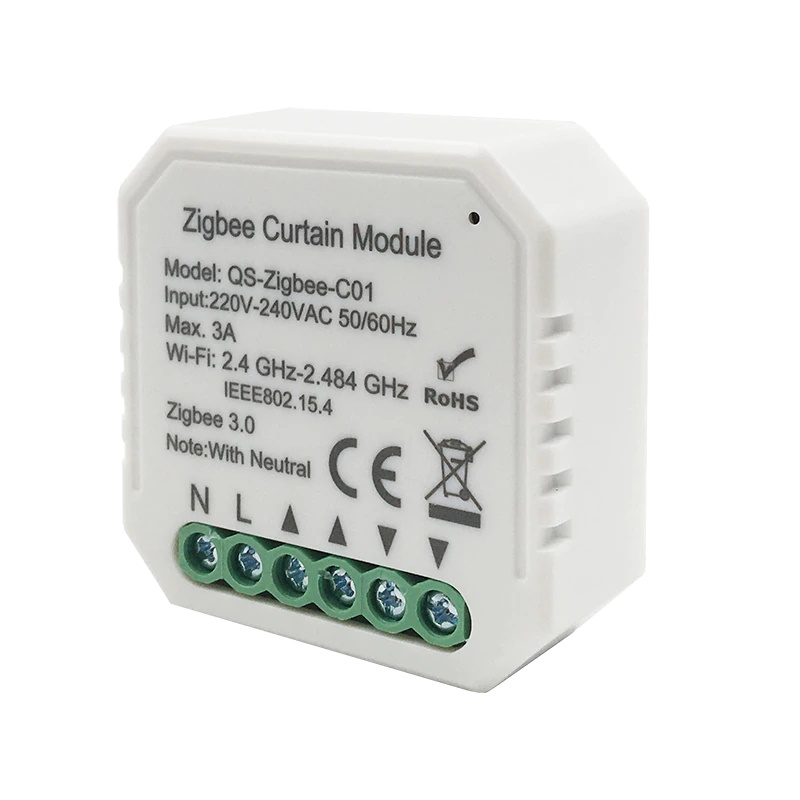

Lonsonho QS-Zigbee-C01

https://zigbee.blakadder.com/assets/images/devices/Lonsonho_QS-Zigbee-C01.jpg

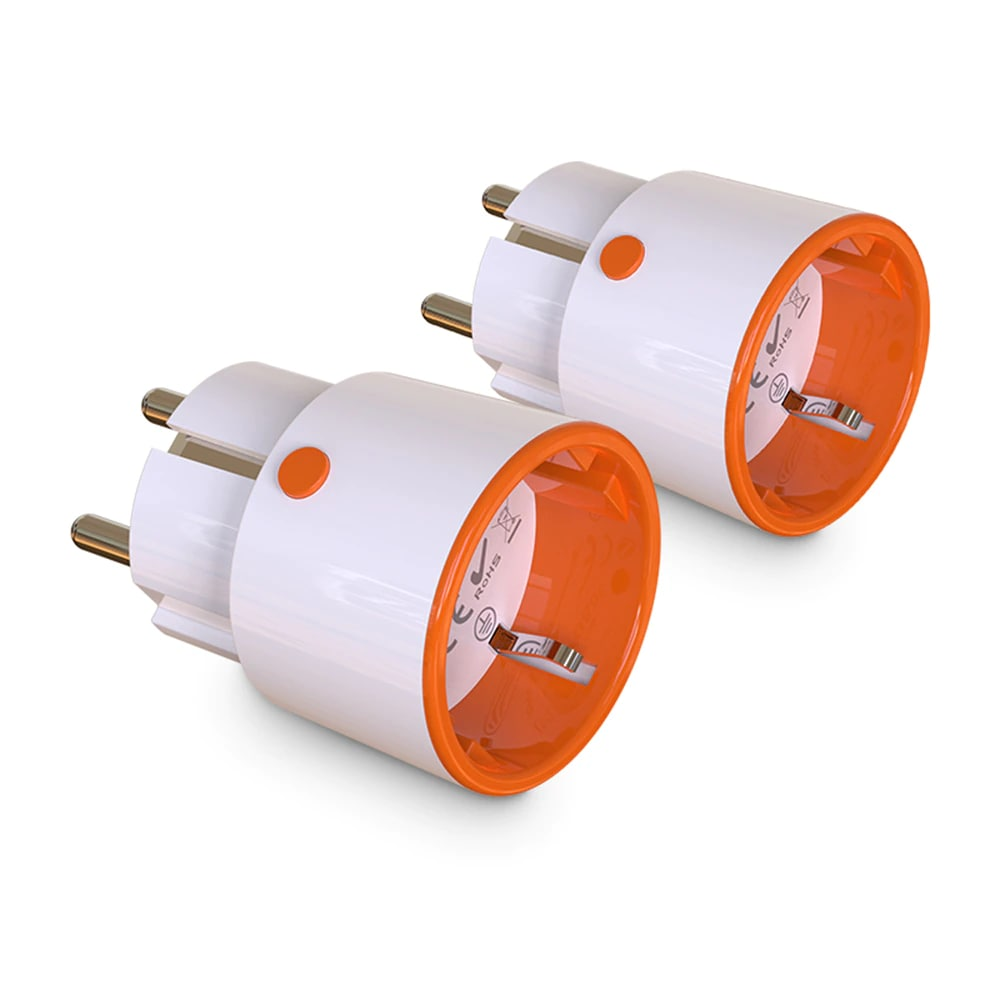

TuYa TS011F_plug_1

https://tgraph.io/file/801585d3507f96bc8a3d6.jpg

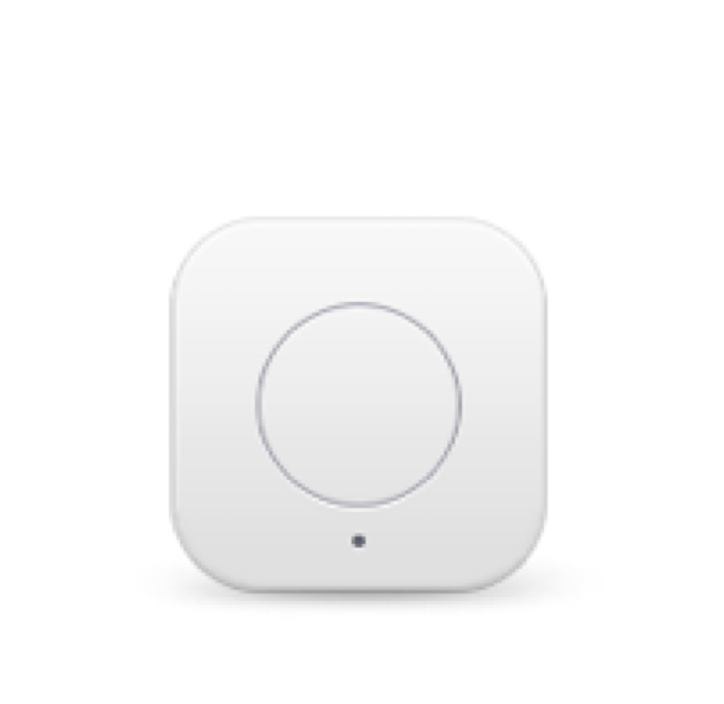

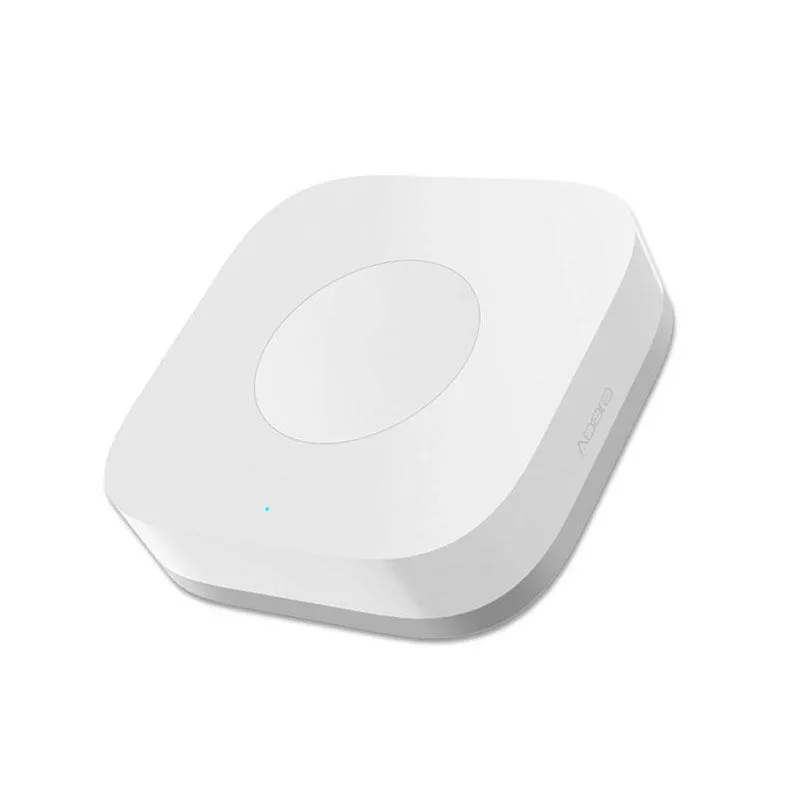

Aqara Wireless Mini Switch

https://zigbee.blakadder.com/assets/images/devices/Aqara_WXKG11LM.webp

SONOFF SNZB-04

https://zigbee.blakadder.com/assets/images/devices/Sonoff_SNZB-04.webp

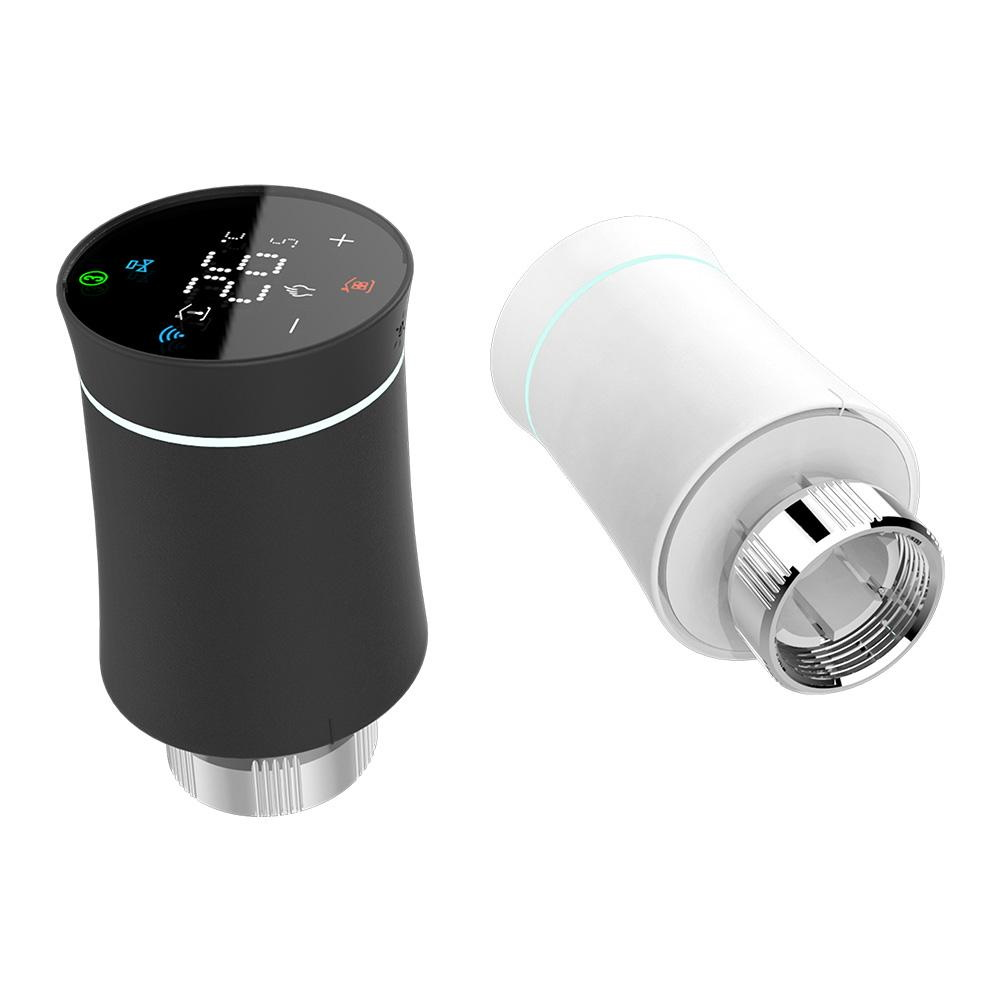

Moes BRT-100-TRV

https://zigbee.blakadder.com/assets/images/devices/Beca_BRT-100.jpg

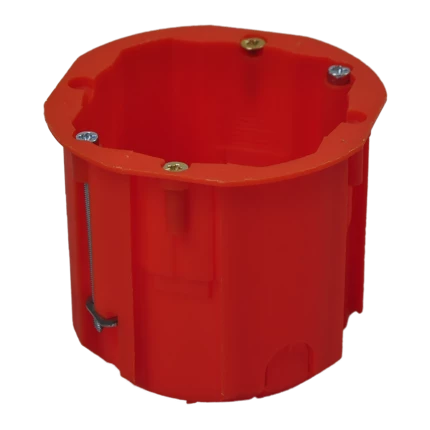

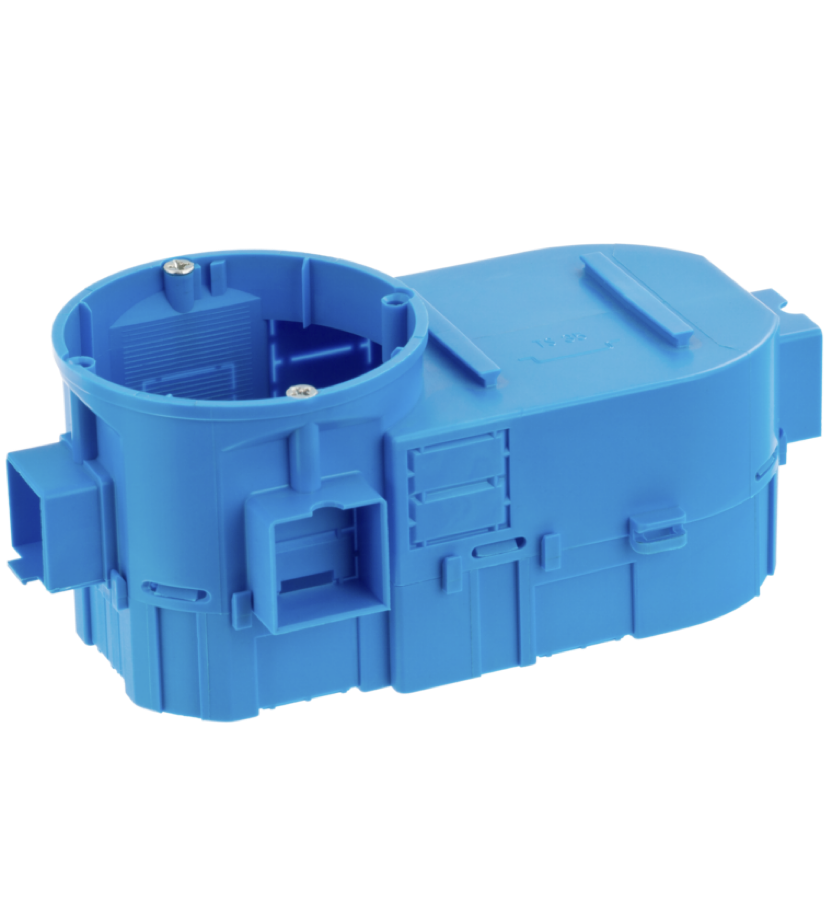

Junction boxes

zigbee2mqtt

HomeKit

Homebridge

Mosquitto

Node-RED

Home Assistant

  • 2100+ integrations (including zigbee2mqtt)
  • designed to be a central control system
  • Home Assistant OS
  • mobile app

Cameras

  • FTP uploading
  • rtsp streaming
  • POE

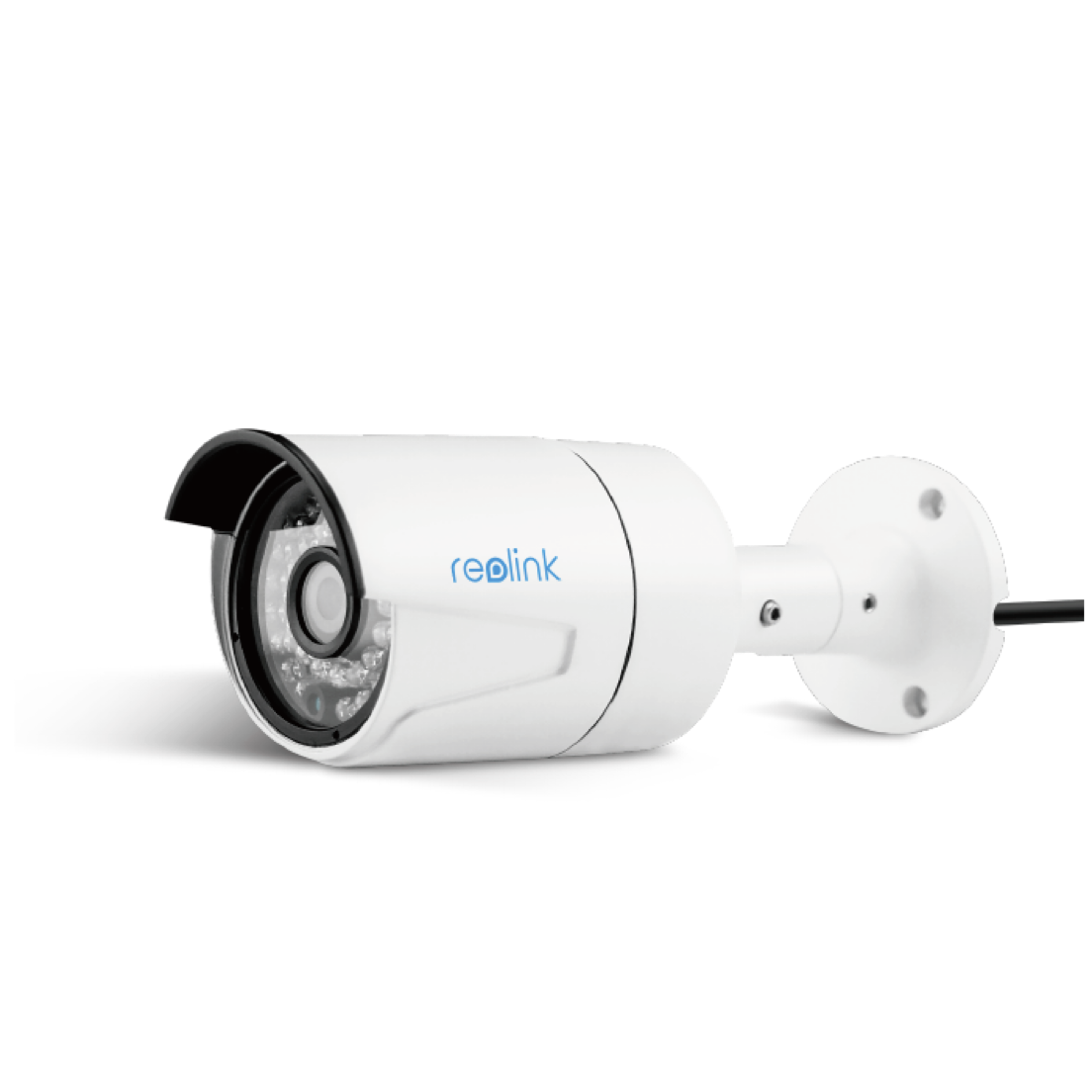

Reolink RLC-410-5Mp

Gate Remote Control

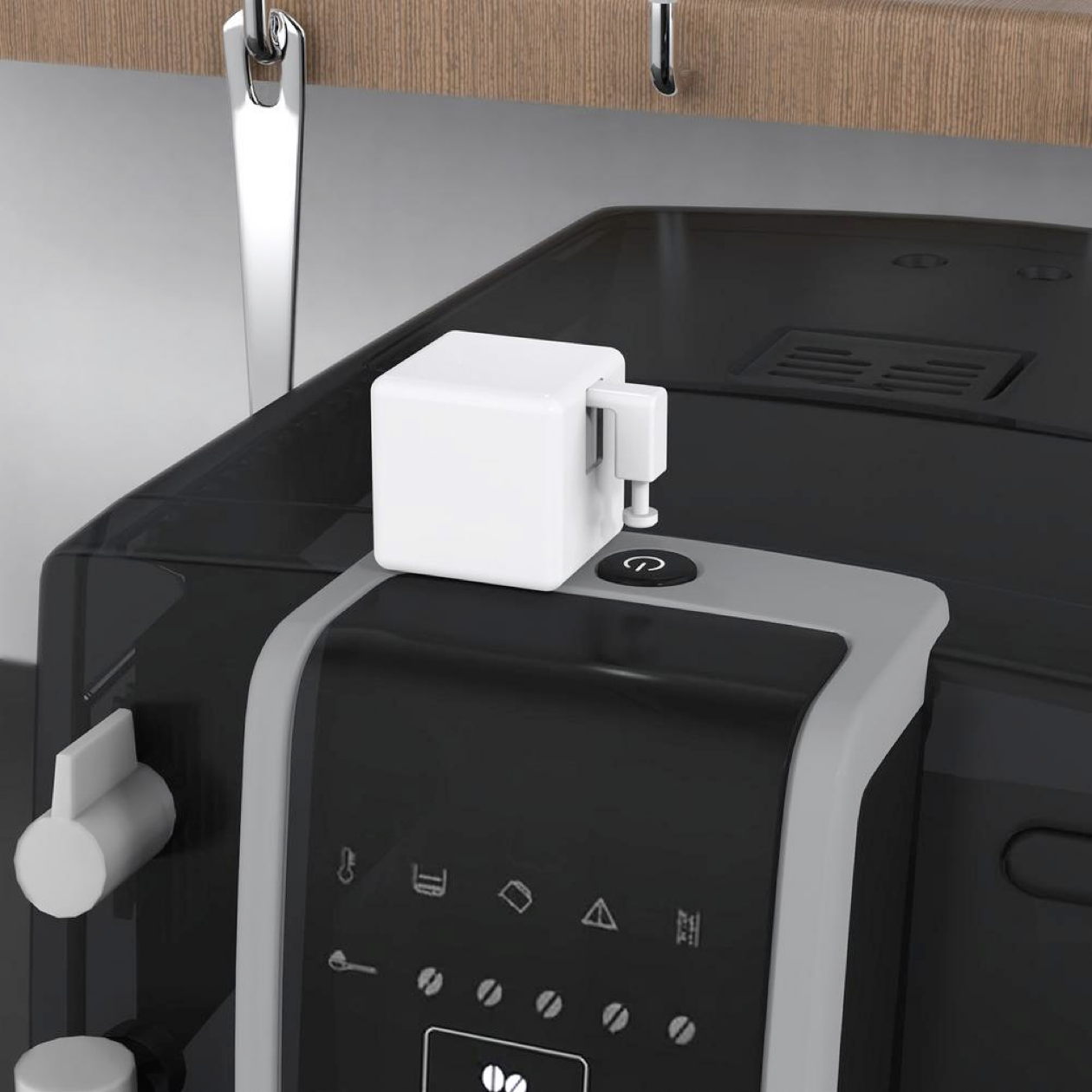

Fingerbot Plus

Gate Remote Control

Sonoff SV

Gate Remote Control

Demo time!

deck

By Kamil Szubrycht
