3D Modeling and SketchUp
Form 1 - Computer
2023-2024
Floor 4 - Computer Room
Mr. Peter
Outline
Outline
Login SketchUp
1
2
SketchUp Practice - Ex02
3
SketchUp Practice - Ex03

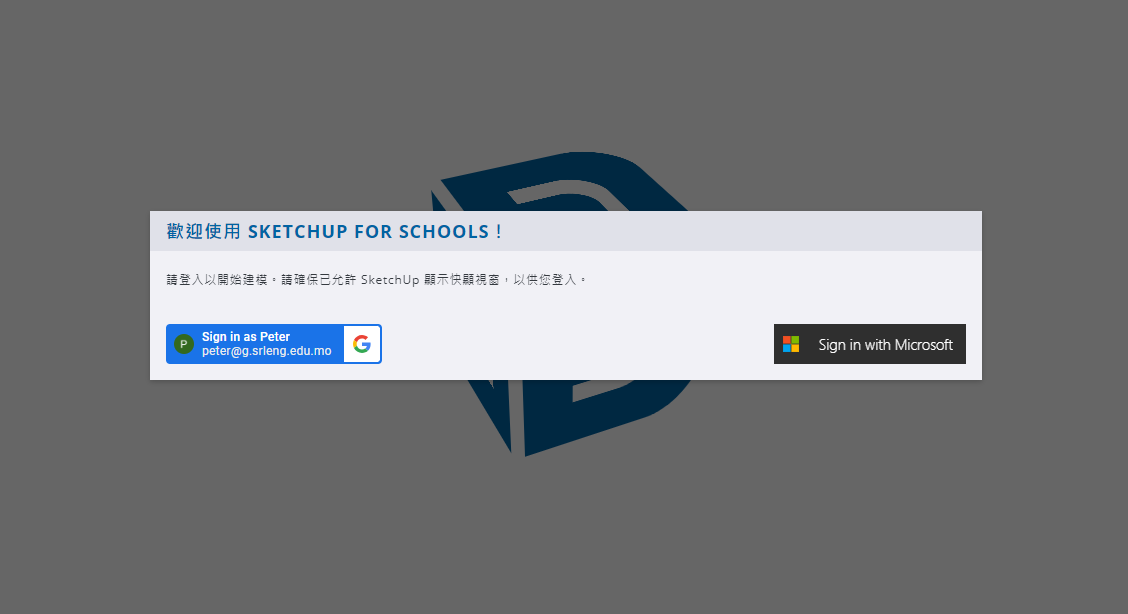

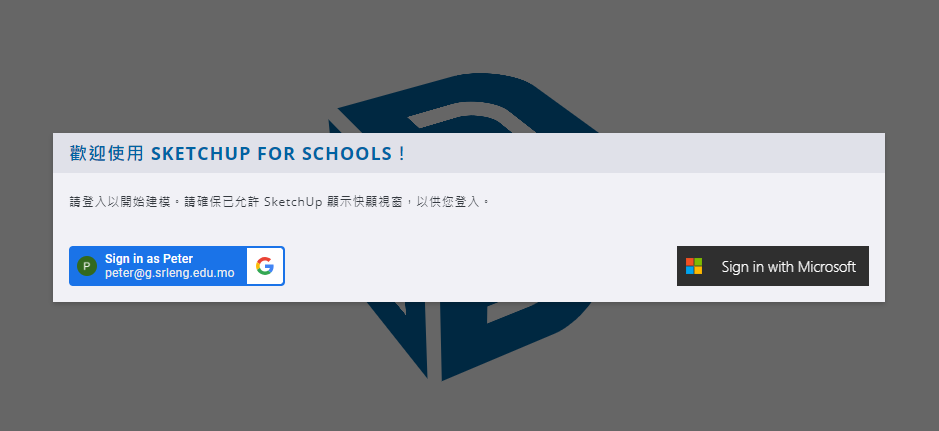

SketchUp Login
SketchUp Login
Click and open the menu

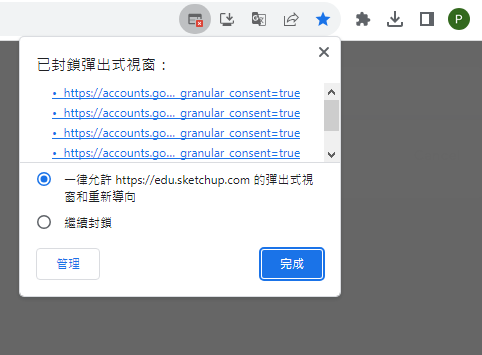

SketchUp Login
Click and open the menu
Check the allow option
Finish the setting
SketchUp Login
Click and open the menu
Check the allow option
Finish the setting

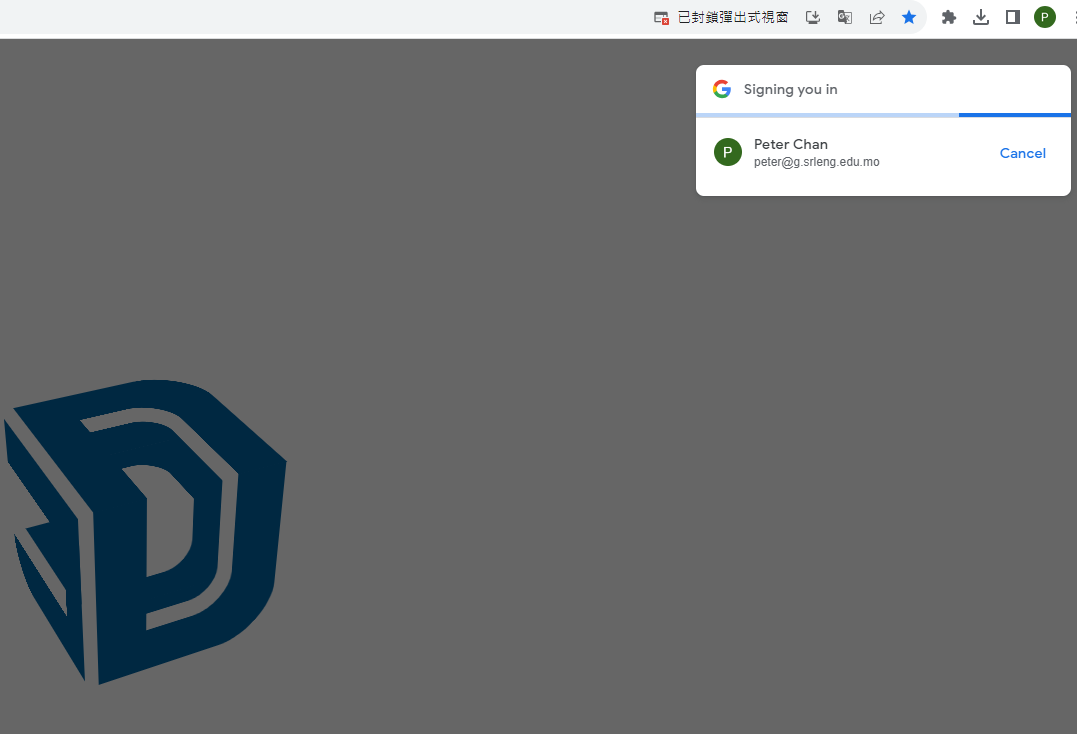

Login again
Click

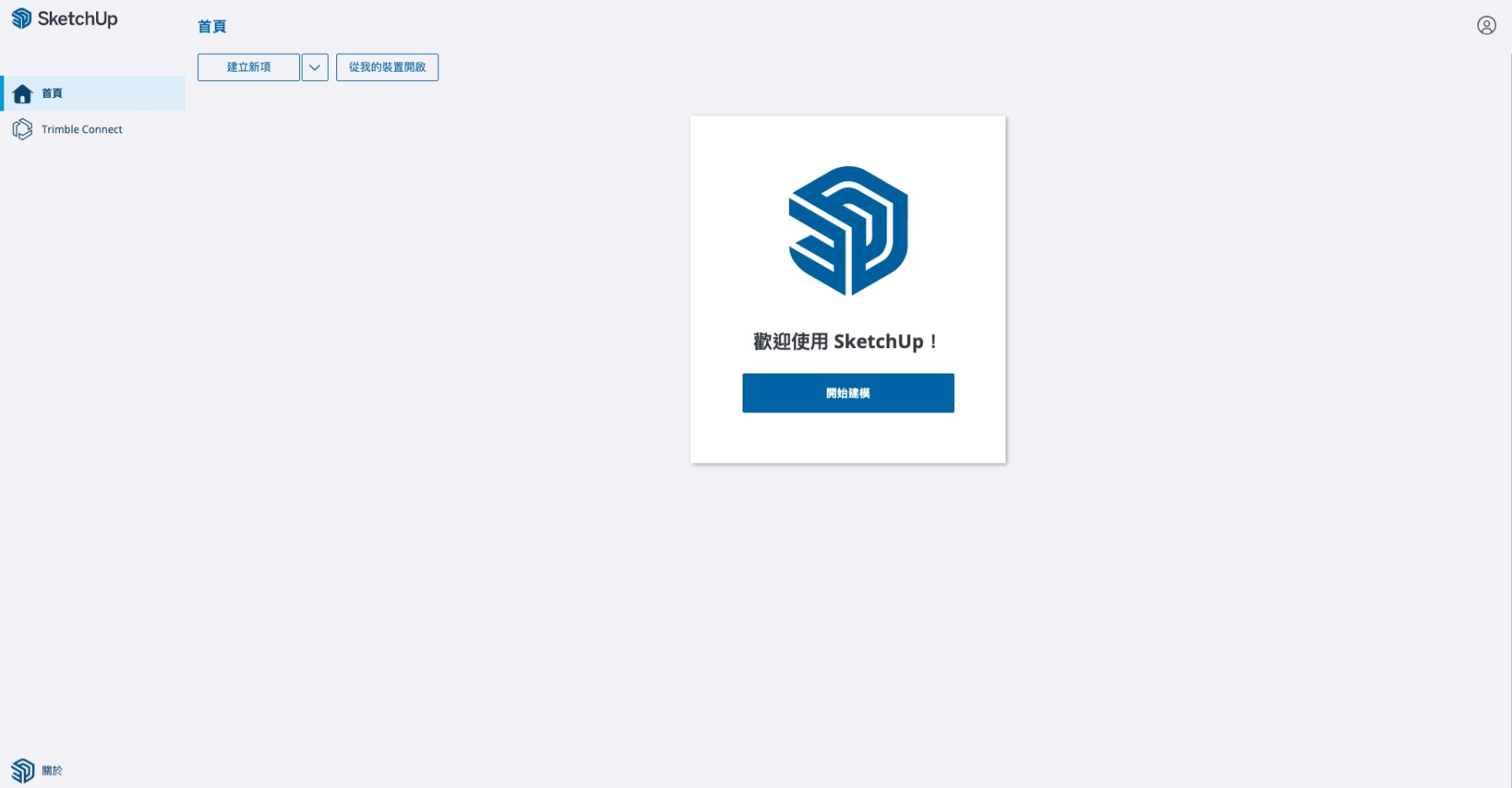

SketchUp - Create a new project

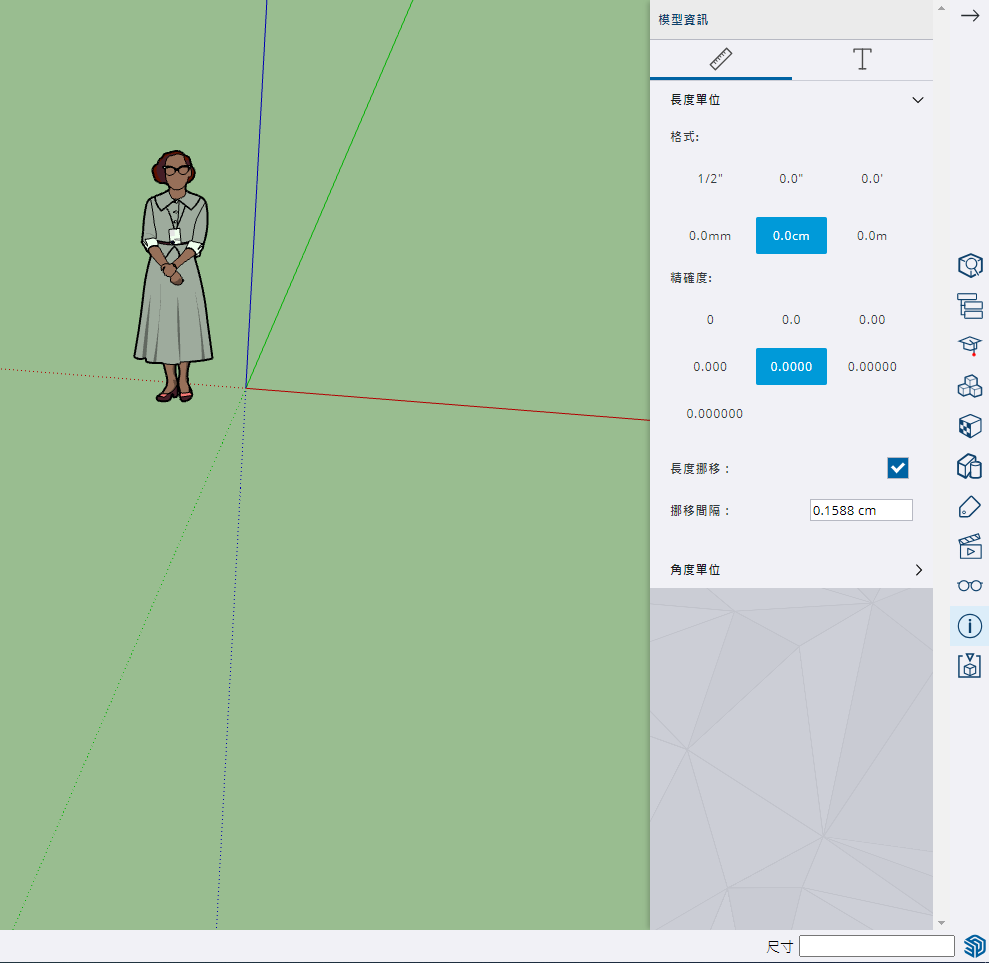

SketchUp - Unit Setting
Change the unit to be CM
The logic of creating a model in SketchUp

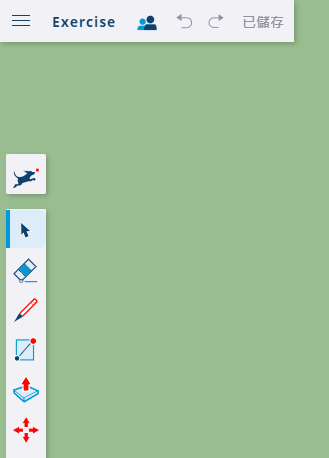

Create a 2D shape using Retangle tool
3D
2D
Create a 3D object using Pull tool
Create model in SketchUp - Ex02
Create model in SketchUp - Ex02

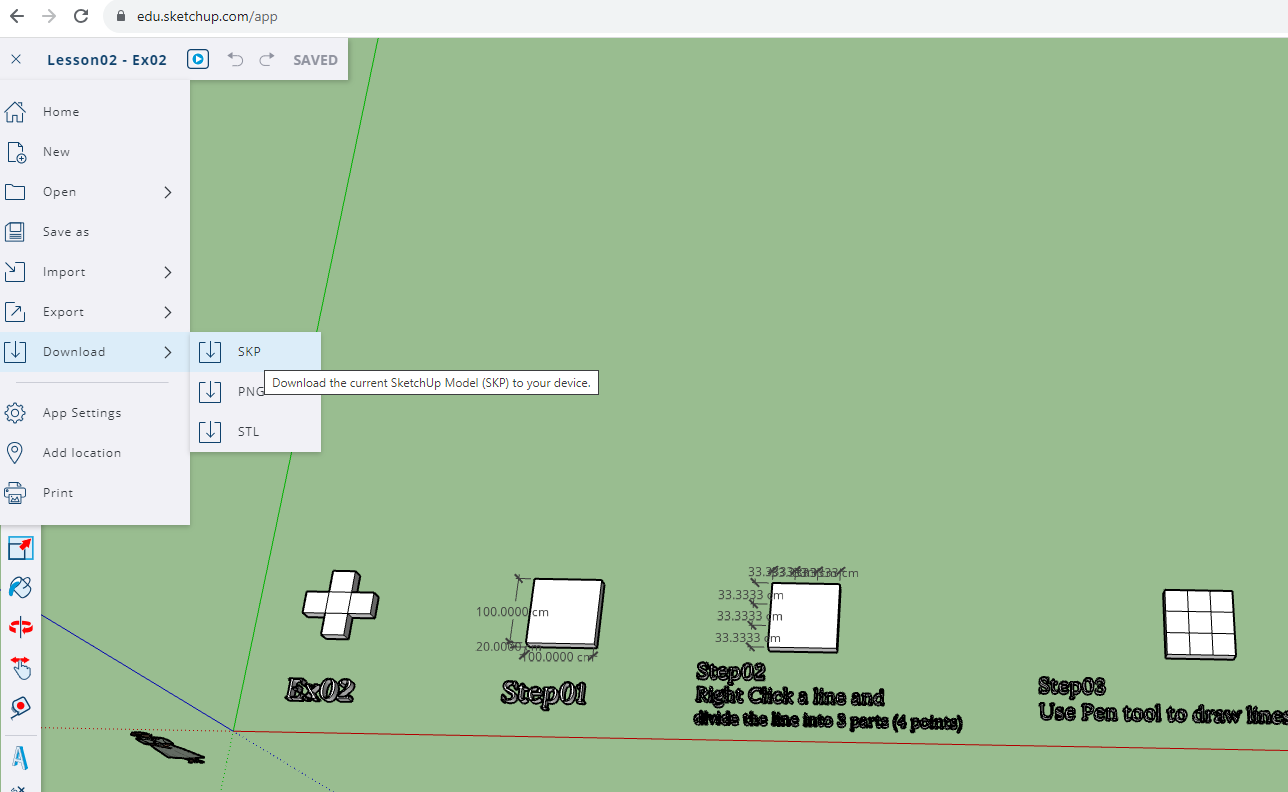

1. Download your work and name it as "XX_YYYYY_ex02.skp"

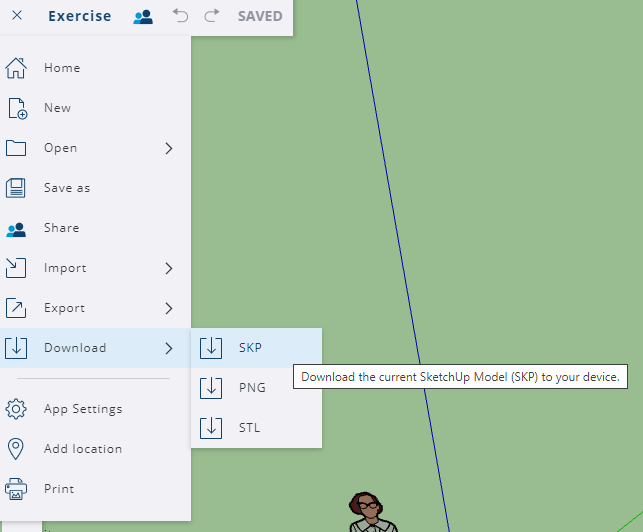

1. Open the menu
2. Download
3. Download as a SKP file
2. Upload your downloaded file into Google Classroom
Create model in SketchUp - Ex03
Create model in SketchUp - Ex03
1. Open the menu
2. Download
3. Download as a SKP file
1. Download your work and name it as "XX_YYYYY_ex03.skp"
2. Upload your downloaded file into Google Classroom
Copy of F1 - Lesson03
By Mr Peter
