Introduction to Photogrammetry

September 2020



Philo van Kemenade @phivk

Creative Commons License

Netherlands Institute for Sound and Vision

Storytellers United

@storyunite

3D scanning

Photogrammetry

The science of making measurements from photographs

Using software to construct 3D models from sets of photographs (or video frames)

Structure from Motion

Photogrammetry

recognizes key points
shared across a set of images

and reconstructs

their 3D position

Accessibility

Affordability

Accuracy

Photogrammetry  vs

other techniques

⭐️⭐️⭐️⭐️⭐️

⭐️⭐️⭐️⭐️⭐️

⭐️⭐️⭐️

(e.g. laser based)

Capturing Scenarios

object

facade / wall

room

Fixed zoom level



Fixed white balance



Fill the frame



Fully in focus

Evenly lit

Camera settings

Ensure at least 50% overlap



Approx 30 - 50 photos give decent results

Think: photos as data
Avoid blind spots

Photo taking

hard to scan...

transparent things

reflective
things

thin
parts

comparisons = combinations

3

3

4

6

5

10

2

1

combinatorial explosion

💥😱

in this together

Shared notepad

includes all the links!

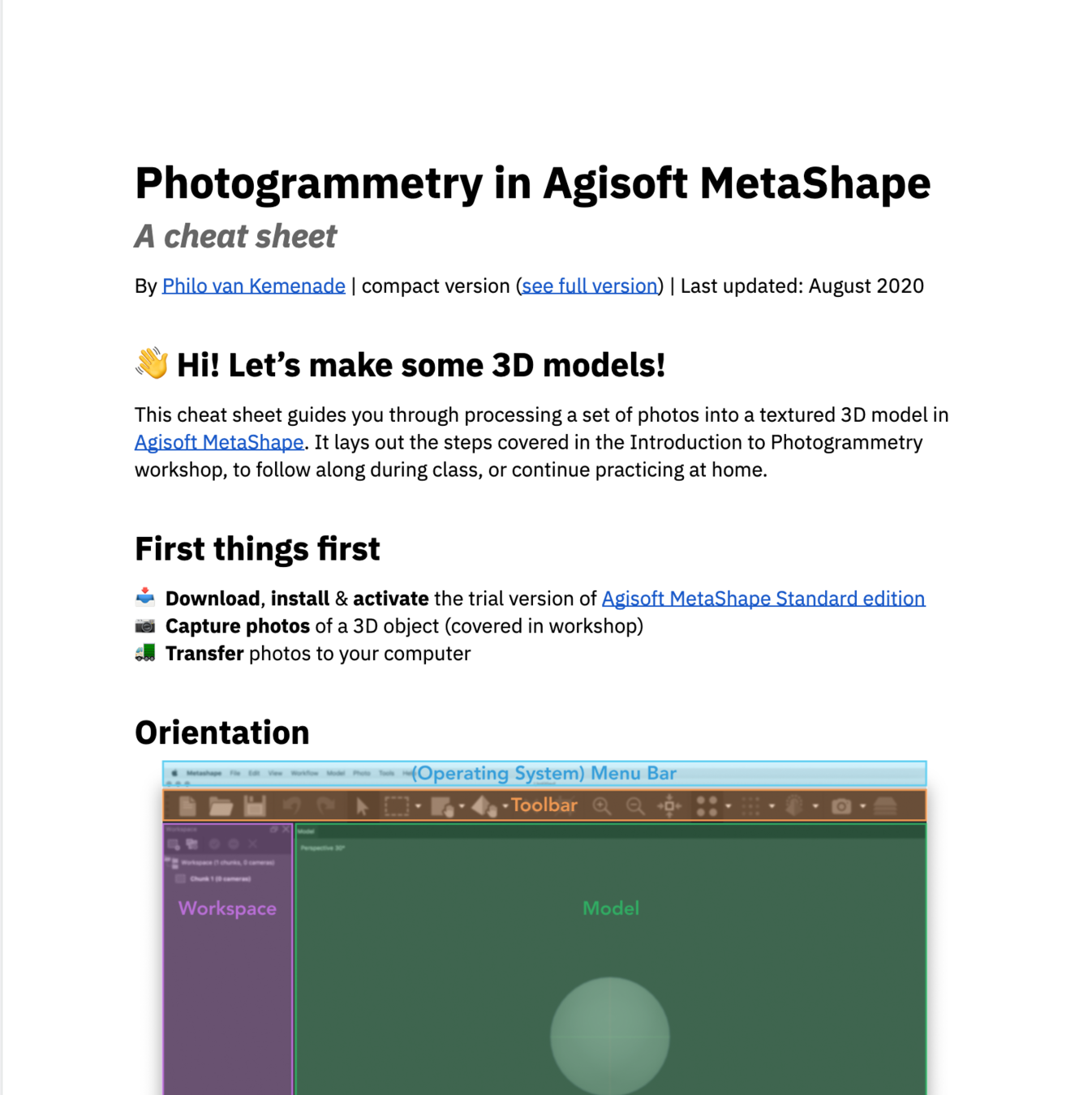

Cheat Sheet
