Traditional Drug Discovery Process

• ​Target Validation and Lead Selection

• Lead Optimization

• Multiple Testing Phases

• Final Drug

Traditional Drug Discovery Process

• ​Takes 10+ years for the development of a single drug!

• Lower estimates for the development of a drug is roughly ~$2B!

Drug Discovery 101

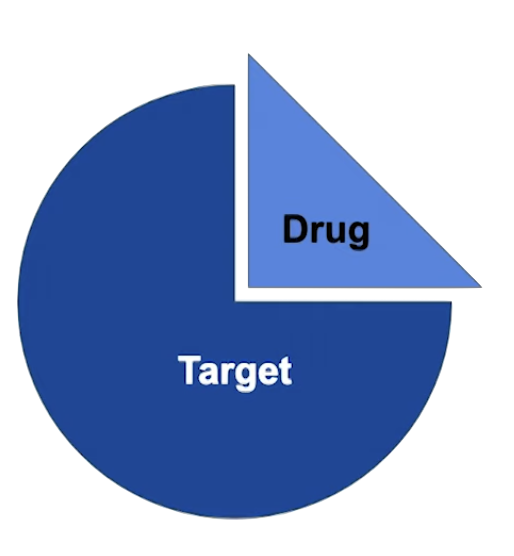

• Target : A compound that is associated with a disease and it is the desired therapy destination.

• Lead : A molecule that shows remedial promise but it is not fully optimized.

• Drug : An optimized lead leading to desired results.

Drug Discovery 101

​

• Exploration in the compound universe leads to a combinatorial explosion! (1e20 -1e60 molecules)

• What we want is targeted and directed exploration.

• What if we had a magic box that could generate novel molecules with the desired properties?

Cue Deep Learning!​

NLP In Generative Chemistry

Different representations

• But how do you represent a molecule to train these models?

• Molecules are usually represented in two primary formats:

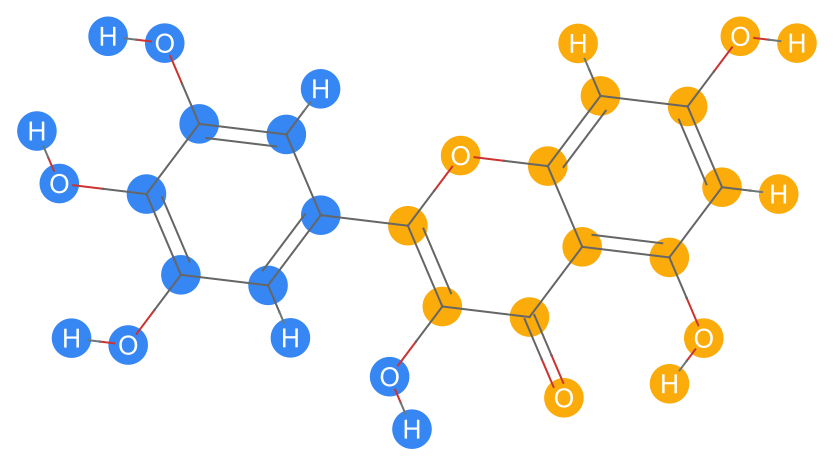

  • Graphs

  • SMILES

Different representations

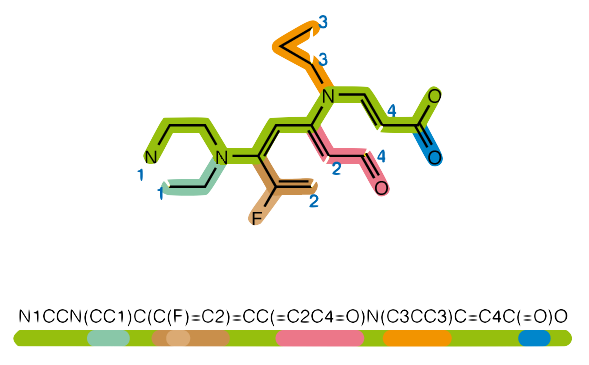

• SMILES stands for Simplified Molecular Input Line-Entry System.

• Textual representation obtain from a Depth-First Traversal of a molecular compound.

• Chemical rules are established for validity.

Transformers to the Rescue

• Transformers have revolutionized NLP tasks.

• Championed the field of Self-Supervised learning.

• SOTA in:

  • ​Machine Translation
  • Question-Answering
  • Summarization
  • So many other tasks!

Transformers to the Rescue

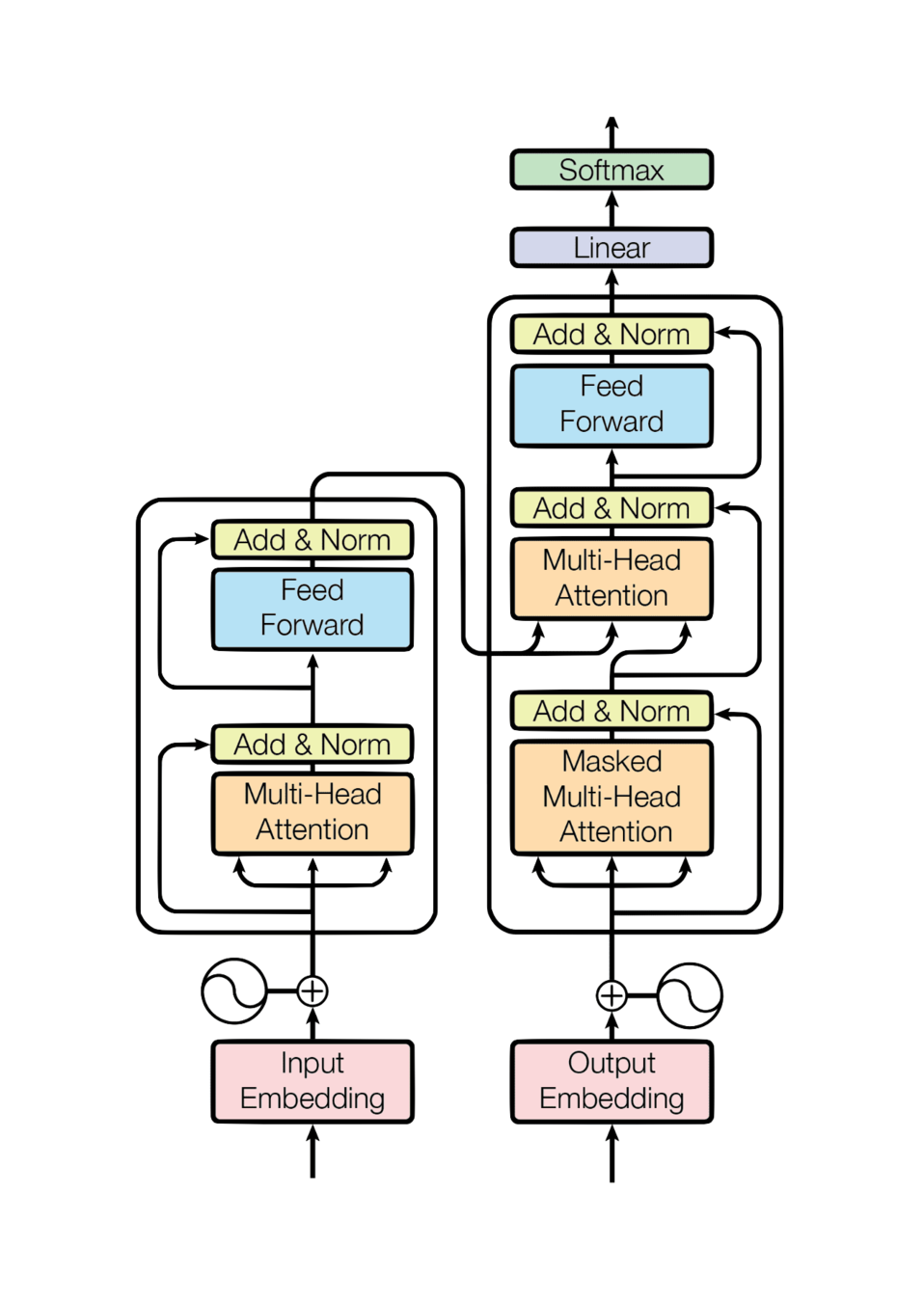

• The famous Transformer architecture!

• The daunting model has two broad parts:

  • Encoder : Learn the latent embeddings.

  • Decoder : Generate output auto-regressively.

Transformers to the Rescue

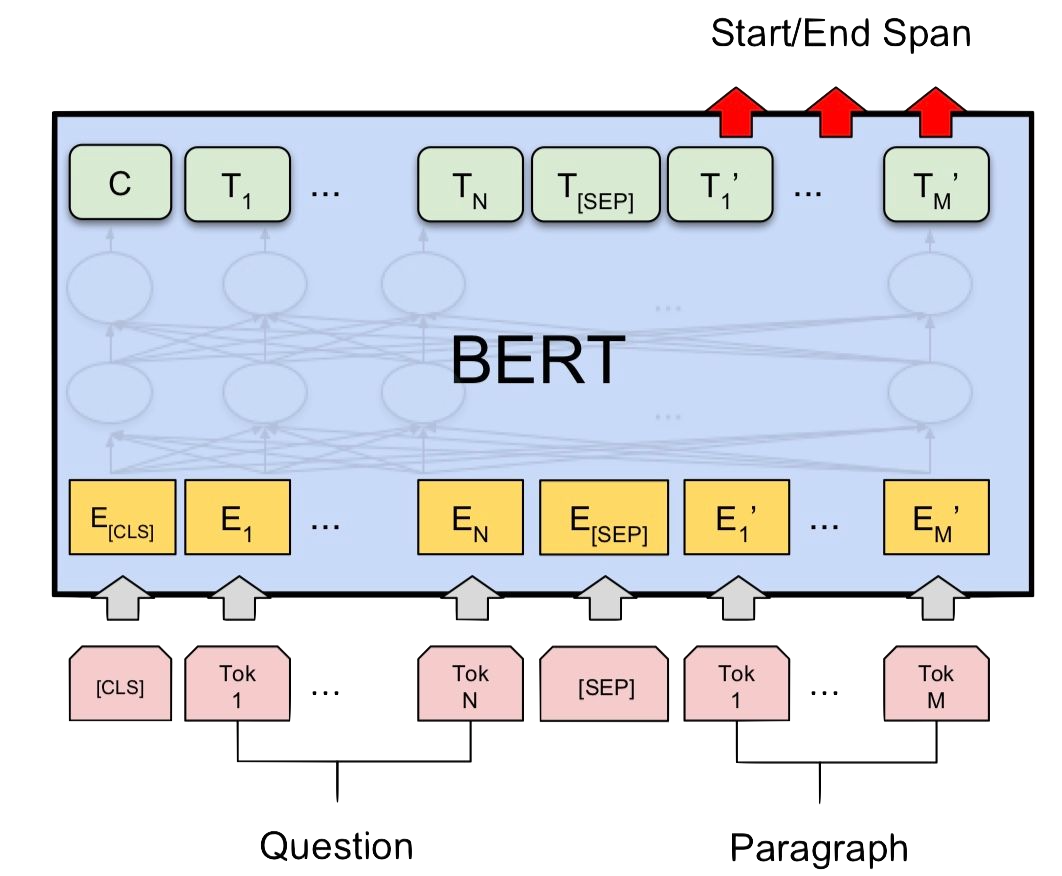

Encoder Only

• BERT based models.

• Uses contexts bidirectionally for effective learning.

• Proposed Masked Language Modeling (MLM).

Transformers to the Rescue

Decoder Only

• GPT based models.

• Unidirectional Autoregressive model.

Transformers to the Rescue

Encoder-Decoder

Best of both worlds!

Mega-Mol-BART

• Developed at NVIDIA in collaboration with AstraZeneca.

• Uses the Megatron framework (Mega)

• Trained on ~500M molecules (Mol)

• Uses the Bidirectional and Autoregressive Transformer architecture (BART)

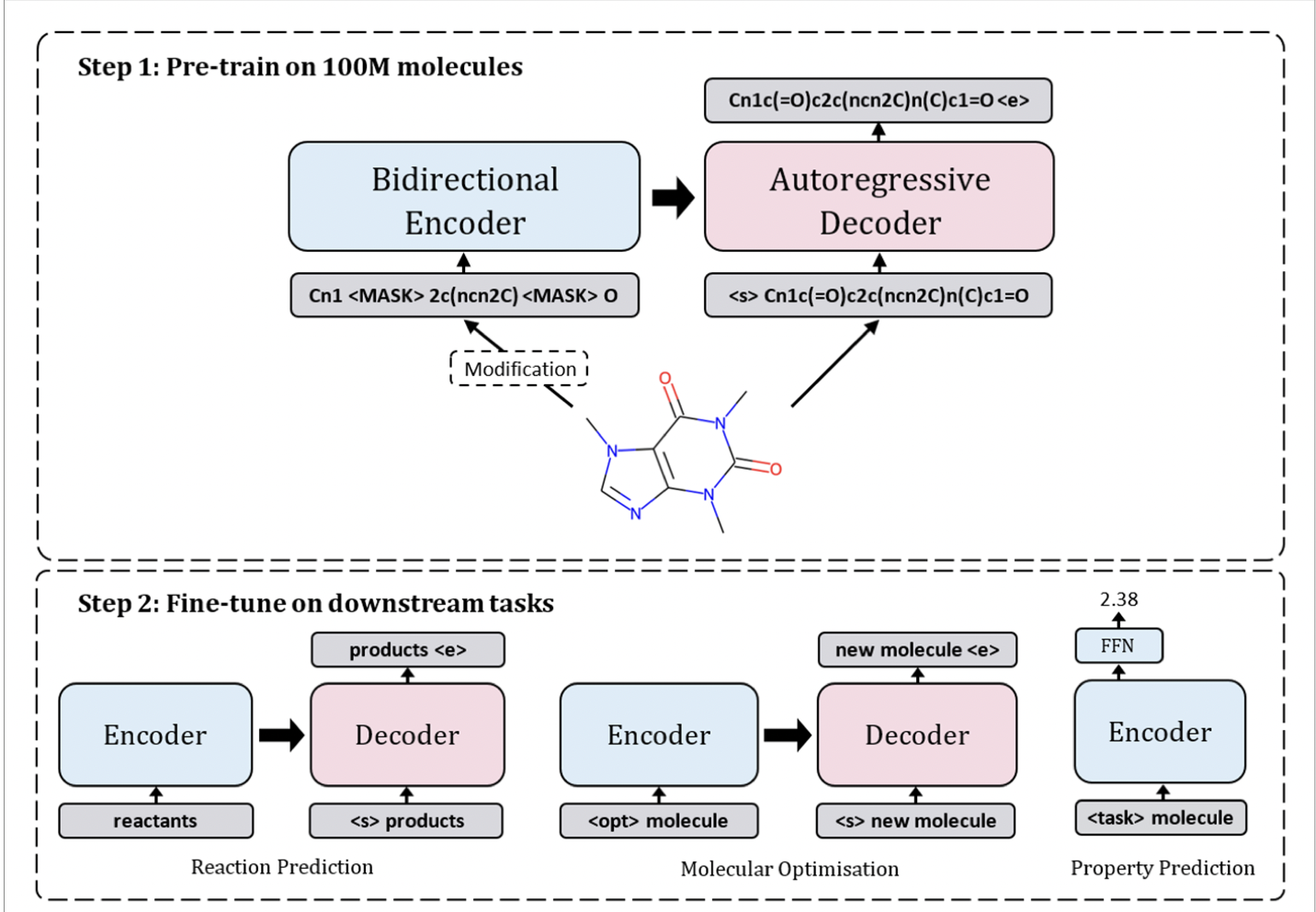

Mega-Mol-BART

• 500M molecules sampled randomly from ZINC15

• BART

  • ​Developed by FAIR.

  • Span Masking.

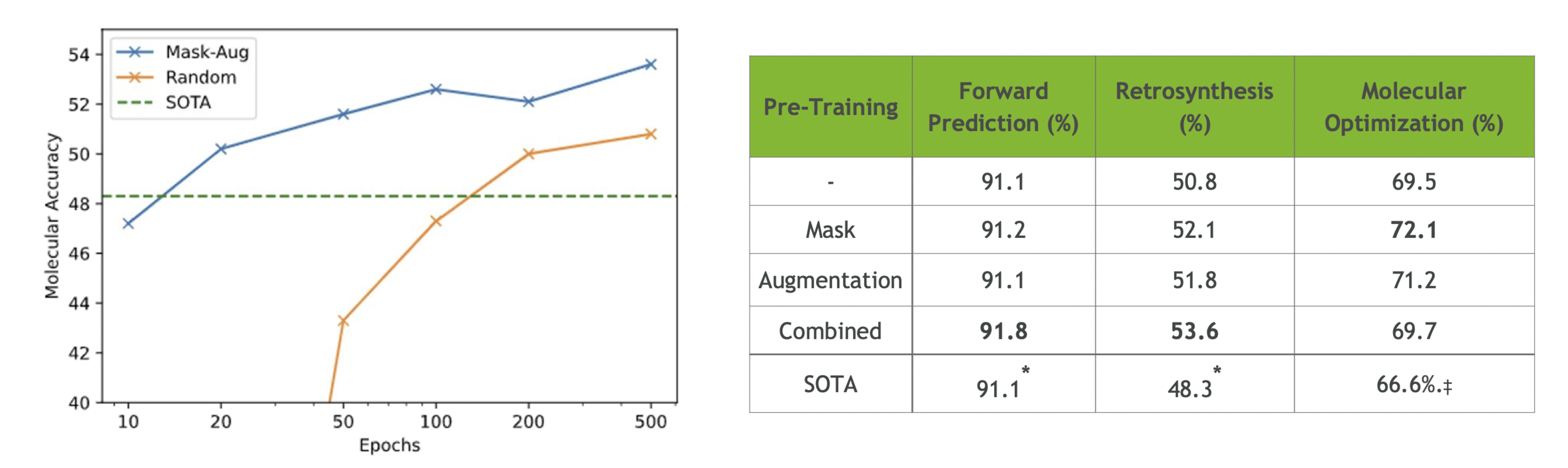

Results

Results

• Usage:

  • SMILES strings sampled around the region of a single input SMILES molecule.

  • SMILES strings sampled at regularly spaced intervals between two input molecules.​

• Results:

  • ​Validity: 0.98

  • Uniqueness: 0.32

  • Novelty: 0.36

Results
