The Power of the
Internet of Things
slides.com/tilix/ignite-nov-2016
Source: IoT World Forum
Reference Model

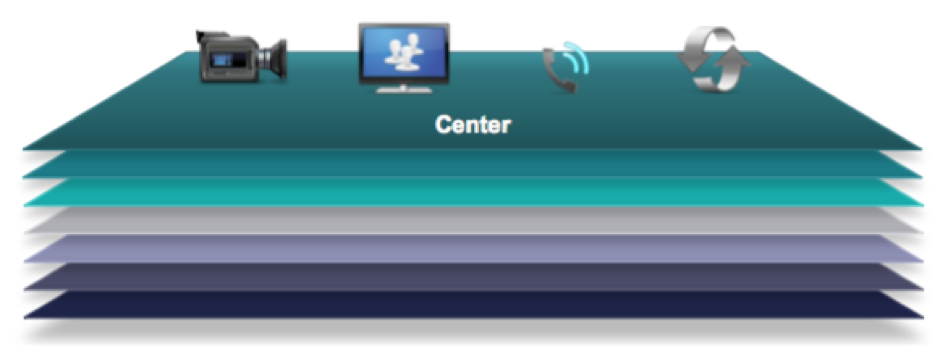

Collaboration
& Processes

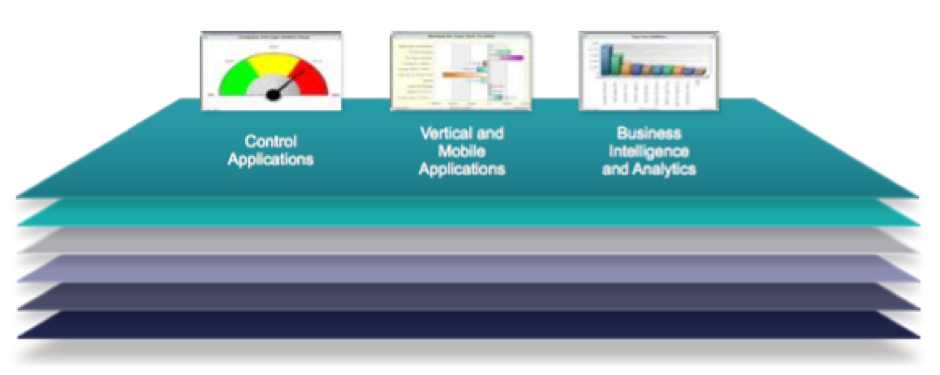

Application
Data Abstraction

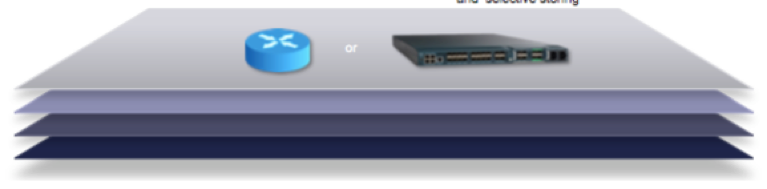

Data Accumulation

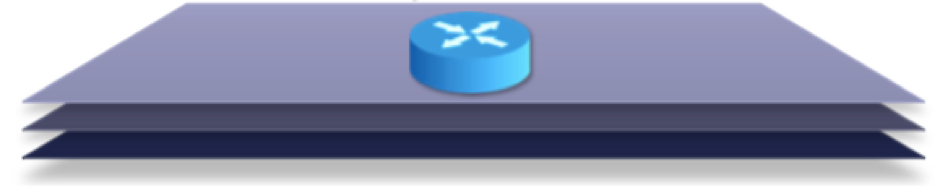

Edge Computing

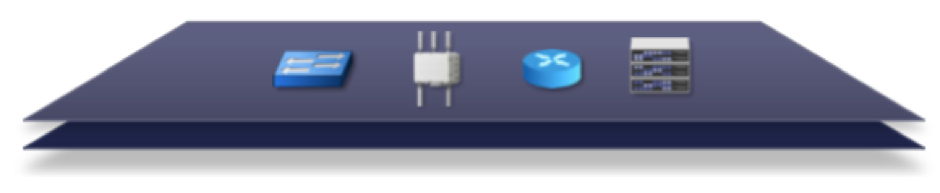

Connectivity

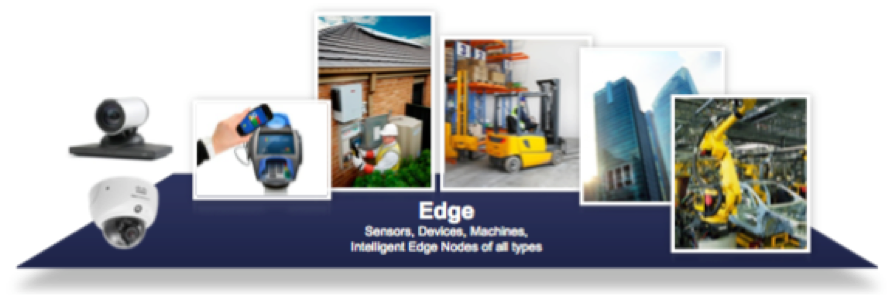

The Things

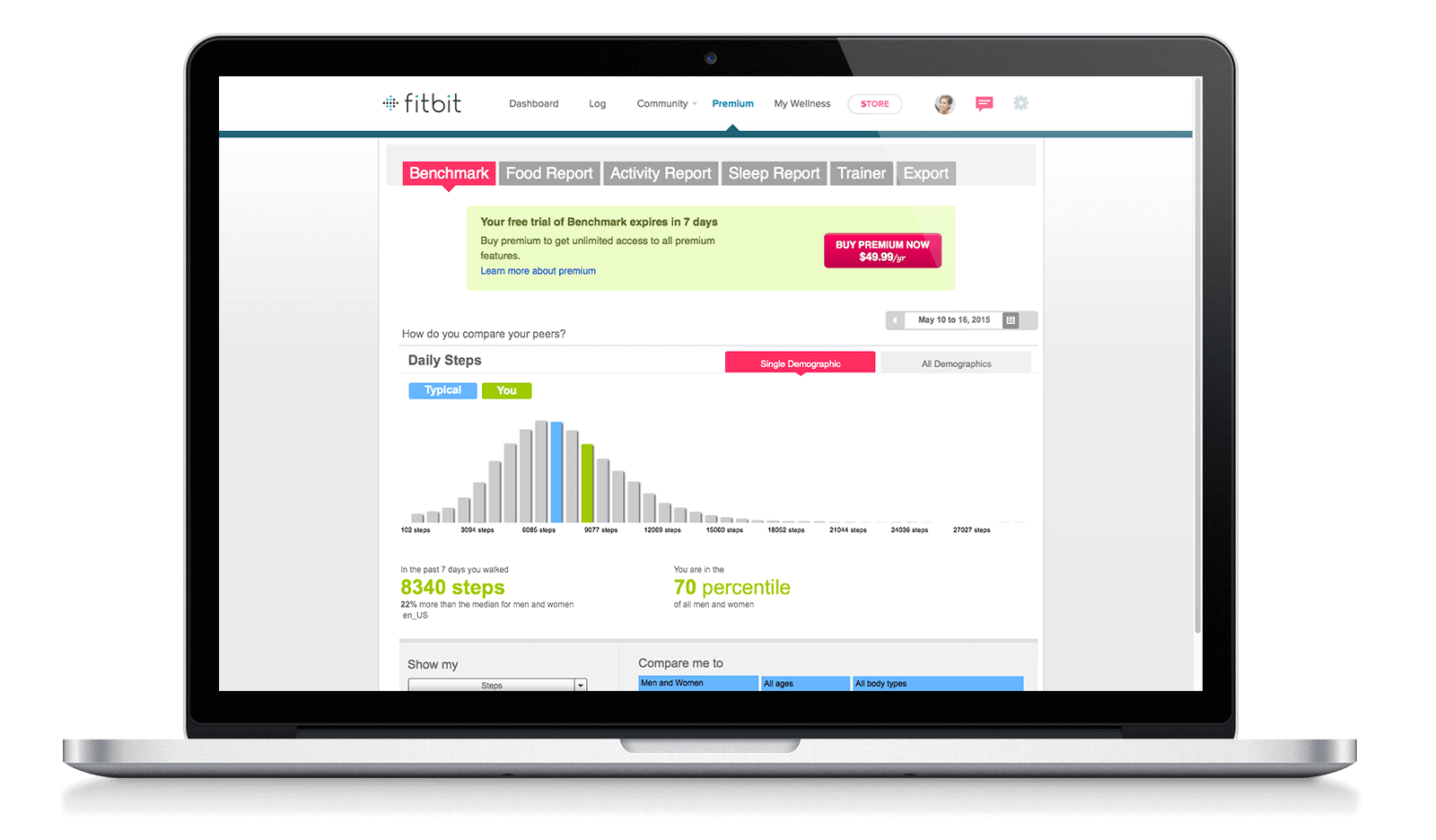

help people live healthier, more active lives
UK Smart Metering
The world's biggest IoT project?
30
53
million
million
comms hubs
meters
Sensors & Controllers
These "things" are often capable of:
- Analog to digital conversion
- Generating data
- Being queried / controlled over-the-net
Gas & Electricity meters
Connectivity
Communication &
Processing Units
Comms Hubs
Edge Computing
High-volume Data Analysis
& Transformation
Comms Service
Providers (CSP)
Data Accumulation
Storage
Data Service
Provider (DSP)

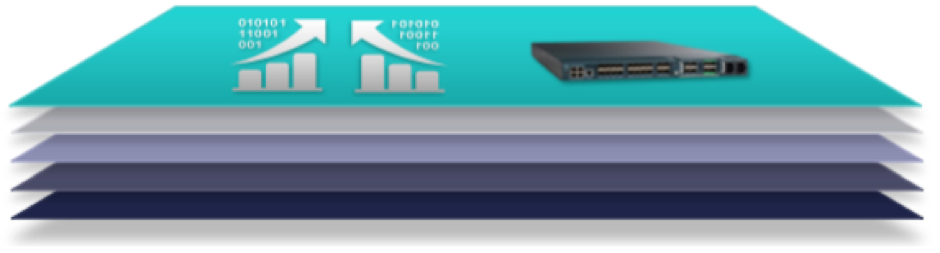

Data Abstraction
Information Integration,
Aggregation & Access
Data Service
Provider (DSP)
Reporting, Analytics, Control
Applications
People & Business Processes
Smart Grid
Industrial IoT in Action
Phasor measurement units, distributed power
flow control, dynamic turn up/down,
automation, artificial intelligence, drones......
People & Business Processes
- Safety
- Reliability
- Resilience
- Efficiency
- Cost Effectiveness
Lightning Detection
Prepare crews for quick dispatch for emergency repairs.
HV Line Monitoring
- Increase transmission capacity
- Defer investments
- Improve grid resilience
Two Examples
HV Line Monitoring
Source: Lindsey
- Continuously measure the distance from the conductor to the nearest object below it.
- Know the true facility capacity rating of lines by monitoring the operating temperature of conductors.
More Grid Innovation
- Conductor Audible Noise Evaluation
- Architecture for substation secondary system.
- Backfilling of current GIS with alternative gases
- RFI Sensitivity and Characterisation
- Digital Data and Visualisation
- Degradation cure of a hot joint
- HV harmonic impact on transformers
- Tap changer monitoring
- SF6 Leak Management & Repair Techniques
- Asset thermal model for remote operations
- Overhead line condition monitoring / evaluation
- Circuit Breaker Monitoring
- Low and medium voltage switchgear panel monitoring
- Insulation defect monitoring in gas insulated switchgear

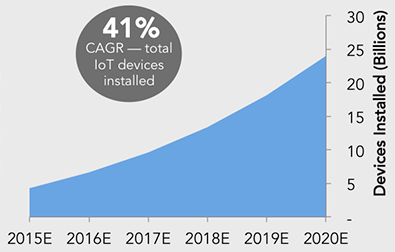

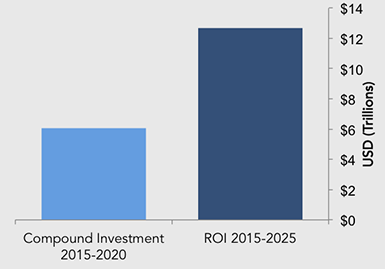

The Hype
The Internet of Things will be as transformative to the world as was the Industrial Revolution.
Source: BI Intelligence
Avoiding Uberization
Sources: Bain & Company + BI Intelligence

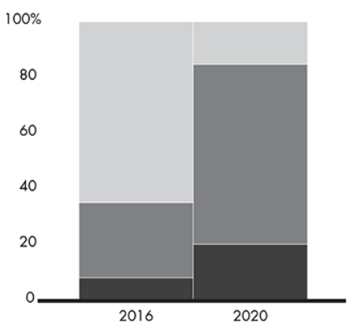

Stages of IoT adoption
Planning, discussion
Proof of concept, some implementation
Extensive implementation
Bain IoT Customer Survey, 2016 (n=533)
The "4 3 Horsemen"
Software & hardware ecosystems
IT Stalwarts
Source: IDC
has the IoT devices and .... network ... to connect the IoT world.
....IBM has the ability to become a leading IoT platform management player....
the IoT market is a key one to its parent ..... therefore HDS has to transform itself to run as a systems company and not as a storage company.
Start Outs
Source: F6S
1,258
2,116
2,559
752
IoT = 337
- People (10)
- Startups (205)
- Accelerators (38)
- Investors (1)
- Startup Events (65)
- Contests (17)
- Conferences (1)
Information Security
Source: GSMA
The Power of IoT
By TILIX
The Power of IoT
On 14 Nov 2016, Dr Neil Williams will be joining Ignite to run a break out session on The power of IoT. The session will cover strategy, applications, data & technology.
