INTRODUCTION TO SDR
March 2016
![](https://www.everplans.com/sites/default/files/blog-images/meetup-logo-750.jpg)
Software Defined Radio Israel
(CHEAP)
![](http://hugogiraudel.com/images/what-i-learnt-from-writing-a-book/book-meme.jpeg)
https://il.linkedin.com/in/raziele
![](https://scontent-cdg2-1.xx.fbcdn.net/hphotos-xap1/v/t1.0-9/11407205_10153442088550854_6976651106799397199_n.jpg?oh=ef3da212e25fd80172475f3a09e44bb5&oe=575602F6)
https://maayan4.wordpress.com
@raziel_e
![](https://www.seeklogo.net/wp-content/uploads/2015/09/twitter-icon-circle-logo.png)
![](http://organiser.qa/wp-content/uploads/2014/09/social-linkedin-128.png)
![](http://vectorlogofree.com/wp-content/uploads/2014/07/33619-wordpress-logo-of-a-letter-in-a-circle-icon-vector-icon-vector-eps.png)
- 9 years in wireless communication projects and SDR projects (high-end)
- 3 years experience with (cheap) SDR's
![](https://hallard.me/blog/wp-content/uploads/2013/08/nrf24L01-black.jpg)
![](http://www.prometec.net/wp-content/uploads/2014/11/BT-masterslave_2.jpg)
![](http://www.electrorobotech.electrogroups.org/wp-content/uploads/2014/06/315-rf-module.jpg)
![](http://www.robotshop.com/media/files/images/seeedstudio-125khz-rfid-module-uart-1-large.jpg)
![](http://img.dxcdn.com/productimages/sku_215144_3.jpg)
![](http://embedsoftdev.com/wp-content/uploads/2010/11/SUP500F-10.jpg)
![](http://www.mememaker.net/static/images/memes/4428427.jpg)
RADIO
The science (magic) of translating a message
to electromagnetic waves
and back
![](http://www.ni.com/cms/images/devzone/tut/image7742668132555702358.png)
![](https://churchofthecosmos.files.wordpress.com/2012/12/electromagnetic-spectrum.png)
So...what is a
software-defined radio?
"Radio in which some or all of the physical layer functions are software defined"
"Traditional" radio communication system
![](http://3.bp.blogspot.com/-AVnKcPL6Y-E/T_KQoWxBe2I/AAAAAAAAAgw/4sOIKkJHfGo/s1600/Transmitter-Receiver-Radio-Control-Schematic-Diagram.png)
![](https://upload.wikimedia.org/wikipedia/commons/thumb/2/22/SDR_et_WF.svg/1000px-SDR_et_WF.svg.png)
WHO\FOR WHAT?
- Learn radio!
- Make (awesome) wireless projects!
- Security researchers
- Academy research (e.g mobile networks)
- Rapid prototyping
![](http://s2.quickmeme.com/img/9a/9a2c0b29559ccc6e3e0d7d2eb5e6b1f235d01ba2ceac4b6c5b8cfcabb200f45d.jpg)
TYPICAL CONFIGURATION
- 150Khz - 6Ghz
- 8-16 BIT ADC, 2-60MSPS
- DR ~40dB, SENSITIVITY ~-90dBm
-
COMMERCIAL IF BANDS:
- WIFI
- WIMAX
- DVB-T (!)
- USB 2 (DONGLE \ MICRO-USB F)
Popular SDR's
![](http://www.mpact.fiu.edu/wp-content/uploads/2014/06/USRP-B200-e1403123103583.jpg)
USRP - BUS SERIES
~$800
![](http://2chie424y5ug2kfkkypuhcvwq2.wpengine.netdna-cdn.com/files/2014/09/R0002828-940x622.jpg)
~$350
![](https://rad1o.badge.events.ccc.de/_media/rad1o_highlighted.png?cache=&w=900&h=696&tok=b4d302)
Rad1o - free @ CCC
FunCube
150Khz - 1.9Ghz (with gap @ 240Mhz & 420Mhz
~$160
![](http://www.funcubedongle.com/wp-content/uploads/2010/11/P1000772acrop.jpg)
![](http://thmb.inkfrog.com/thumbn/noodlehed/tv28t_4.jpg=596)
![](http://3.bp.blogspot.com/-ldOGNqoEqwQ/T7NGK7QKUjI/AAAAAAAAAUA/ou8n_qsl5g8/s1600/1K1PCh.jpg)

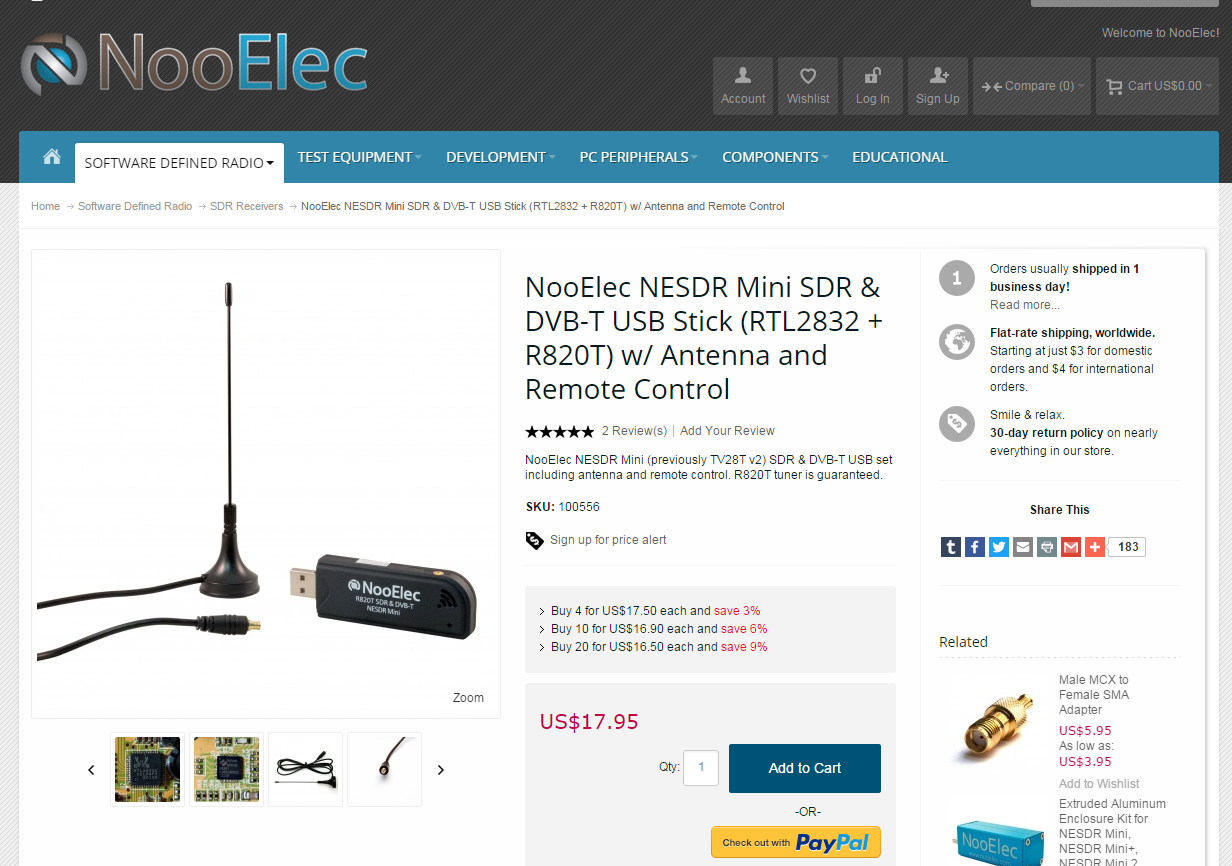

RTL-SDR
~$20
"DEDICATED SDRs"
![](https://greatscottgadgets.com/images/ubertooth-one.jpeg)
UBERTOOTH ONE
BLUETOOTH
![](https://greatscottgadgets.com/images/ys1.jpeg)
YARD STICK ONE
SUB GHZ
Toolchain
![](http://s2.quickmeme.com/img/5c/5ce864e20c15d9885e471534fd87cd4321ebf44457aa01928c083fcf6fa152b0.jpg)
FW\HW
RESEARCH
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2013/07/GNURADIO-RDSdata.jpg)
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2013/05/rtltcpsourceredhawk.png)
Text
REDHAWK
GNURADIO
Also, MATLAB, and programming languages (mostly PYTHON and C++)
GENERAL PURPOSE SCANNERS
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2014/02/gqrx.jpg)
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2014/11/rfanalyzer-500x333.jpg)
DEDICATED SOFTWARE
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2014/05/SeeDeR.png)
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2015/11/spektrum-500x313.png)
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2015/04/adsbox_screenshot-500x304.png)
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2014/02/screenshot.jpg)
SPEKTRUM
And the list goes on and on...
![](http://blog.pipetop.com/wp-content/uploads/2015/09/boring_3.png)
Cool Projects
GETTING SATELLITE IMAGES
METEOR-M2 WEATHER SATELLITE
QPSK @ 137Mhz
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2015/05/Real_time-500x300.jpg)
Passive Radar
2 Log-periodic antennas
Physical synchronization
![](https://hackadaycom.files.wordpress.com/2015/06/sdr-radar-front.png?w=507&h=370&crop=1)
Unintentional EM emissions
1.6-1.78 MHz
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2015/06/CPU_emissions-500x428.png)
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2015/06/untethered_setup-500x294.png)
![](http://www.tau.ac.il/~tromer/radioexp/n200-manykeys-EM-h500.png)
MONITORING SURVEILLANCE AIRCRAFT \ SPECIAL FORCES
ADS-B - 1090Mhz
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2015/06/fbiplane-500x326.png)
TRACKING FLIGHTS ON THE WORLD ECONOMIC FORUM
ADS-B - 1090Mhz
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2016/01/davos-helicopter-327x500.png)
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2016/01/wef_tools-403x500.jpg)
DRIVE TESTS
![](http://rtlsdrblog.rtlsdrblog.netdna-cdn.com/wp-content/uploads/2014/09/heatmap_setup-500x373.jpg)
![](http://cdn.meme.am/instances/500x/64925917.jpg)
JUST A FEW MORE WORDS...
AIRPROBE - Former GSM-Sniffer project
Goal is to build an air-interface analysis tool for the GSM (and possible later 3G) mobile phone standard
GR-GSM - packs AIRPROBE with some more goodies + more friendly interface
![](https://s3.amazonaws.com/media-p.slid.es/uploads/150163/images/2299546/i-see-what-you-did-there-and-i-like-it.jpg)

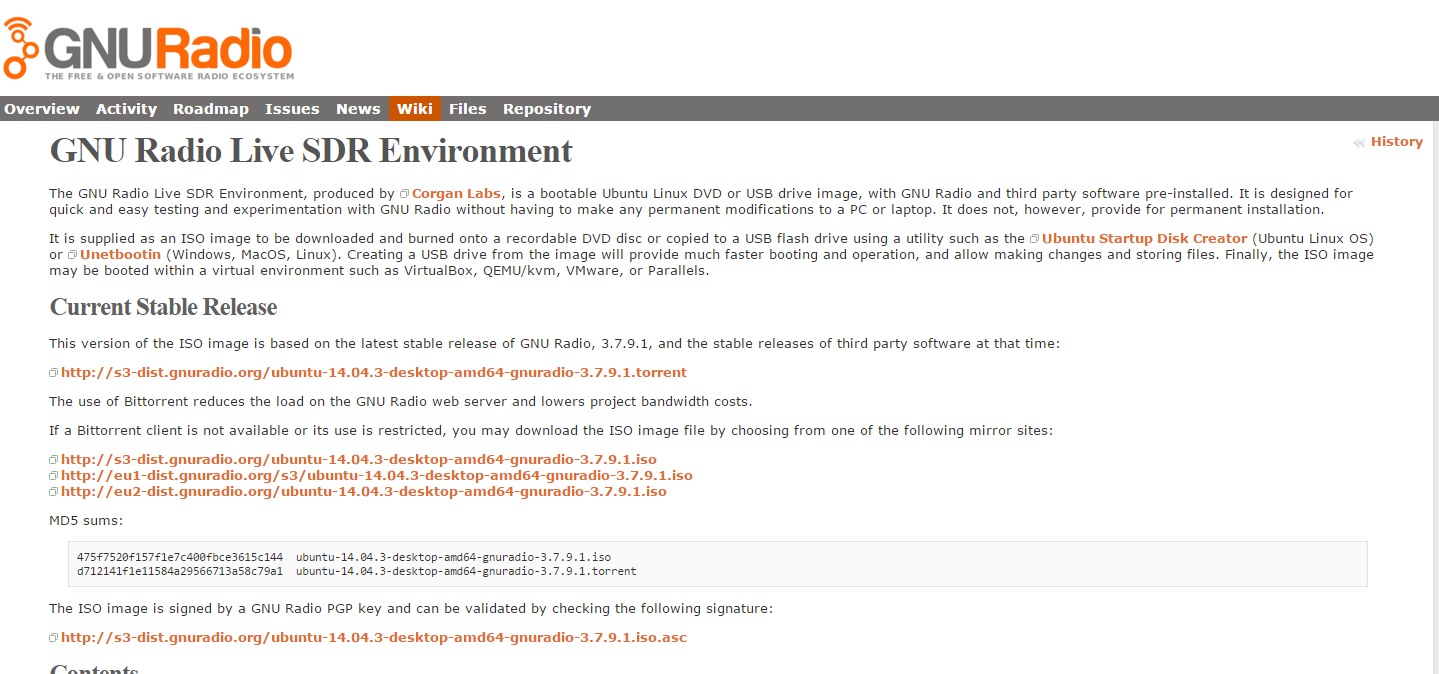

![](https://s3.amazonaws.com/media-p.slid.es/uploads/150163/images/2299553/vbox_logo2_gradient.png)
Also - Kali-Linux and Pentoo
OPEN DISCUSSION:
IDEAS FOR NEXT MEETINGS:
Theory sessions:
Complex modulation
Receiver architectures
Filters
Practical sessions
Starting a
Demonstrations
Project updates \ brainstorming
