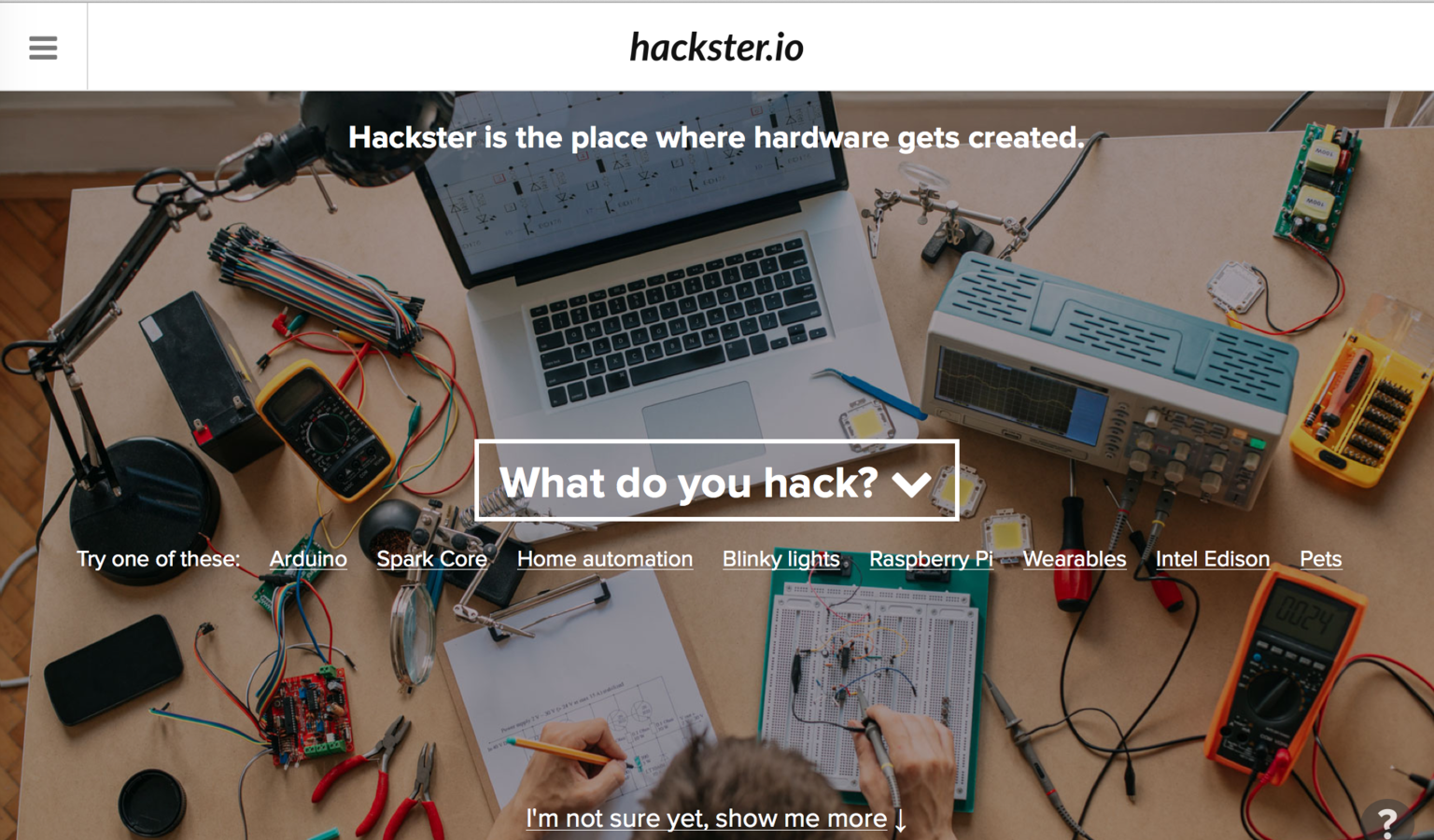

Hackster.io

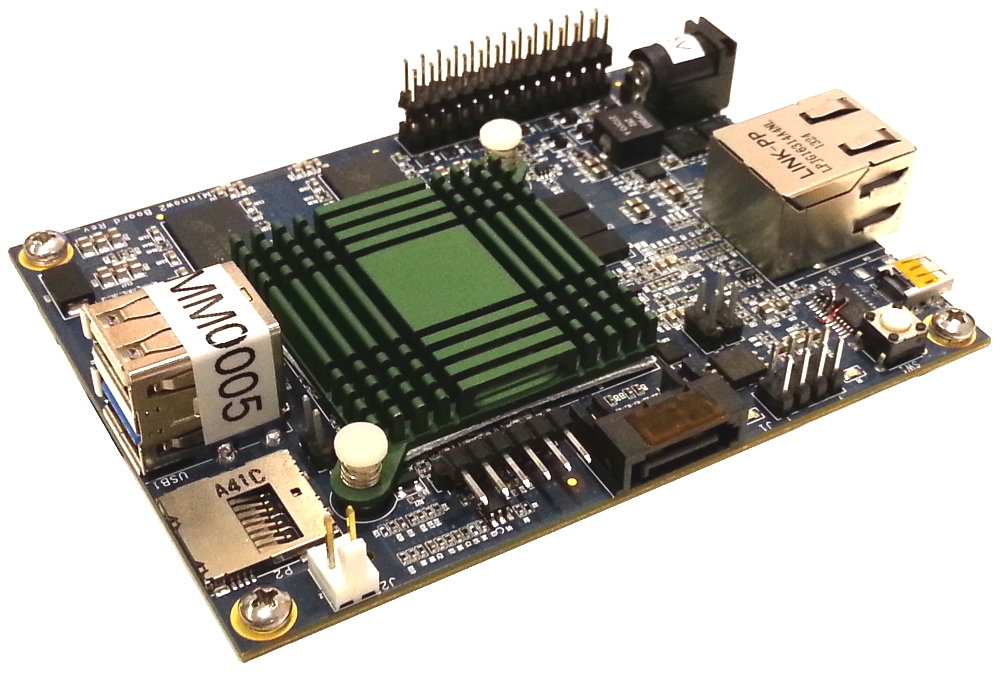

I will be doing a random drawing for a MinnowBoard Max!
Workshop agenda
- Assemble Edison
- Flash Edison
- Configure Edison
- Arduino Setup
- Build Maraca
assemble your edison
Snap your Edison to the breakout board, move the J9 jumper to the "top" position, attach the Arduino shield, plug in both Micro-USB cables
Workshop agenda
- Assemble Edison
- Flash Edison
- Configure Edison
- Arduino Setup
- Build Maraca
flashing your edison
Use the installer
Use the image on the USB / S3
Use the image on the USB / S3
Press "Down" to view videos of each flashing process.
All downloads are on the USB or in S3
Flashing on OSX
Partition using Disk Utility, copy the files to Edison, start a serial connection, , use login "root," do "reboot ota" and wait. Download the image here.
Flashing on Linux
Copy the files to Edison, start a serial connection, use login "root," do "reboot ota." Download the image here.
$ sudo apt-get install screen
$ sudo screen /dev/ttyUSB0 115200Flashing on Windows
Run the installer, select the "update image" option when it comes up. Download the Windows installer here.
Skip the Arduino Software install (uncheck the box).
Workshop agenda
- Assemble Edison
- Flash Edison
- Configure Edison
- Arduino Setup
- Build Maraca
Serial connections
Download PuTTy
Use "screen" utility
Use "screen" utility
Press "Down" to view videos showing how to establish serial connections on each OS.
serial connection on osx
Open terminal, type 'screen /dev/usbs' then hit Tab to autocomplete, add '115200 -L' and hit Enter twice at blank screen
serial connection on Linux
$ sudo apt-get install screen
$ sudo screen /dev/ttyUSB0 115200Install 'screen,' use "/dev/ttyUSB0 115200" and hit Enter twice at blank screen
serial connection on Windows
Download PuTTy, select 'serial,' set baud rate to 115200, use Device Manager to find your COM port, hit Enter twice at blank screen
Run "configure edison"
$ configure_edison --setupInitiate a Serial connection, use default login "root"
Name your Edison, set a password, get your Edison online!
Gotchas
- Some USB cables don't allow serial data
- PC and Edison must be on the same network
- Network must have no HTML login page
- Check if you are online using "ping www.google.com"
- Make sure both Micro-USB are plugged in
Workshop agenda
- Assemble Edison
- Flash Edison
- Configure Edison
- Arduino Setup
- Build Maraca
Run the blink sketch
Press "Down" to view Arduino instructions for each OS.
We will be blinking the Pin 13 LED shown above.
blink on OSX
- Install the Intel Arduino IDE
- Select your Board
- Select your Port
- File > Examples > Basics > Blink
- Upload
On 1.6.3: Use the Board Manager to install Intel Edison support!
blink on Linux
- Install the 64-bit Intel Arduino IDE (or use the 32-bit )
- Select your Board
- Select your Port
- File > Examples > Basics > Blink
- Upload
On 1.6.3: Use the Board Manager to install Intel Edison support!
blink on Windows
- Install the Intel Arduino IDE
- Select your Board
- Select your COM port
- File > Examples > Basics > Blink
- Upload
On 1.6.3: Use the Board Manager to install Intel Edison support!
Workshop agenda
- Assemble Edison
- Flash Edison
- Configure Edison
- Arduino Setup
- Build Maraca
assemble maraca
Plug the sensors into the following: D3: LED, D6: Buzzer, D7: Button, Any I2C: Accelerometer. Jumper 9 should be set to "Top," the voltage switch should be set to 3.3v
Deploy Maraca code
Download the Maraca project, update the keys.cpp file, import the three included libraries, deploy the code to your Intel Edison. Click "Down" for more AWS instructions.
Generate a keypair
Browse to EC2 > Key Pairs, Create a keypair and name it whatever you like
Important: Select US West (Oregon) from the upper-right hand drop-down
Launch aWS Stack on cloud formation
Open "Cloud Formation," Use the new keypair, import the provided JSON template.
Your key information will appear under the "Output" tab after setup.
Important: Select US West (Oregon) from the upper-right hand drop-down
Hackster.io
- Post your project on Hackster.io
- Tweet the link @rexstjohn
- Use hashtag #intelmaker
