(Possibly) The simplest hexaphonic synthesizer in 22 components

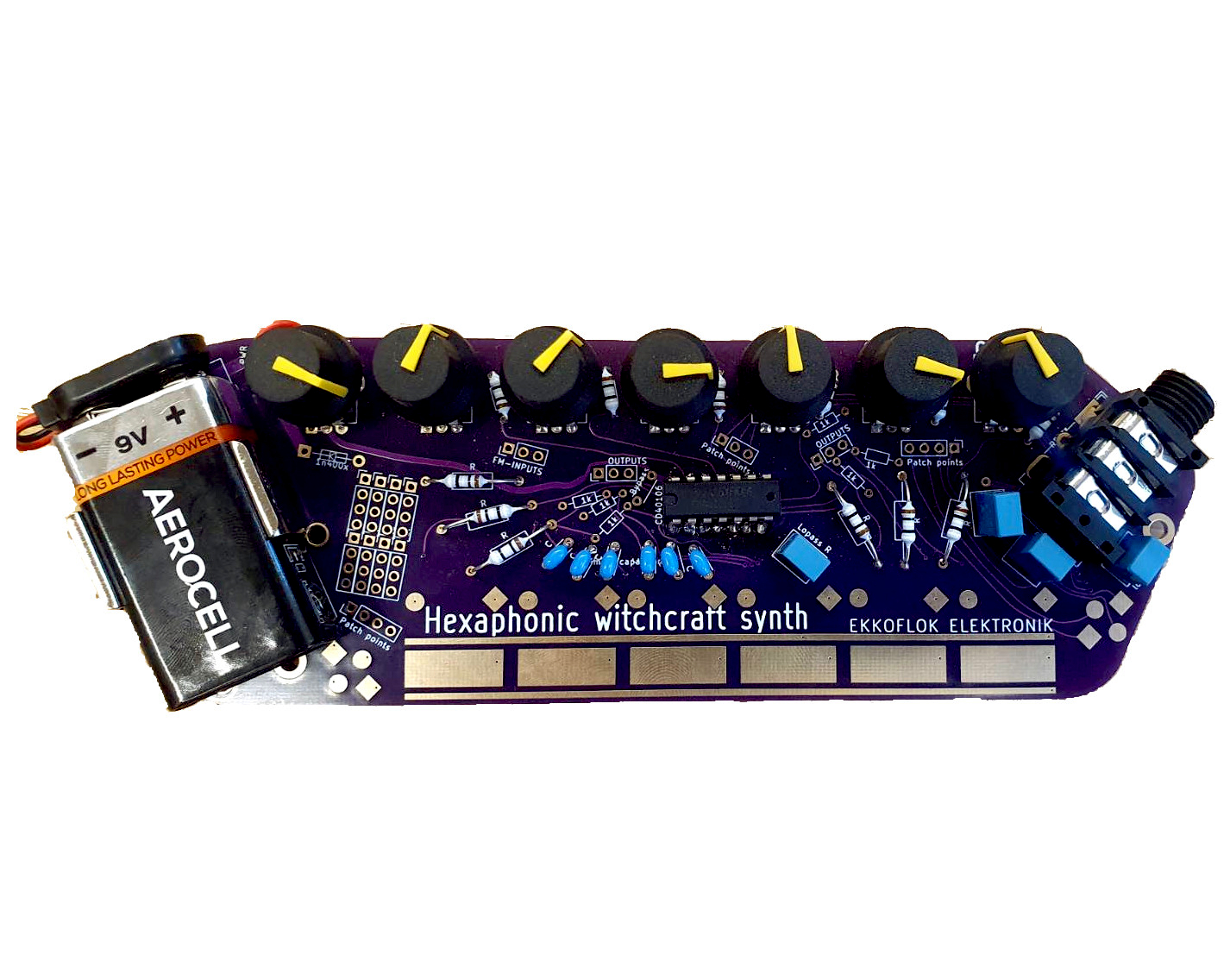

Enter Hexaphon
https://ekkoflok.dk/hex.php

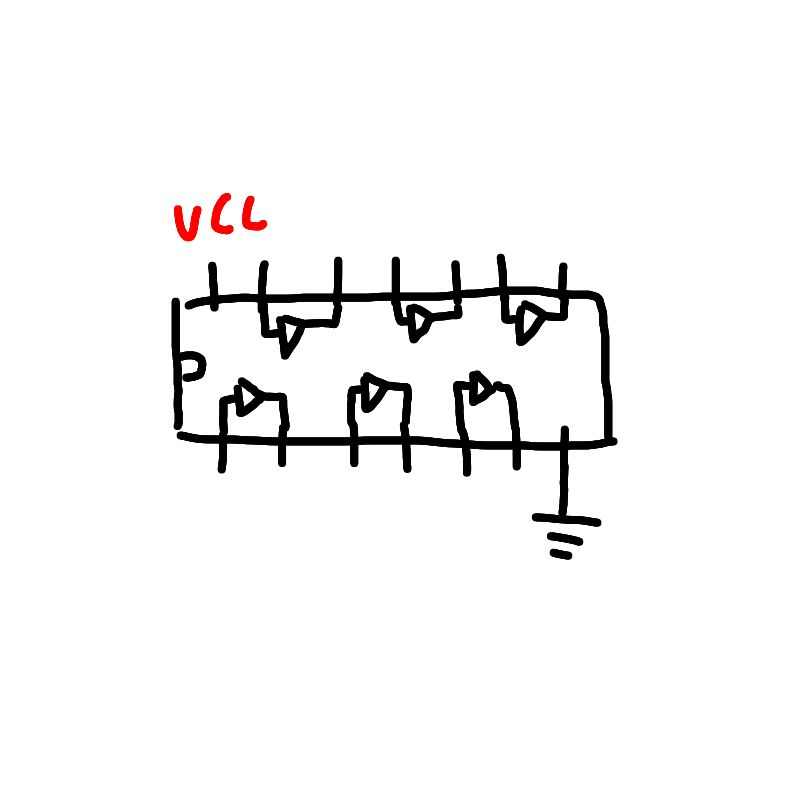

CD40106/74C14

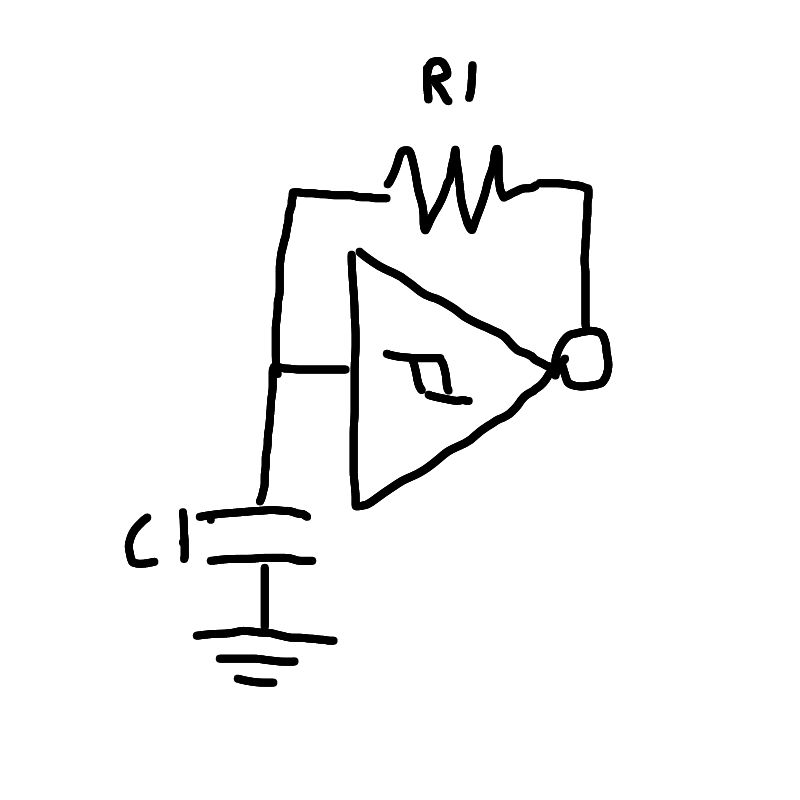

F(hz) =
1.2
R * C

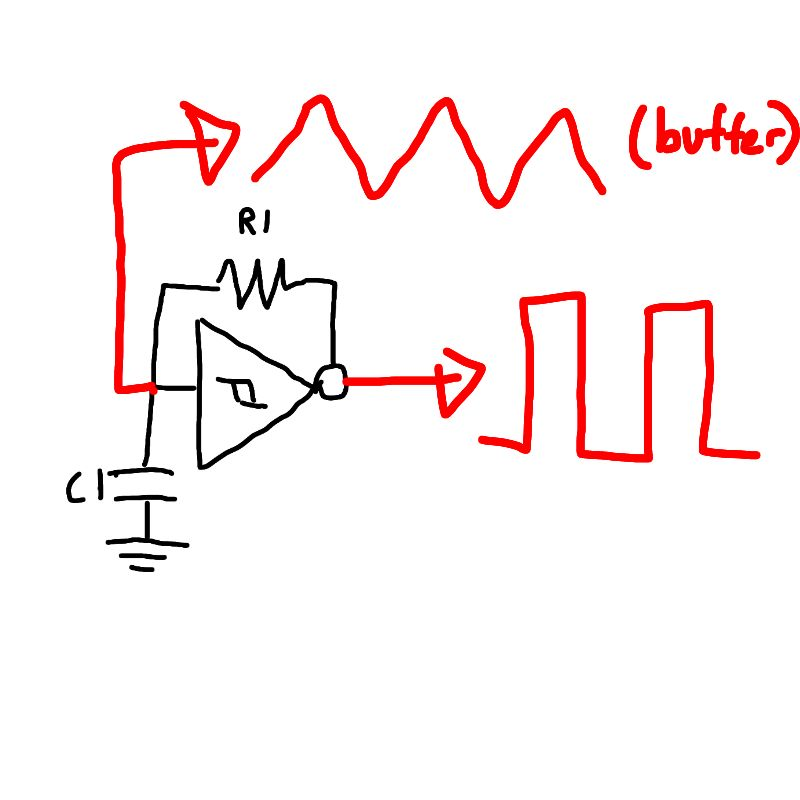

Low-pass filter

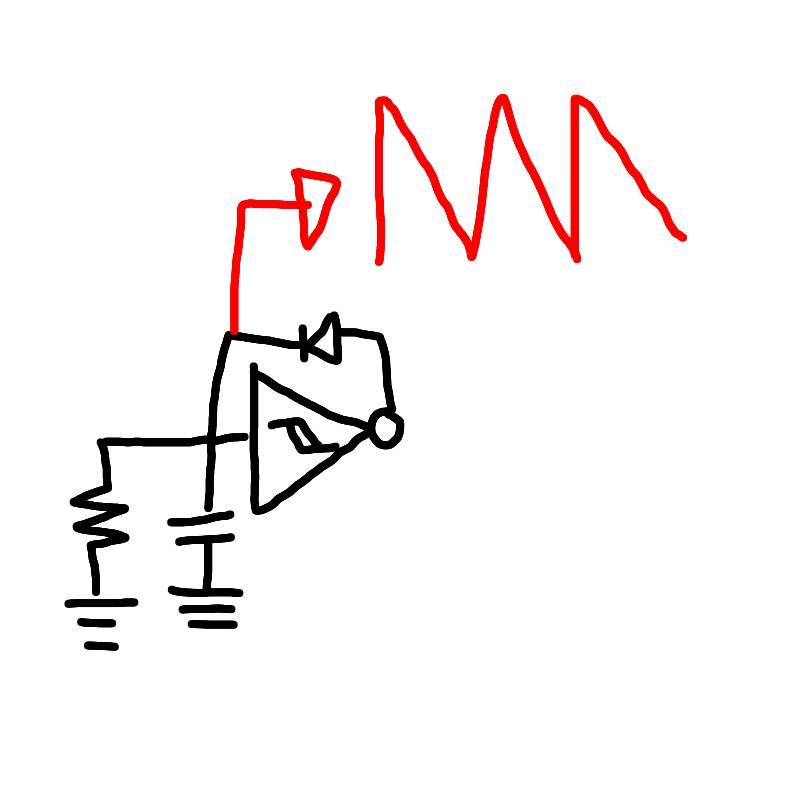

Starve
🤔
Buzzy output (Grounding issue?)
Volume control (voltage divider)
First note too high pitch
Pitch affected by input voltage

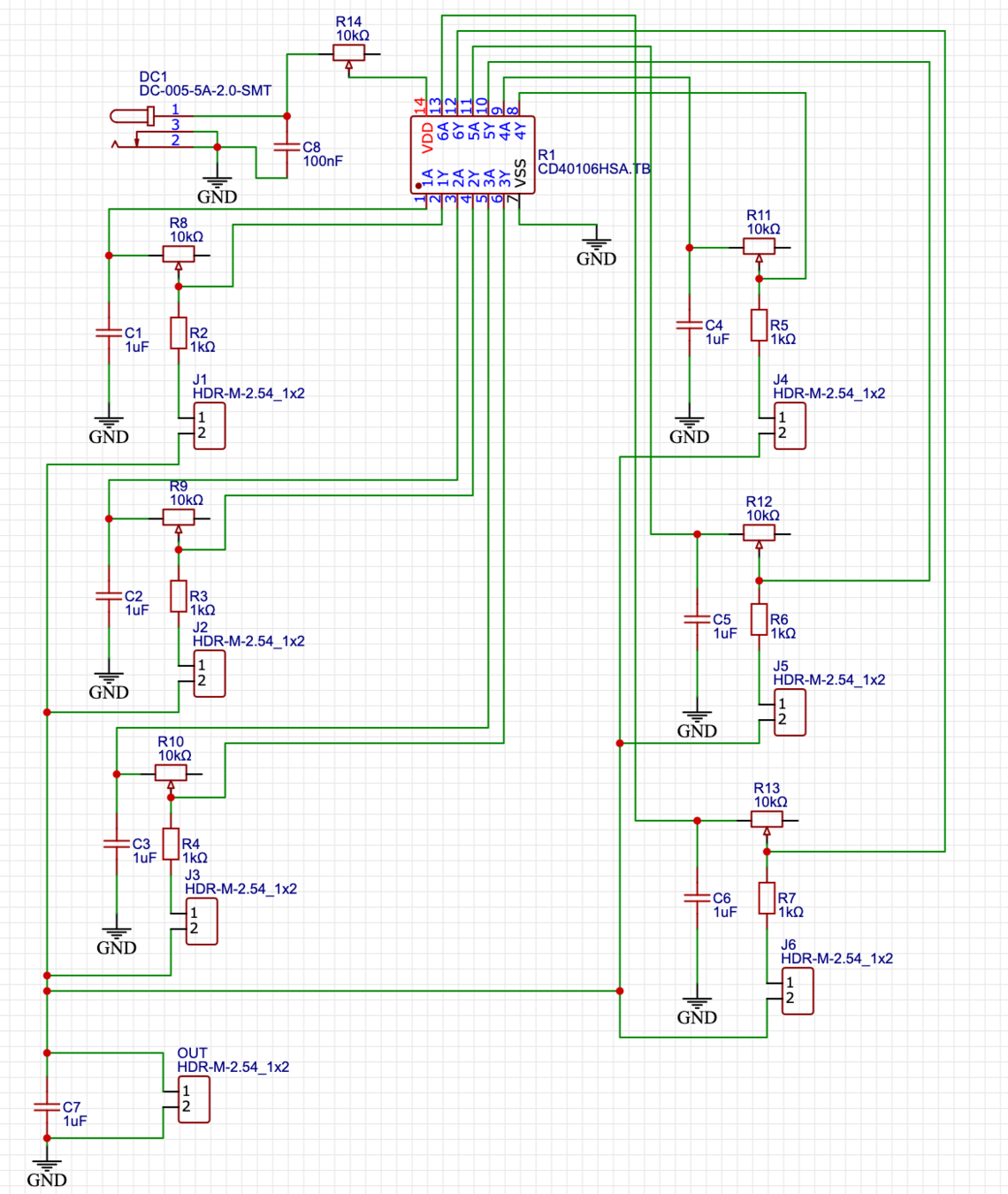

VCO
References
World's easiest oscillator! Introducing the CD40106
:
https://www.youtube.com/watch?v=P4SwaI09Zxc
DIY VCO Part 1: The analog oscillator core anyone can build
:
https://www.youtube.com/watch?v=QBatvo8bCa4
Smolysynth
By tzyinc
Made with Slides.com

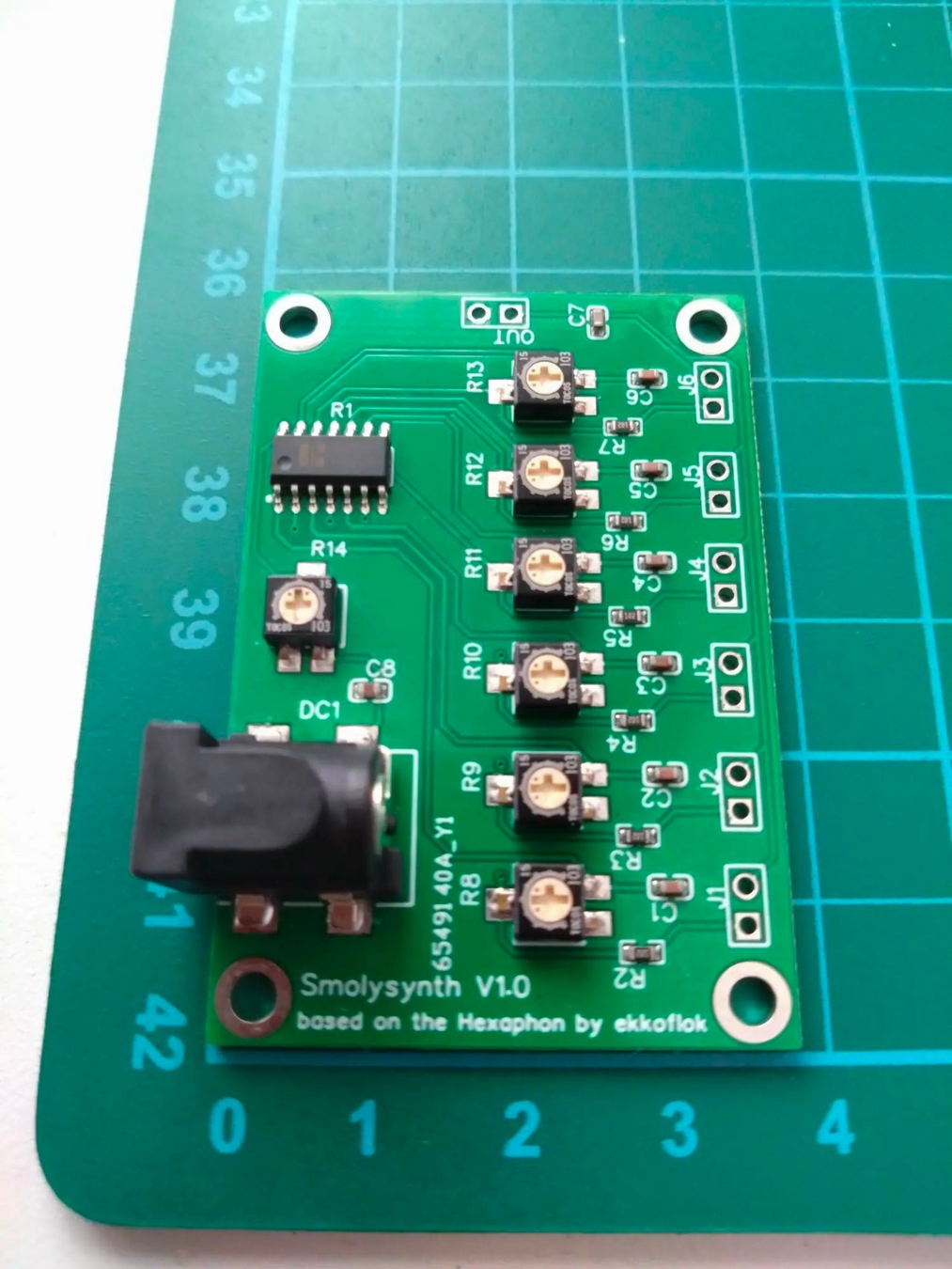

Smolysynth
159
tzyinc
tenzhiyang.com
