COSCUP 2026

Peter

2026/08/08

How to integrate Python, Groovy, PostgreSQL and NiFi to complete hardware factors (metrics) collection?

Slide

About me

Peter, GitHub
Active open source contributor
Speaker
- COSCUP, MOPCON and so on
An Senior Engineer
- DevOps
- Back-end
- System Architecture Researching
- Web Application Security
- PHP, Python and JavaScript
Industrial Technology Research Institute
- Smart Grid Technology (2017~2021)
Institute for Information Industry
- Database, Data platform architecture (2021~)

Outlines

What's NiFi? How to use NiFi to solve problems?
Hardware Factors (Metrics): Overview & Applications
Programmable NiFi Processors
Use Case 1: NiFi, PostgreSQL & Python Pipeline
Use Case 2: NiFi, PostgreSQL & Groovy Pipeline
Discussion & Improvements for use cases
Using the AI-Enablement for NiFi development
Discussion & Summary

What's NiFi？

Apache NiFi is developed by NSA
Since 2014, it's the Apache Top-Level Project
It's a Data Pipeline or Data Flow Control service

How to use NiFi to solve problems?

ETL (Extract, Transform, Load)
Connect sources and Targets
Transform Data Formats
Control flow states

Outlines

What's NiFi? How to use NiFi to solve problems?
Hardware Factors (Metrics): Overview & Applications
Programmable NiFi Processors
Use Case 1: NiFi, PostgreSQL & Python Pipeline
Use Case 2: NiFi, PostgreSQL & Groovy Pipeline
Discussion & Improvements for use cases
Using the AI-Enablement for NiFi development
Discussion & Summary

Hardware Factors (Metrics): Overview & Applications

Hardware Metrics
Operating System, NAS or VM
- e.g. CPU, Memory, Network (Ping), Disk
Virtual Machine State (API)
- VMware, Tanzu
Backup State (API)
- NetBackup
Enterprise Storage Solutions (API)
- HPE Storage

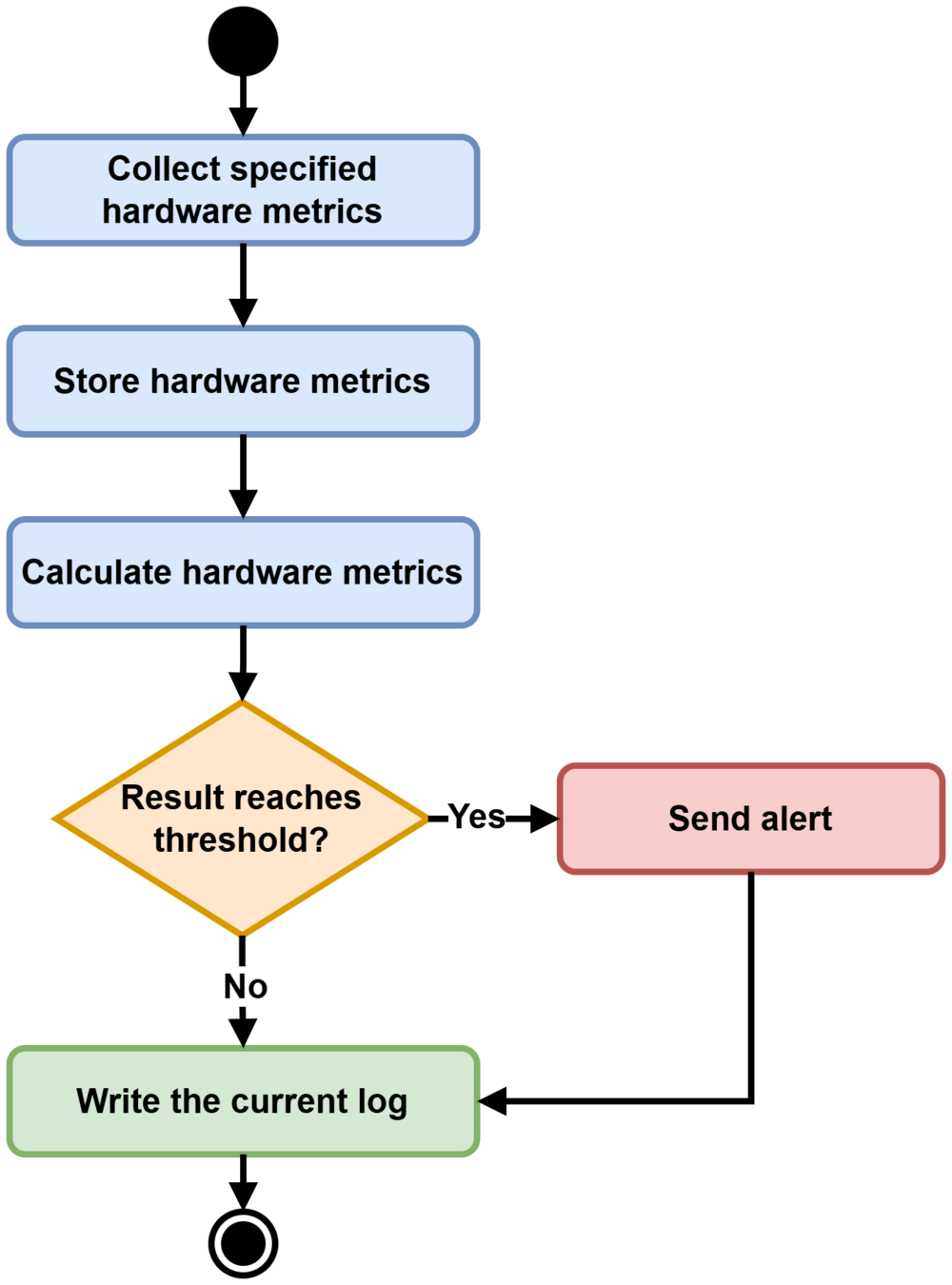

Collecting Hardware Metrics Process

Outlines

What's NiFi? How to use NiFi to solve problems?
Hardware Factors (Metrics): Overview & Applications
Programmable NiFi Processors
Use Case 1: NiFi, PostgreSQL & Python Pipeline
Use Case 2: NiFi, PostgreSQL & Groovy Pipeline
Discussion & Improvements for use cases
Using the AI-Enablement for NiFi development
Discussion & Summary

Programmable NiFi Processors

Using customized program to develop the NiFi processor
- e.g. Python processor, Groovy or customized NiFi processor
When to use the programmable NiFi processor?
- Tricky requirements. E.g. Using ICMP ping to collect network metric.

Processor Name	Pros	Cons
ExecuteStreamCommand	Universal programming language	Performance
ExecuteGroovyScript	Easy and running script in JVM	Version Control Issue
Python Processor (NiFi 2.0+)	Completed CPython Support	Customized NiFi Image

NiFi Python Processor Setup Example

Customized NiFi Image
Check nifi.properties

FROM apache/nifi:2.8.0

USER root
RUN apt-get update && \
    apt-get -y install iputils-ping python3 python3-pip && \
    PIP_BREAK_SYSTEM_PACKAGES=1 pip3 install pymongo pandas

USER nifi

#####################
# Python Extensions #
#####################
# Uncomment in order to enable Python Extensions.
nifi.python.command=python3
nifi.python.framework.source.directory=./python/framework
nifi.python.extensions.source.directory.default=/opt/nifi/nifi-current/python_extensions
nifi.python.working.directory=./work/python
nifi.python.max.processes=100
nifi.python.max.processes.per.extension.type=1

NiFi Python Processor Setup Example

Create the PingHost.py (FlowFileSource V.S. FlowFileTransform)
- https://alasdairb.com/posts/building-a-nifi-processor-in-python
docker compose cp PingHost.py nifi:/opt/nifi/nifi-current/python_extensions


import re
import json
import platform
import subprocess
from datetime import datetime, timezone

from nifiapi.flowfiletransform import FlowFileTransform, FlowFileTransformResult
from nifiapi.properties import PropertyDescriptor, StandardValidators, ExpressionLanguageScope


class PingHost(FlowFileTransform):
    # ↓↓↓ 關鍵:必須是 FlowFileTransform,不能是 FlowFileSource ↓↓↓
    class Java:
        implements = ['org.apache.nifi.python.processor.FlowFileTransform']

    class ProcessorDetails:
        version = '0.0.2-SNAPSHOT'
        description = '讀取 FlowFile 屬性中的 IP 與 ping 次數,執行 ping 後將結果以 JSON 輸出。'
        tags = ['ping', 'network', 'icmp', 'monitoring', 'python']
        dependencies = []
........

NiFi Python Processor Setup Example

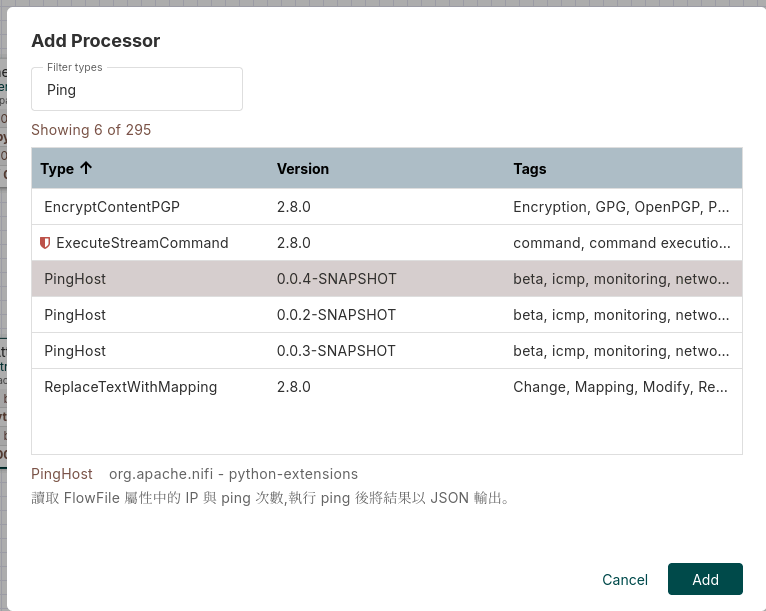

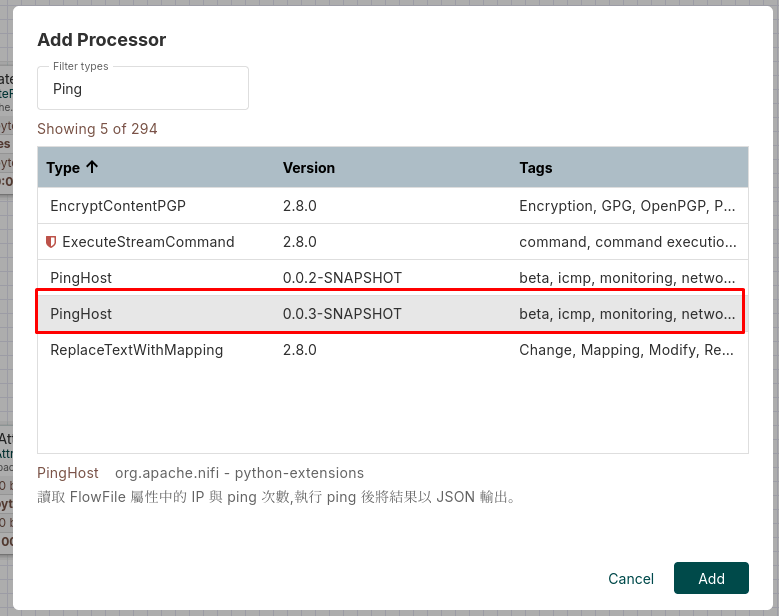

How to update the PingHost.py?
Overwrite the PingHost.py
- docker compose cp PingHost.py nifi:/opt/nifi/nifi-current/python_extensions
- docker compose exec nifi ls /opt/nifi/nifi-current/work/python/extensions/PingHost/
After waiting for 30~60 seconds,
- NiFi will update and load new Python Processor under runtime

NiFi Python Processor Setup Example

How to troubleshoot the PingHost.py Processor?
- 'Processor' is invalid because initializing runtime environment for the Processor.
- docker compose exec nifi cat /opt/nifi/nifi-current/logs/nifi-app.log | grep PingHost -A5

File "/opt/nifi/nifi-current/python_extensions/PingHost.py", line 33, in __init__
    name='Ping Count',
TypeError: FlowFileTransform.__init__() got an unexpected keyword argument 'jvm'
2026-08-06 16:00:36,020 ERROR [Initialize Python Processor d799e116-019f-1000-ffff-ffff89e658e6 (PingHost)] o.a.n.py4j.StandardPythonProcessorBridge Failed to load code for Python Processor d799e116-019f-1000-ffff-ffff89e658e6 (PingHost). Will try again in 600000 millis
py4j.Py4JException: An exception was raised by the Python Proxy. Return Message: Traceback (most recent call last):
  File "/opt/nifi/nifi-current/python/framework/py4j/java_gateway.py", line 2506, in _call_proxy
    return_value = getattr(self.pool[obj_id], method)(*params)
                   ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/opt/nifi/nifi-current/./python/framework/Controller.py", line 72, in createProcessor

Use Case 1 about NiFi Data Pipeline

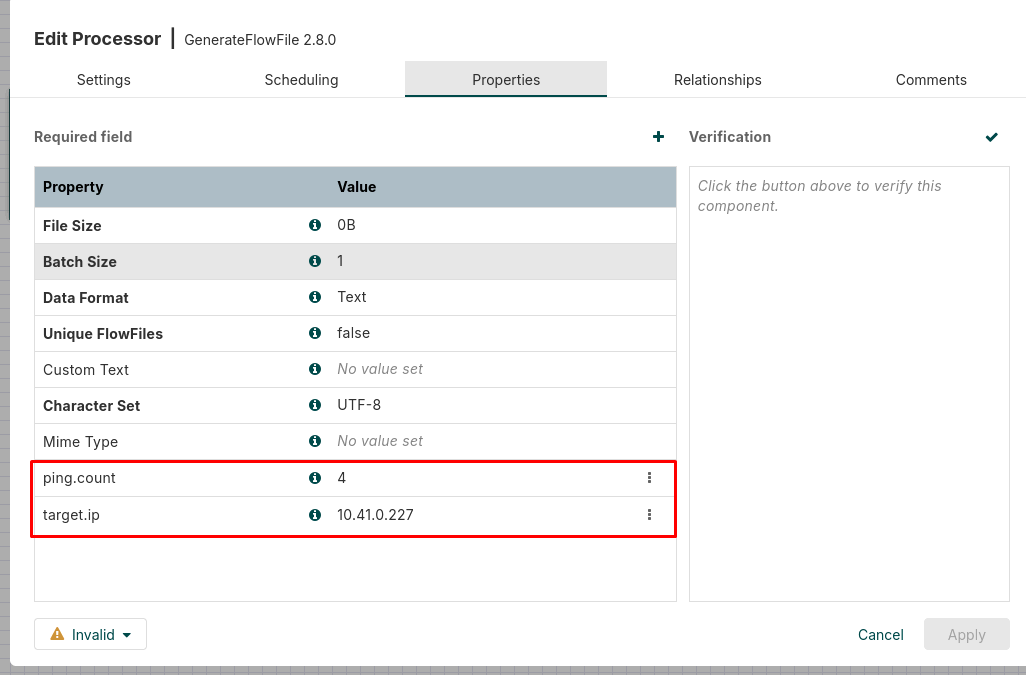

GenerateFlowFile

Use Case 1 about NiFi Data Pipeline

PingHost 0.05-SNAPSHOT

Use Case 1 about NiFi Data Pipeline

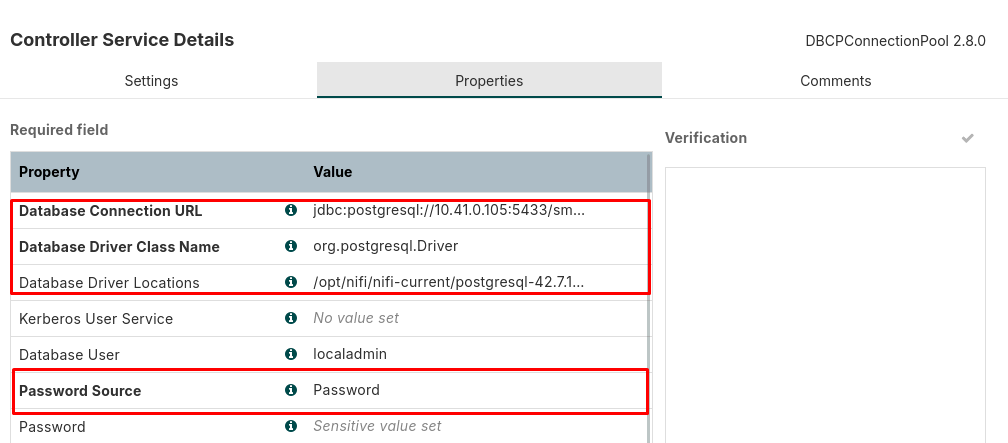

PutDatabaseRecord (1/2)
- docker compose cp postgresql-42.7.13.jar nifi:/opt/nifi/nifi-current/
- Configuring Controller Service
  - Database Driver Class Name: org.postgresql.Driver
  - jdbc:postgresql://<host>:<port>/<database_name>
  - Database Driver Locations

CREATE TABLE ping_results (
    id                   BIGSERIAL     PRIMARY KEY,
    target               VARCHAR(255)  NOT NULL,
    reachable            BOOLEAN       NOT NULL,
    packet_loss_percent  NUMERIC(5,2),
    rtt_min_ms           NUMERIC(10,3),
    rtt_avg_ms           NUMERIC(10,3),
    rtt_max_ms           NUMERIC(10,3),
    ping_count           INTEGER,
    checked_at           TIMESTAMPTZ
);

CREATE INDEX idx_ping_results_target      ON ping_results (target);
CREATE INDEX idx_ping_results_checked_at  ON ping_results (checked_at);

Use Case 1 about NiFi Data Pipeline

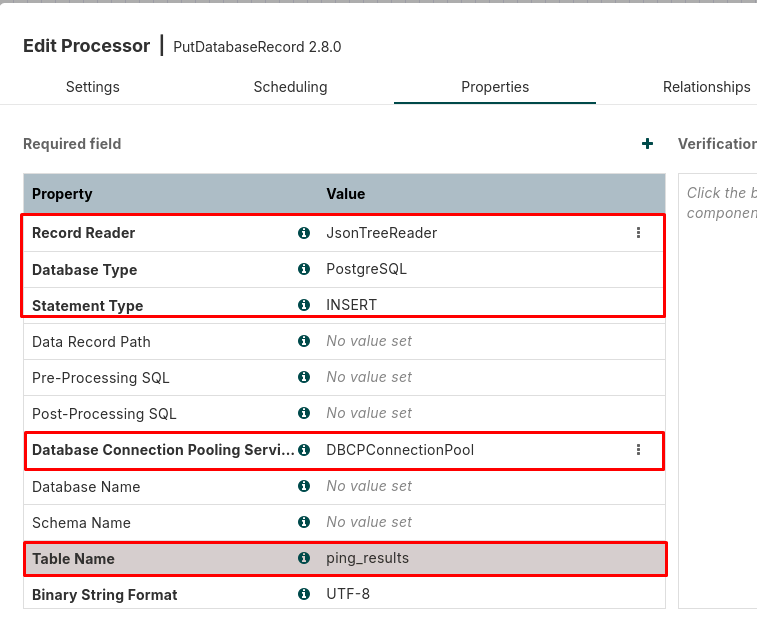

PutDatabaseRecord (2/2)
- Recorder Reader, DatabaseType, StatementType, Specific Controller and Table Name
- Enabling JsonTreeReader Service and Database Connection Pooling Service

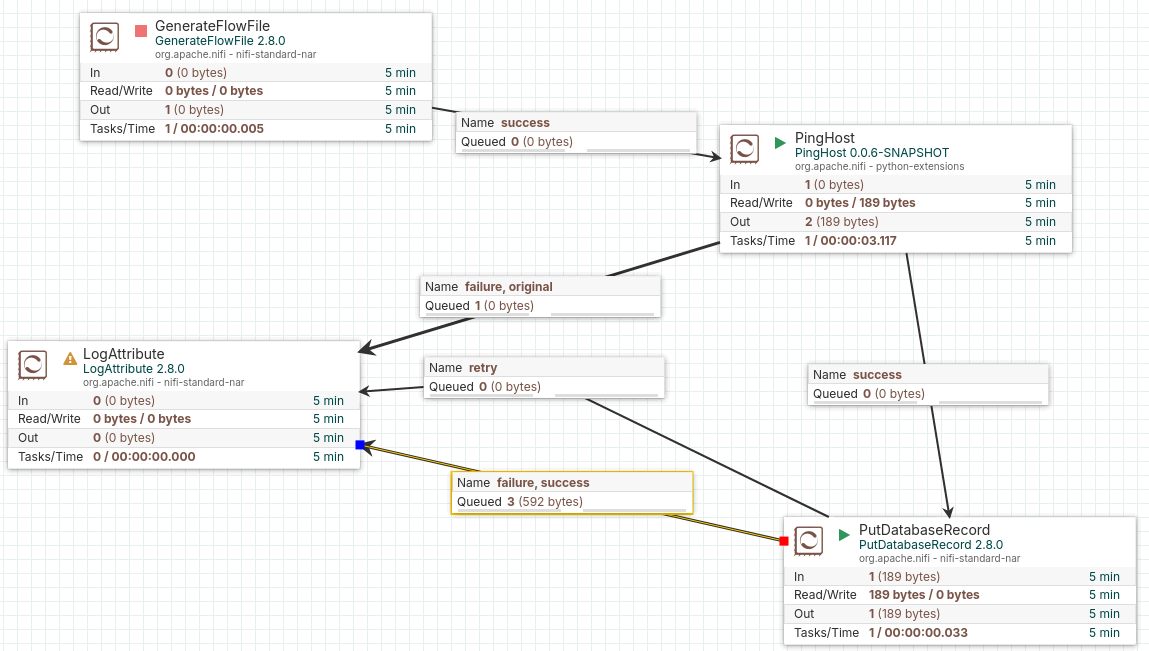

Use Case 1 about NiFi Data Pipeline

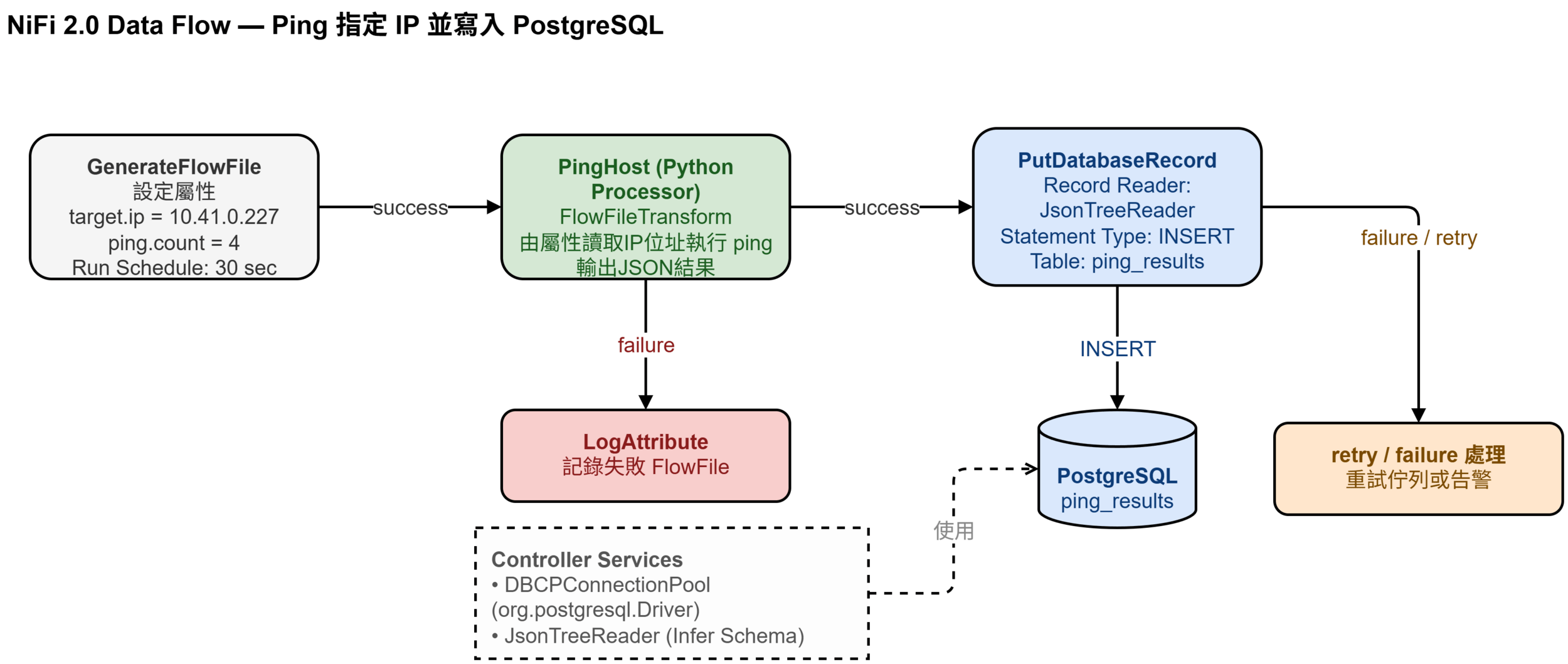

Final NiFi Data Pipeline

Use Case 1 about NiFi Data Pipeline

Final NiFi Data Pipeline (Run Once)

Use Case 2 about NiFi Data Pipeline

Difference
- Replace the PingHost Processor with ExecuteGroovyScript or ExecuteScript
PingHost.groovy
ExecuteScript Processor Setting (Prerequisite)
- docker compose cp PingHost.groovy nifi:/opt/nifi/nifi-current

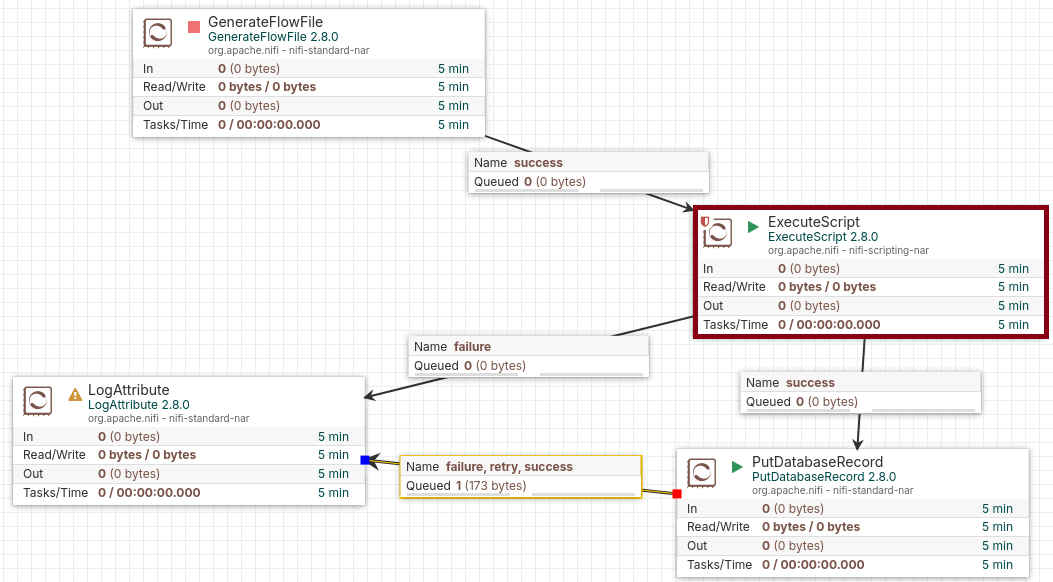

Use Case 2 about NiFi Data Pipeline

Final NiFi Data Pipeline

Use Case 2 about NiFi Data Pipeline

Final NiFi Data Pipeline (Run Once)

Discussion & Improvements for use cases

Processor Name	Pros	Cons
ExecuteGroovyScript	Easy and running script in JVM	Version Control Issue
Python Processor (NiFi 2.0+)	Completed CPython Support	High Trouble Shooting

Discussion for Active and Passive

Using the InvokeHTTP to retrieve data firstly.
Using the ConsumeAMQP, ConsumeMQTT or ConsumeKafka to retrieve data firstly.

Retrieving Data Type	Pros	Cons
Active (polling or schedule)	Polling and schedule	Scaling and CPU usage
Passive (event-driven, IoT)	Throughput and low latency	Mainatining the Broker

Outlines

What's NiFi? How to use NiFi to solve problems?
Hardware Factors (Metrics): Overview & Applications
Programmable NiFi Processors
Use Case 1: NiFi, PostgreSQL & Python Pipeline
Use Case 2: NiFi, PostgreSQL & Groovy Pipeline
Discussion & Improvements for use cases
Using the AI-Enablement for NiFi development
Discussion & Summary

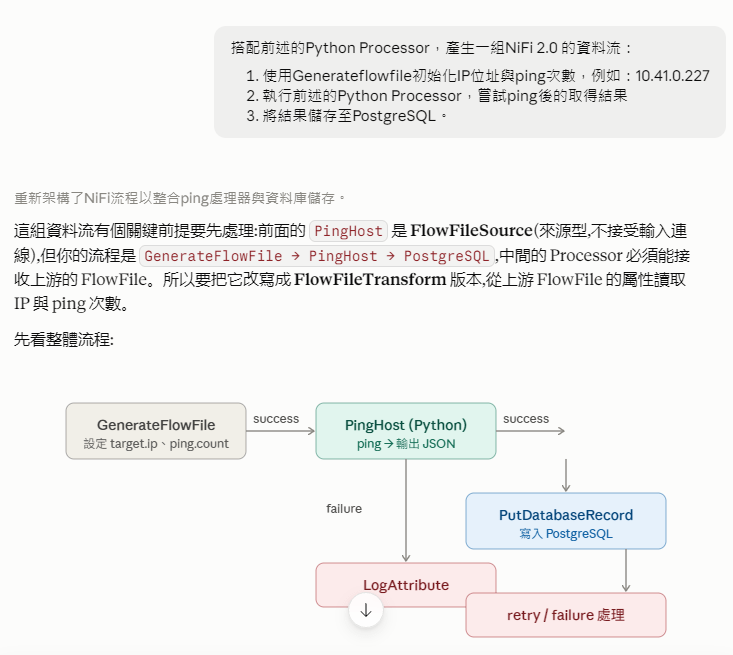

Using the AI-Enablement for NiFi development

It's easy to do this!

Using the Claude, Gemini or ChatGPT via the web browser to send the prompt
- 使用Generateflowfile初始化IP位址與ping次數，例如：10.41.0.227
- 執行前述的Python Processor，嘗試ping後的取得結果
- 將結果儲存至PostgreSQL
Using the Claude example
- https://claude.ai/share/bedb0785-eec2-4154-8adb-52053b5ece2f
Advanced: Using the Claude Desktop or Antigravity
- Modify/Create the NiFi Datapipelines automatically.

Outlines

What's NiFi? How to use NiFi to solve problems?
Hardware Factors (Metrics): Overview & Applications
Programmable NiFi Processors
Use Case 1: NiFi, PostgreSQL & Python Pipeline
Use Case 2: NiFi, PostgreSQL & Groovy Pipeline
Discussion & Improvements for use cases
Using the AI-Enablement for NiFi development
Discussion & Summary

Discussion & Summary

Use Cases about NiFi Data Pipelines
- What about calculating hardware metrics and send alert?
  - Are these processes suitable for integration into a NiFi data pipelines?
  - It's up to complex logic or process
Do we need to develop the Collecting Data Service with NiFi?
- It's up to the requirements or scenarios.
- It's up to the collecting data mechanism or process.
When to use the NiFi?
- It should consider using the NiFi to develop IoT Architecture to collect sensor data.
- The routine data collecting progress.
- The routine and event-driven data collecting progress.
