Amazon Elastic Kubernetes Service (Amazon EKS) - a managed service that you can use to run Kubernetes on AWS without needing to install, operate, and maintain your own Kubernetes control plane or nodes.

AWS EKS Setup

Amazon Virtual Private Cloud (Amazon VPC) is a service that lets you launch AWS resources in a logically isolated virtual network that you define.

Setup

AWS CLI version 2 installation instructions:

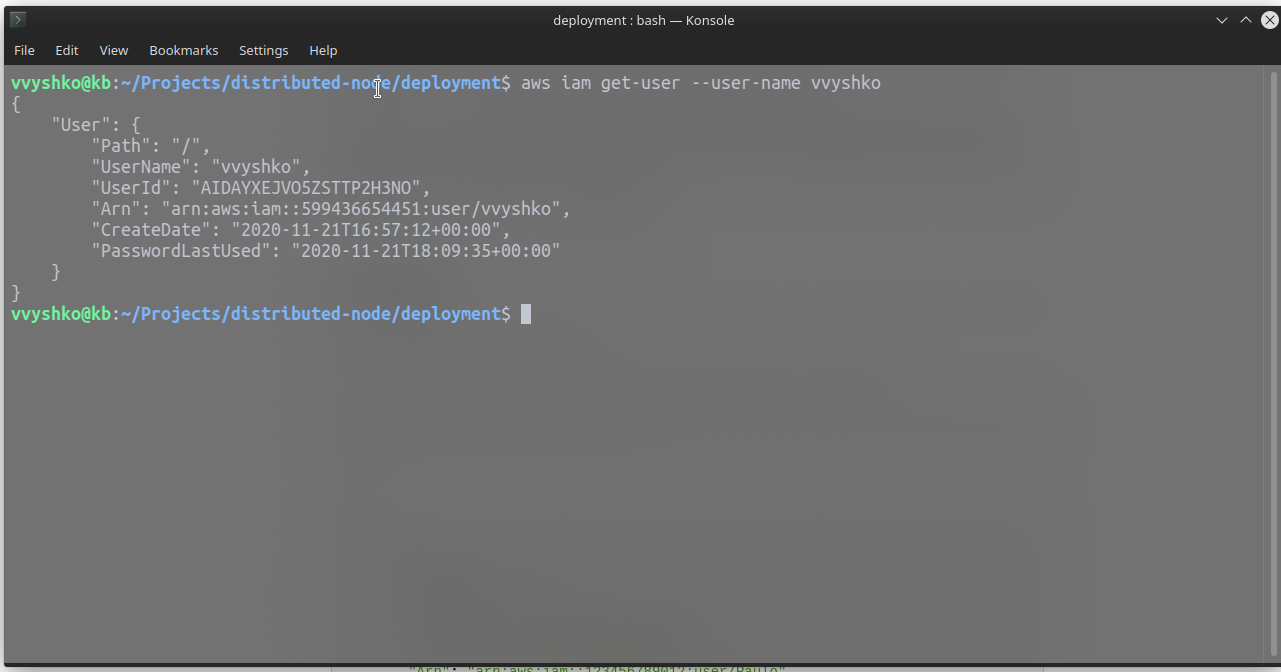

Test aws cli

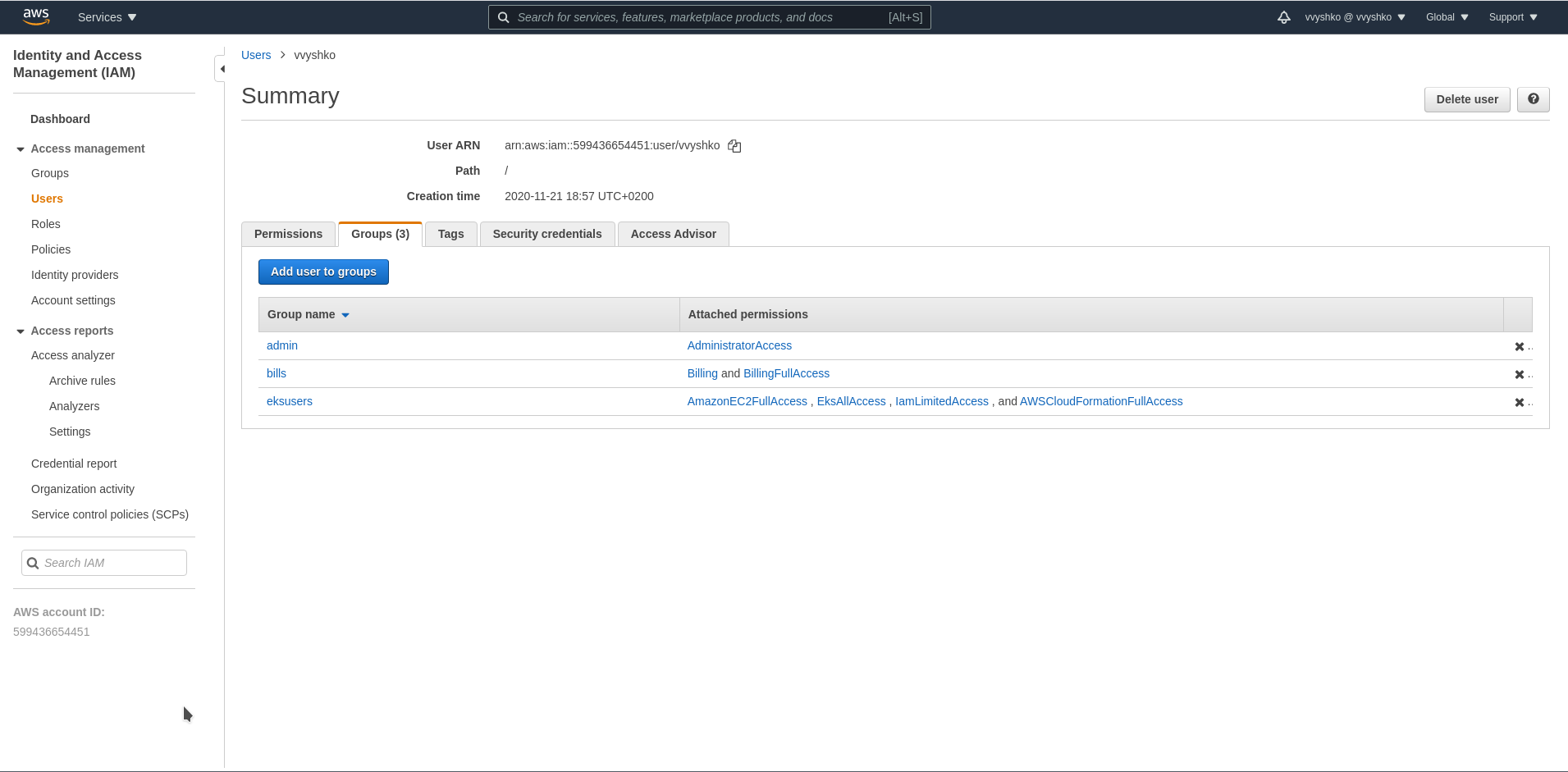

Don't forget to add AmazonEC2FullAccess , EksAllAccess , IamLimitedAccess , and AWSCloudFormationFullAccess to your EKS user

User EKS permissions

Setup eksctl

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig

metadata:
  name: basic-cluster
  region: eu-north-1

nodeGroups:
  - name: ng-1
    instanceType: m5.large
    desiredCapacity: 10
    volumeSize: 80
    ssh:
      allow: true # will use ~/.ssh/id_rsa.pub as the default ssh key
  - name: ng-2
    instanceType: m5.xlarge
    desiredCapacity: 2
    volumeSize: 100
    ssh:
      publicKeyPath: ~/.ssh/ec2_id_rsa.pub

Cluster example configuration

eksctl create cluster -f file.yaml

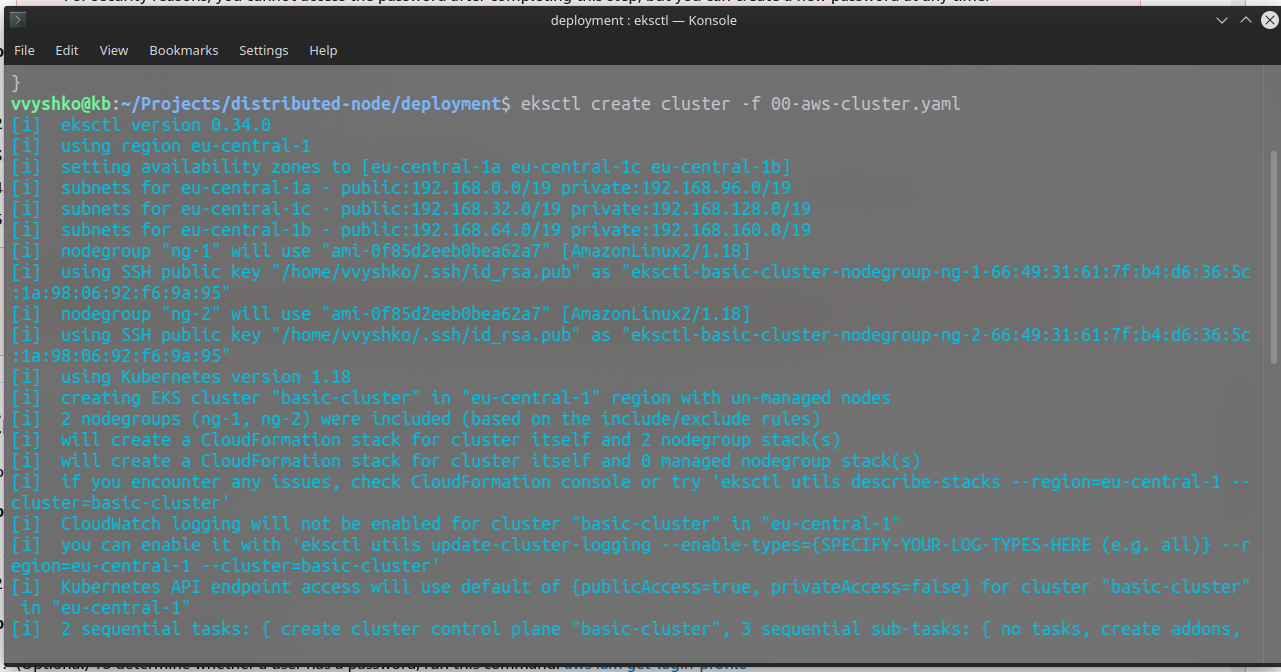

Now lets create a cluster

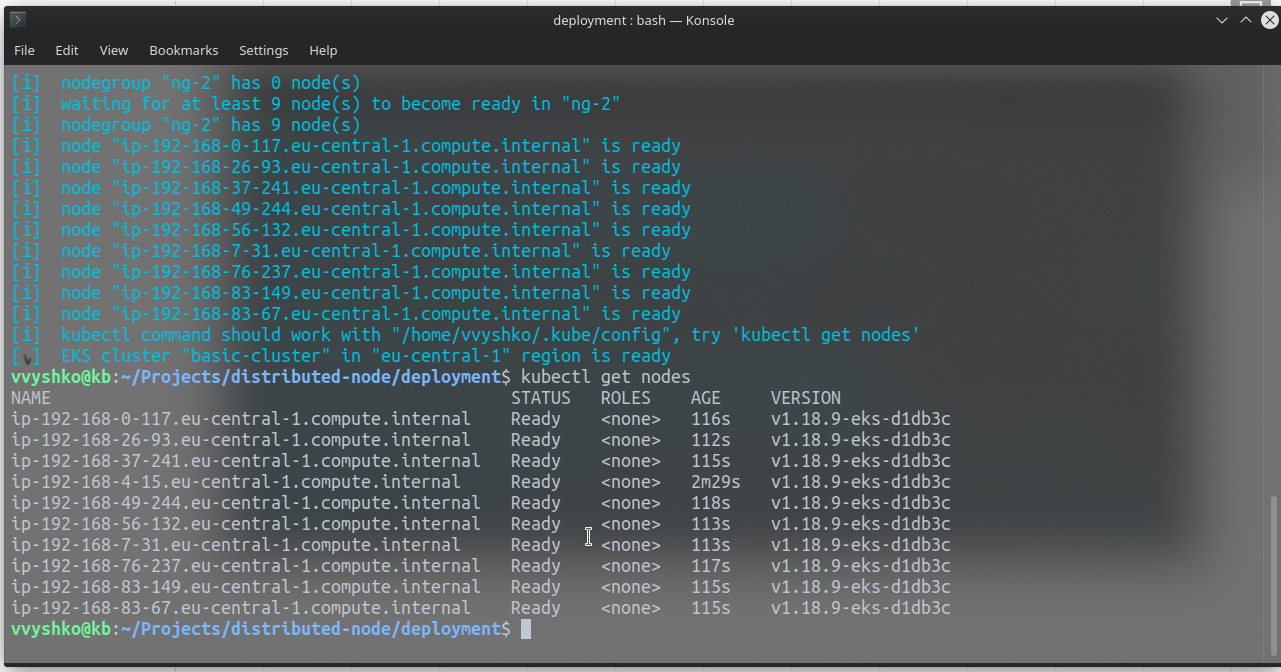

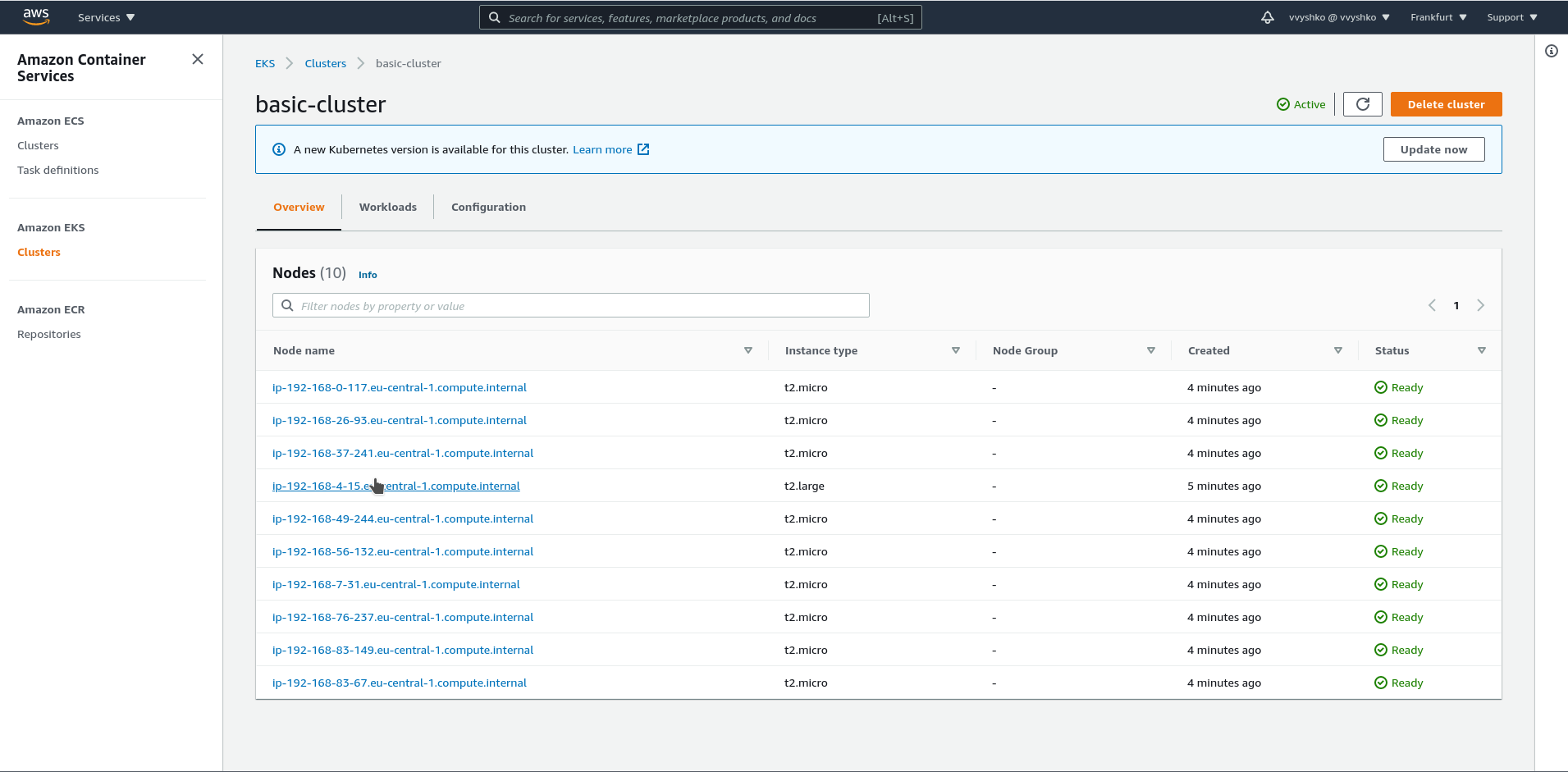

Execute it and wait ~20 minutes

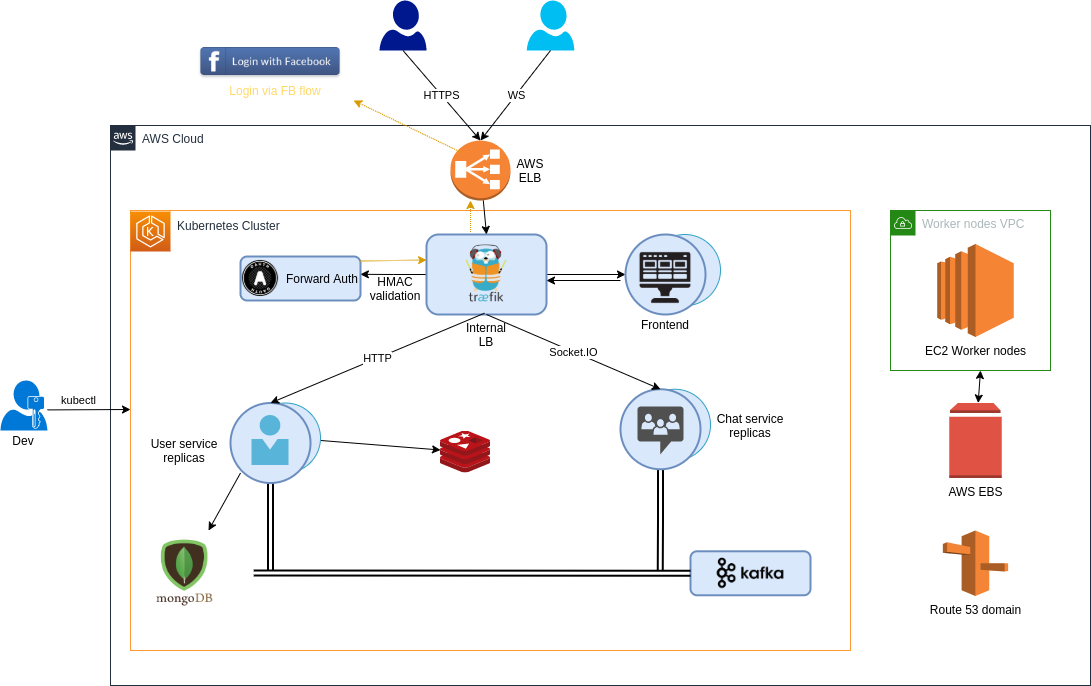

Deploy chat

#!/bin/bash

# Create namespace for kafka
 kubectl create ns kafka

# Setup helm to be able to use bitnami charts
 helm repo add bitnami https://charts.bitnami.com/bitnami

#Basic mongo
 helm install my-mongo bitnami/mongodb

# Redis with 0 slaves to save resources
 helm install my-redis --set cluster.slaveCount=0 bitnami/redis

#Kafka
 helm install my-kafka --namespace kafka -f 07-kafka-config.yaml bitnami/kafka

# Chat + Users API + Client
 kubectl apply -f 01-user-service.yaml
 kubectl apply -f 02-chat-service.yaml
 kubectl apply -f 03-chat-app.yaml

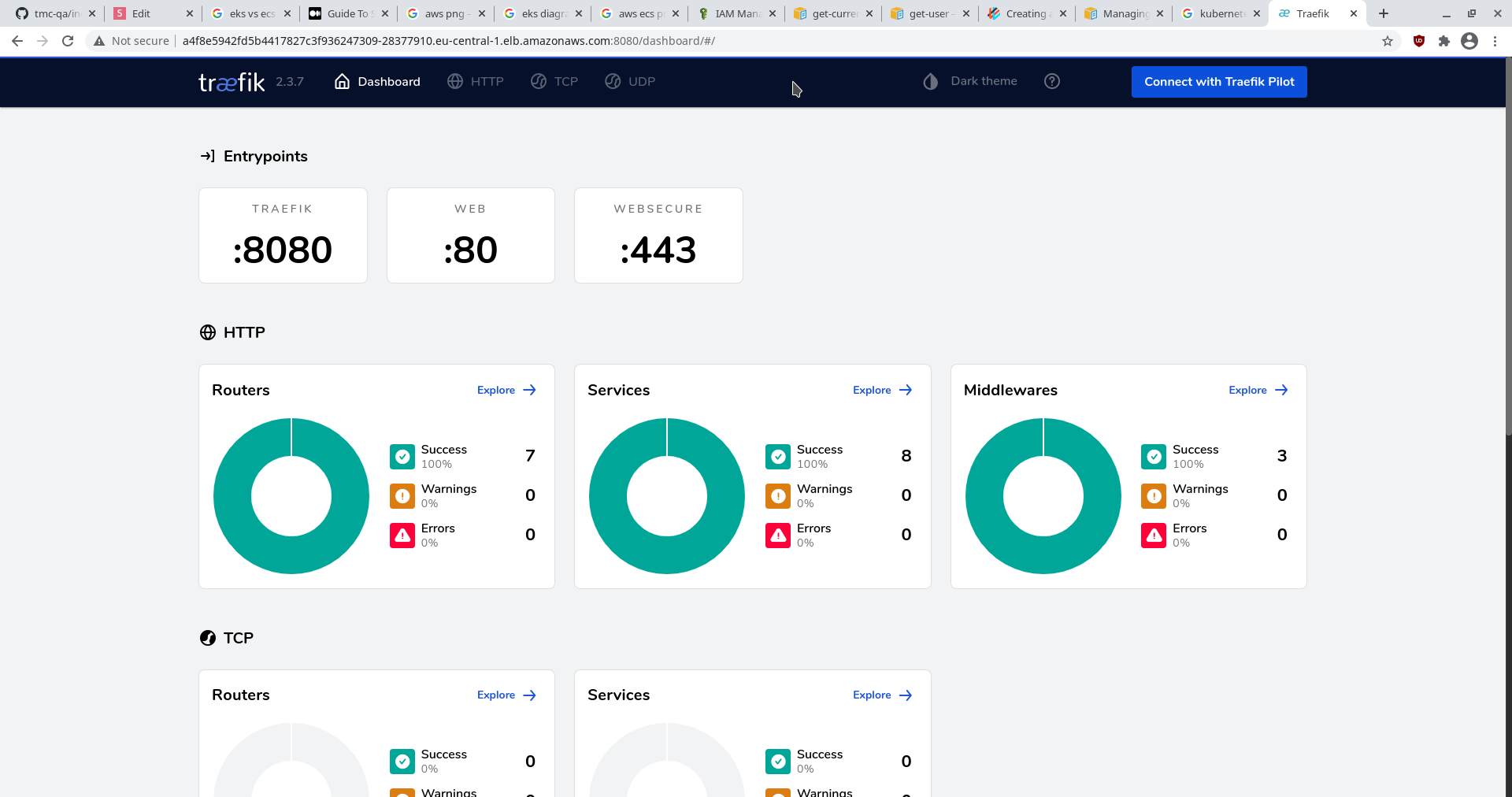

# Traefik
 kubectl apply -f 04-traefik-rbac.yaml
 kubectl apply -f 05-traefik-deployment.yaml
 kubectl apply -f 06-traefik-ingress-routes.yaml

# Facebook oauth servcie
 kubectl apply -f 08-auth-middleware.yaml

Execute following script
